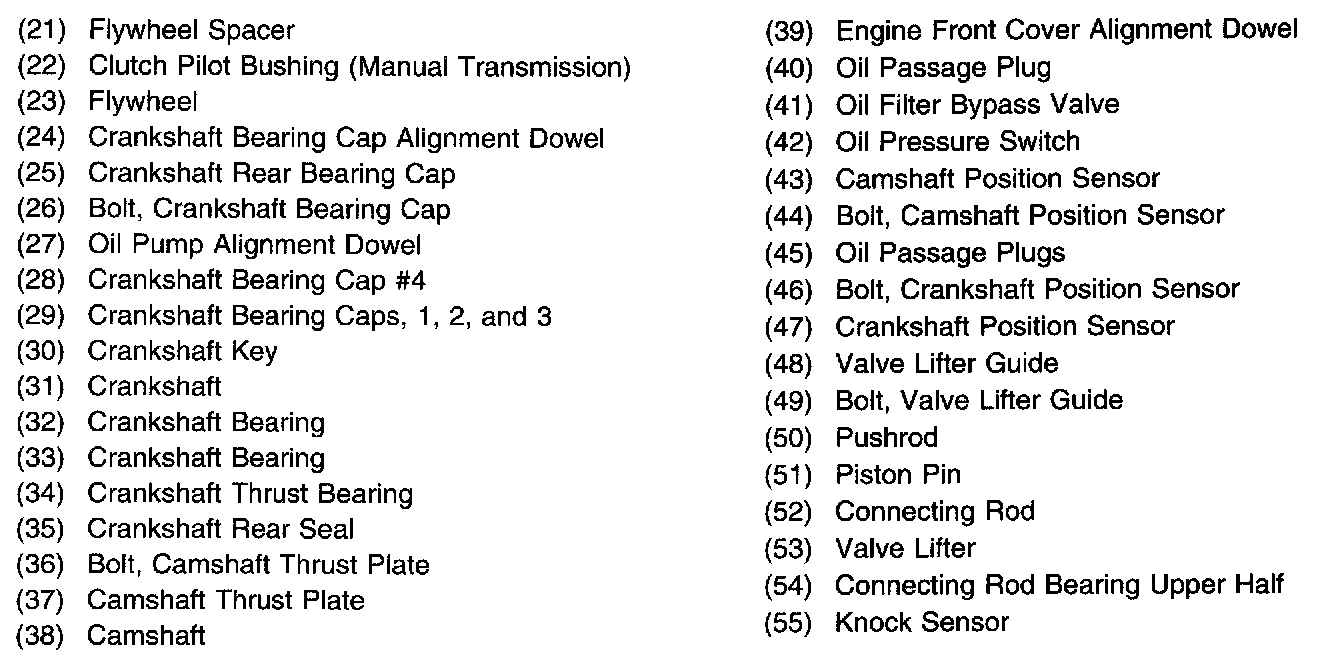

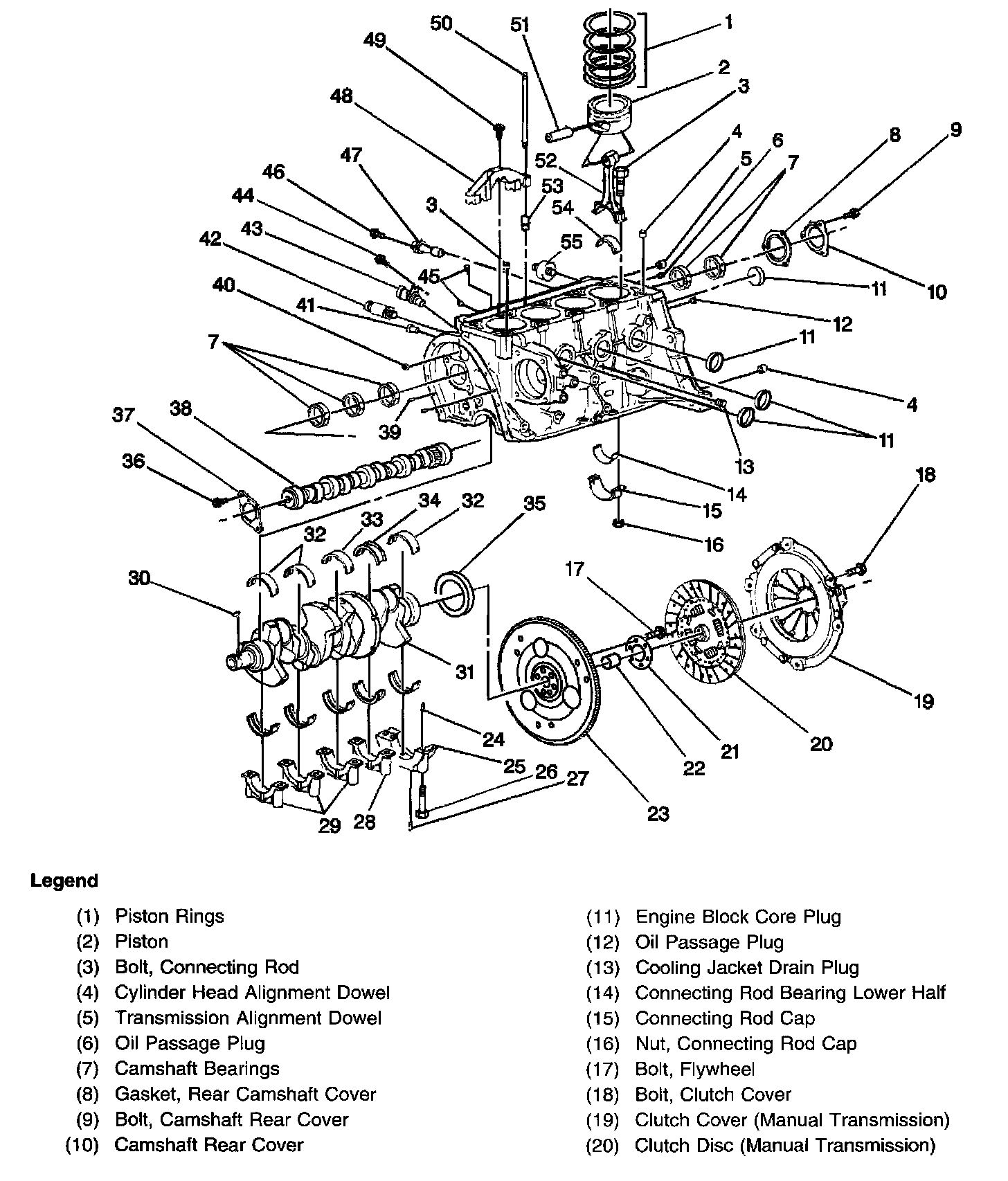

Cylinder Block and Crankshaft Components

Cylinder Block And Crankshaft Components





Part 1 of 2





Part 2 of 2
