Chevy Express G2500, Van Cargo Extended, 6.5 F
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Battery
>>
Specifications
>>
Battery Usage
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Battery Usage

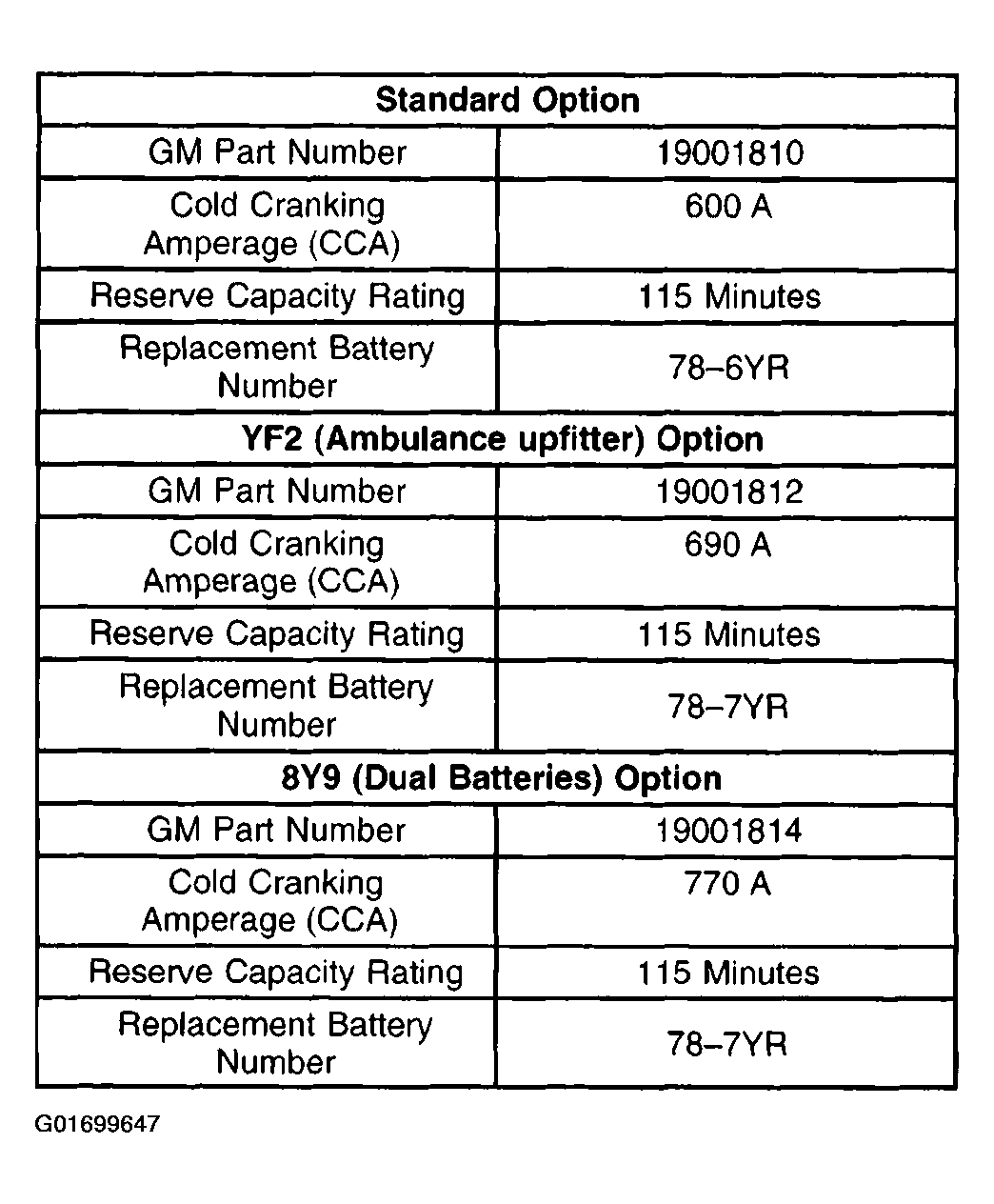

Fig 1: Battery Usage
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
