Chevy Express G2500, Van Cargo Extended, 6.5 F
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Component Locator
>>
Power Steering Pump Disassembled View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Steering Pump Disassembled View

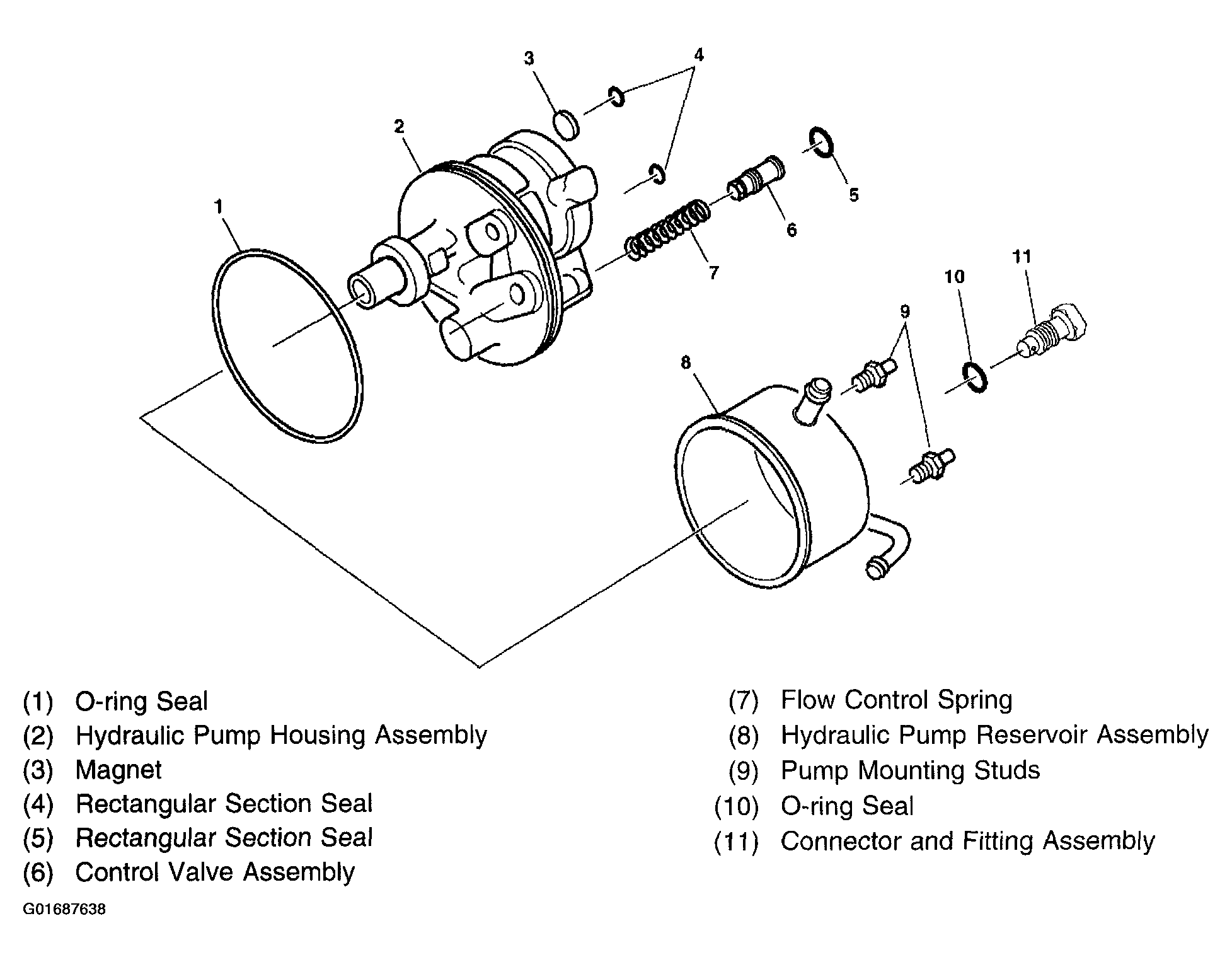

Fig 1: Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
