Removal Procedure

WARNING: Refer to BATTERY DISCONNECT CAUTION.
  1. Disconnect the negative battery cable. Refer to Battery Tray Replacement .
  2. Disconnect the positive battery cable.

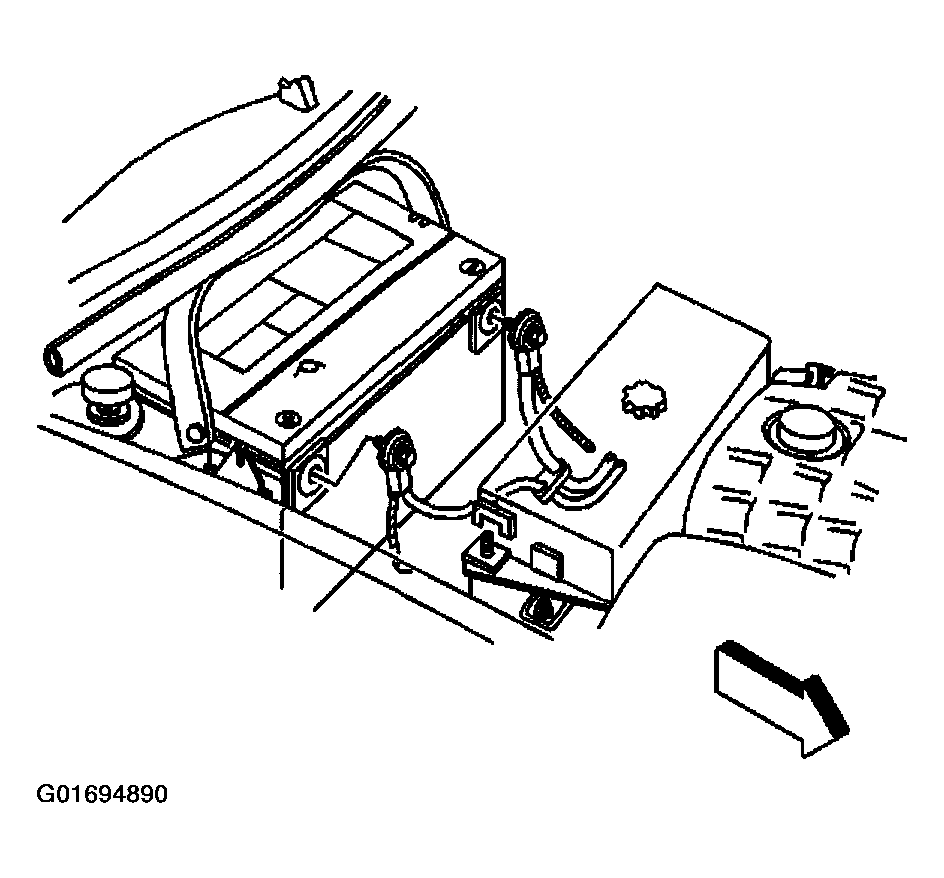

    Fig 1: Disconnecting Battery Cables
    G01694890Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery hold down retainer bolt and retainer.
  4. Remove the battery.

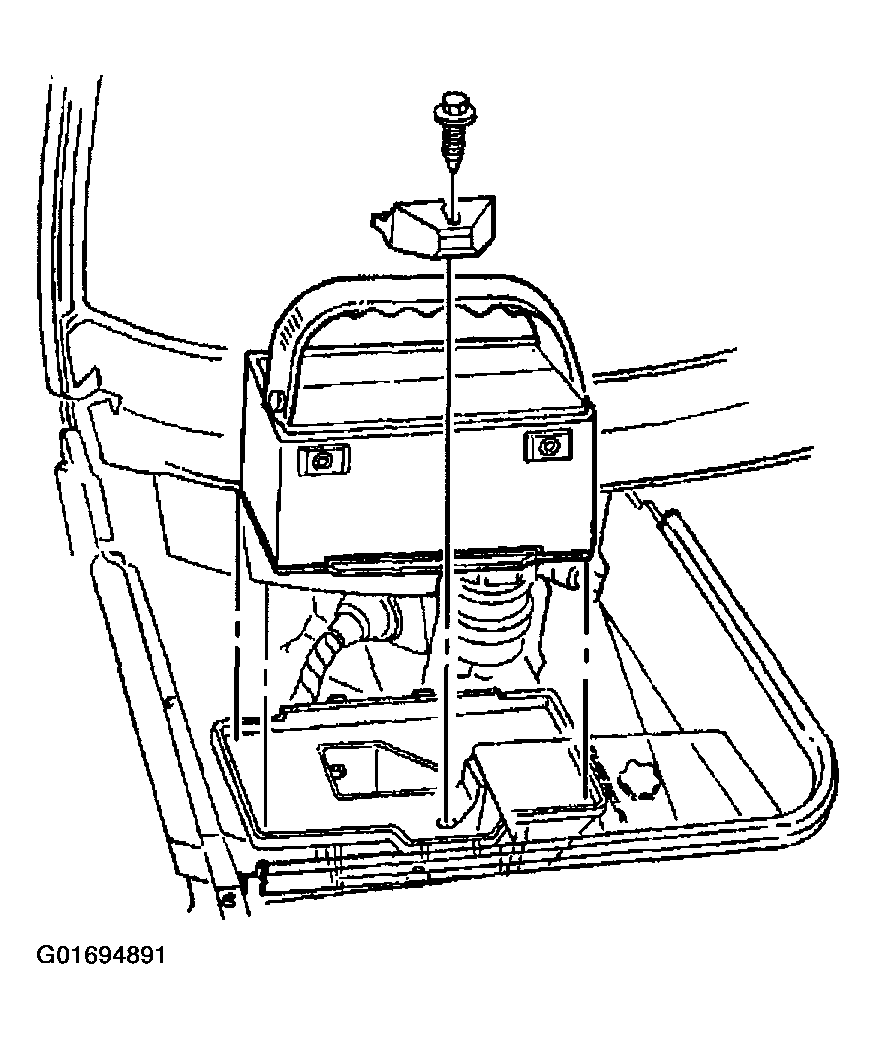

    Fig 2: Removing Battery Hold Down Retainer Bolt
    G01694891Courtesy of GENERAL MOTORS CORP.
