Removal Procedure

  1. Turn off the ignition switch.
  2. Open the center console door.
  3. Pull up on the rear of the switch assembly in order to release the mounting clips; if the switch does not release from the trim plate, perform the following steps:
    1. 3.1.  Carefully insert a screwdriver into the access hole located on the rear of the switch assembly.
    2. 3.2.  Gently pull up on the switch.
  4. Disconnect the harness connector (1).
  5. Remove the switch assembly (2).

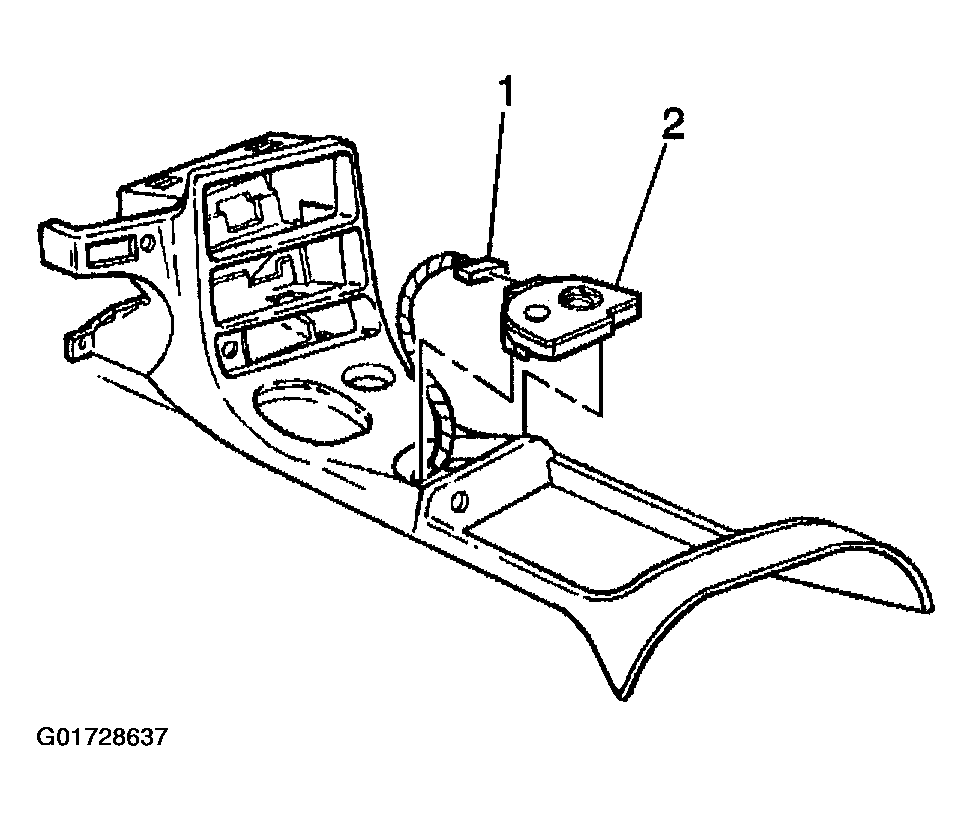

    Fig 1: Disconnecting Traction Control Switch Wiring Harness Connector
    G01728637Courtesy of GENERAL MOTORS CORP.
