Engine Electrical Connector End Views

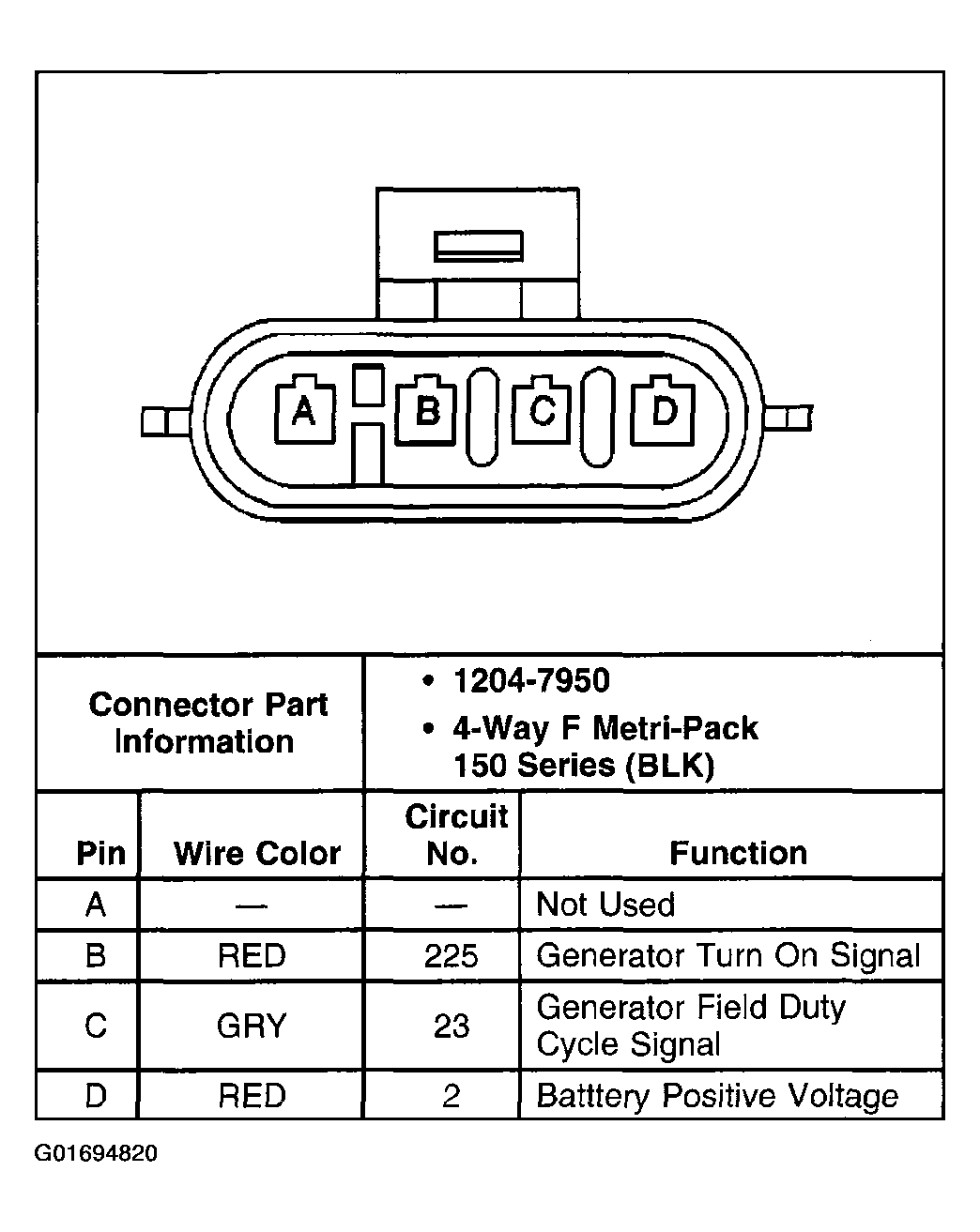

Fig 1: Generator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
