Fuse Block - I/P

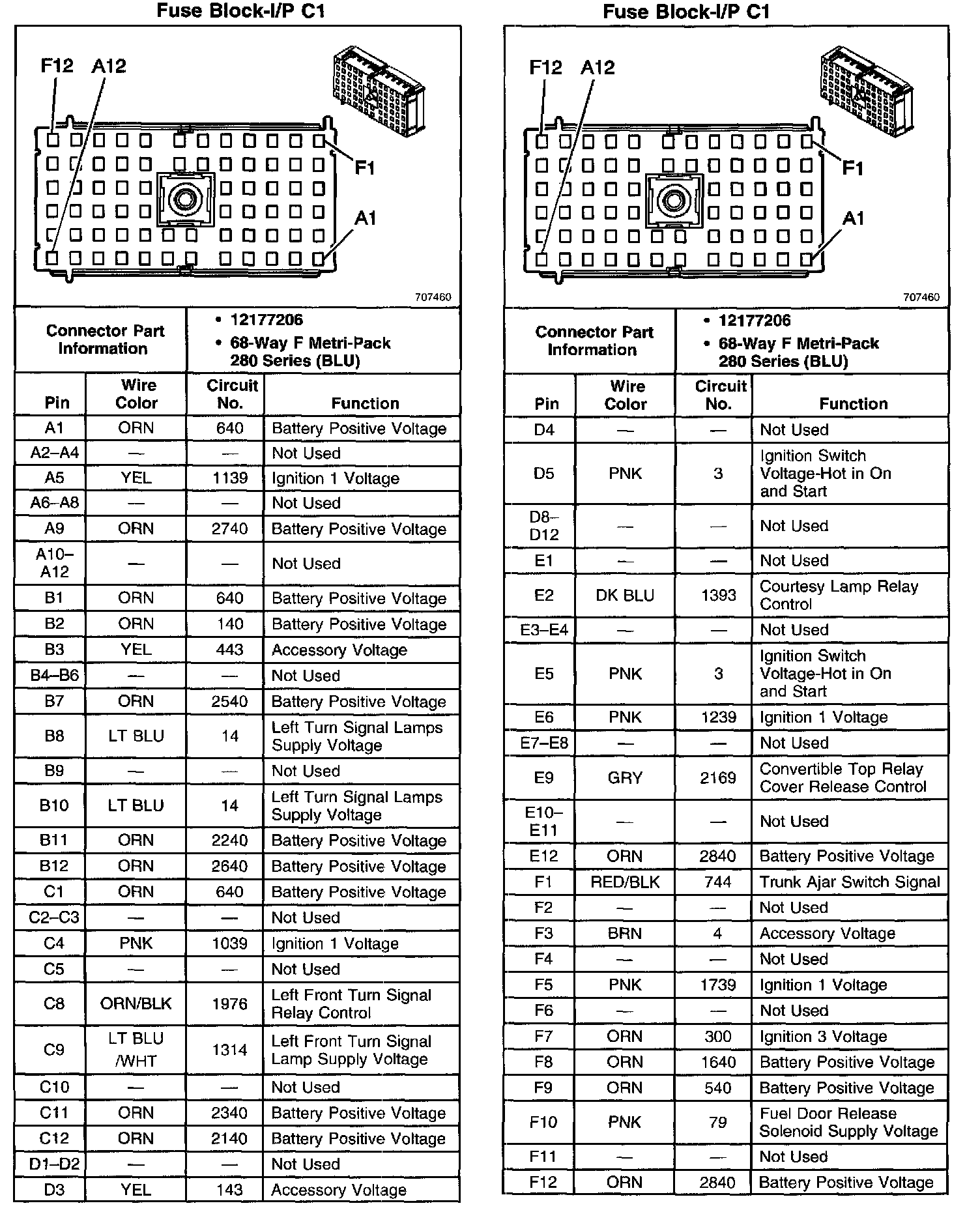

Fuse Block-I/P C1:

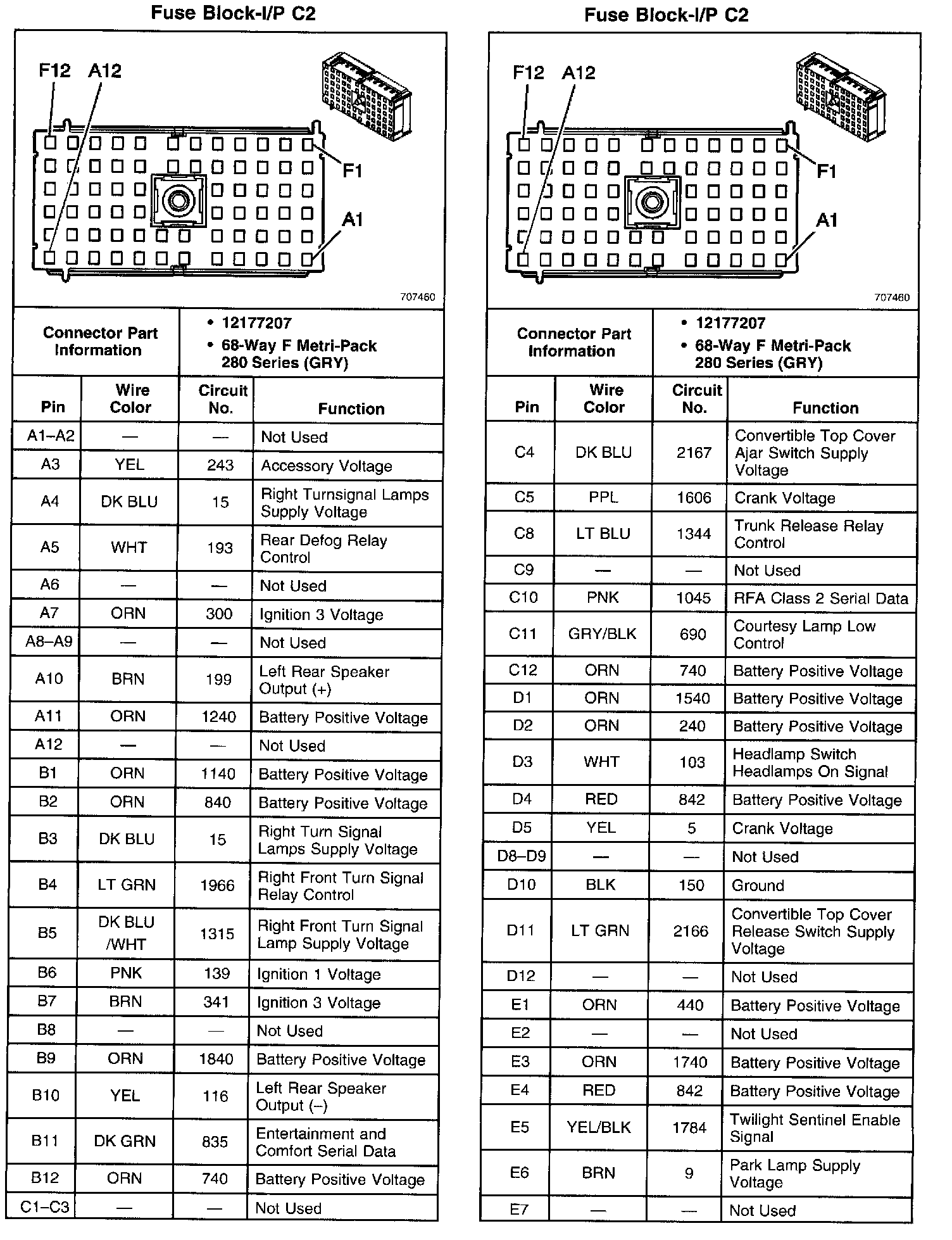

Fuse Block-I/P C2 Part 1:

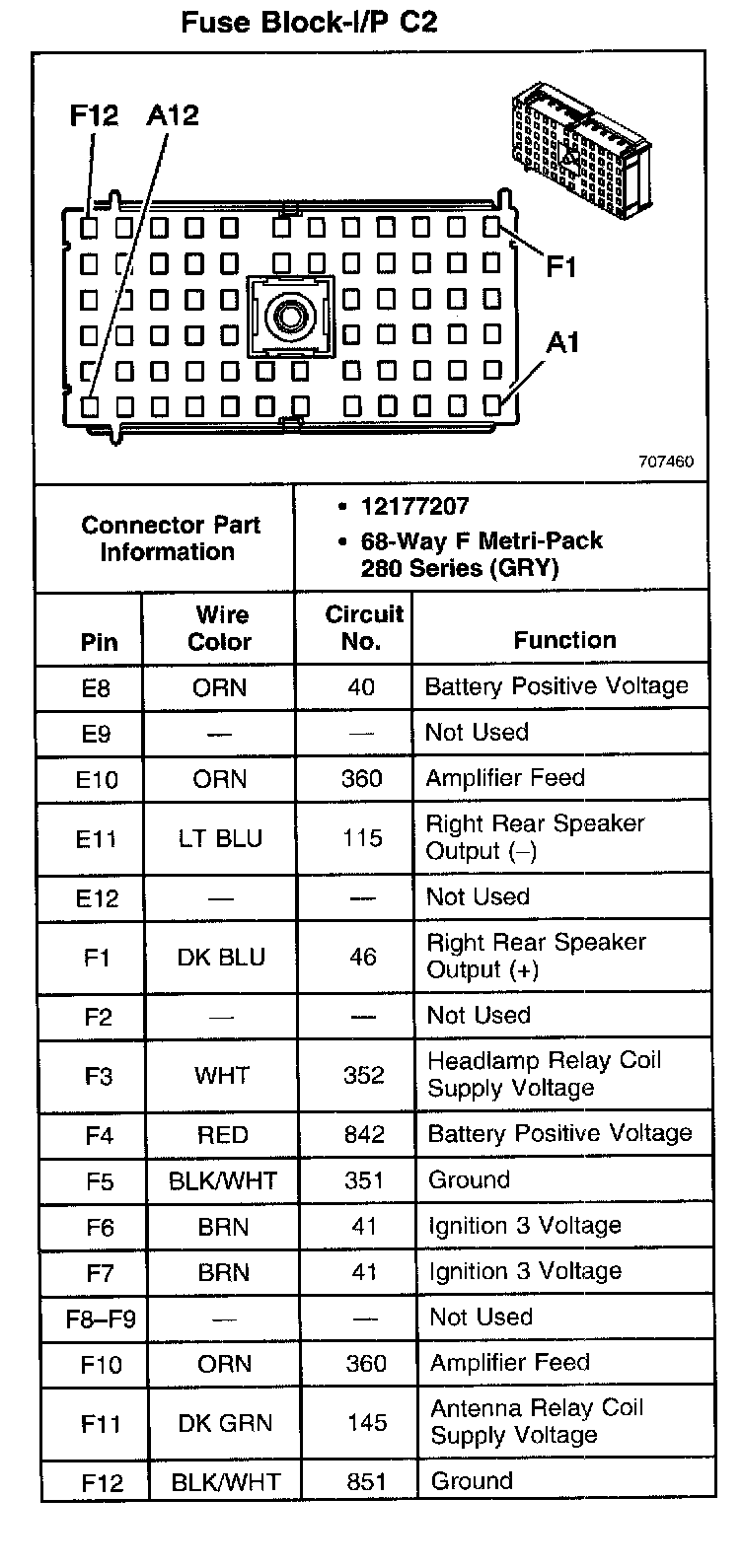

Fuse Block-I/P C2 Part 2:

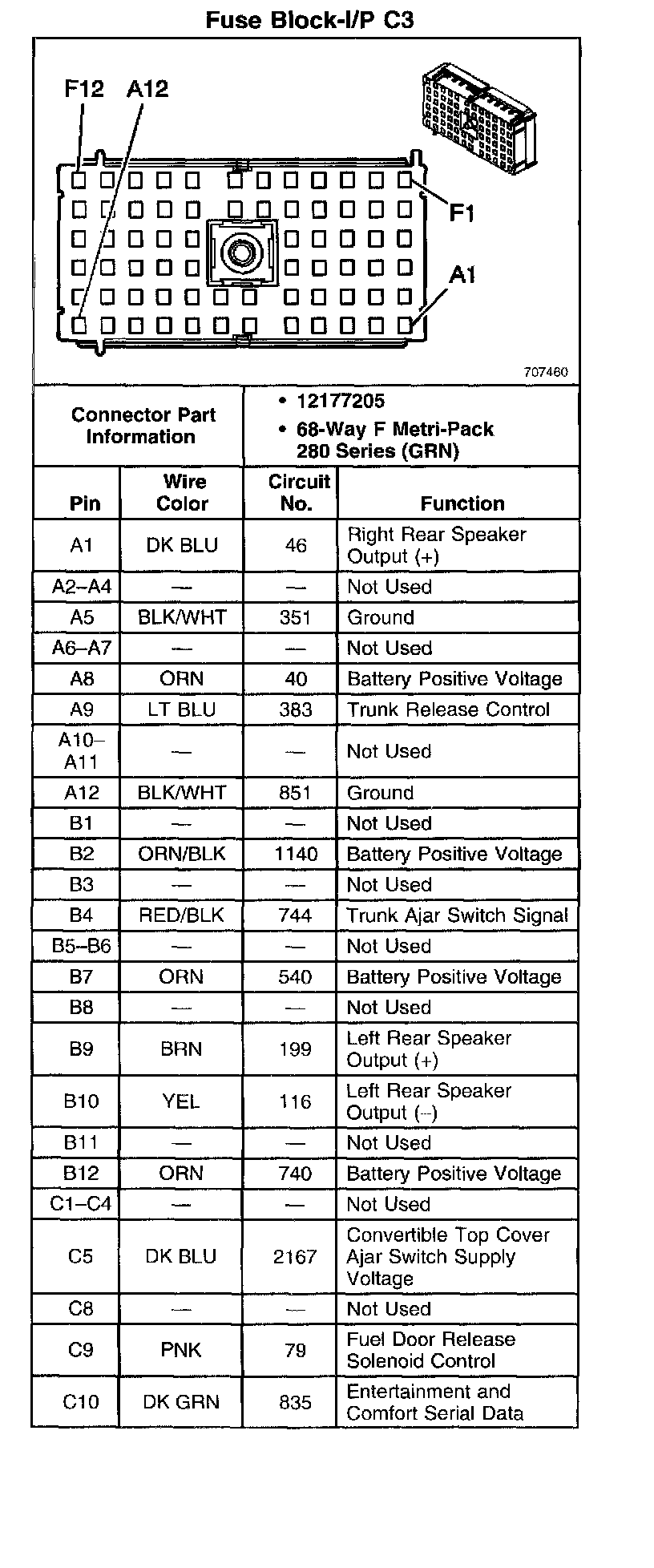

Fuse Block-I/P C3 Part 1:

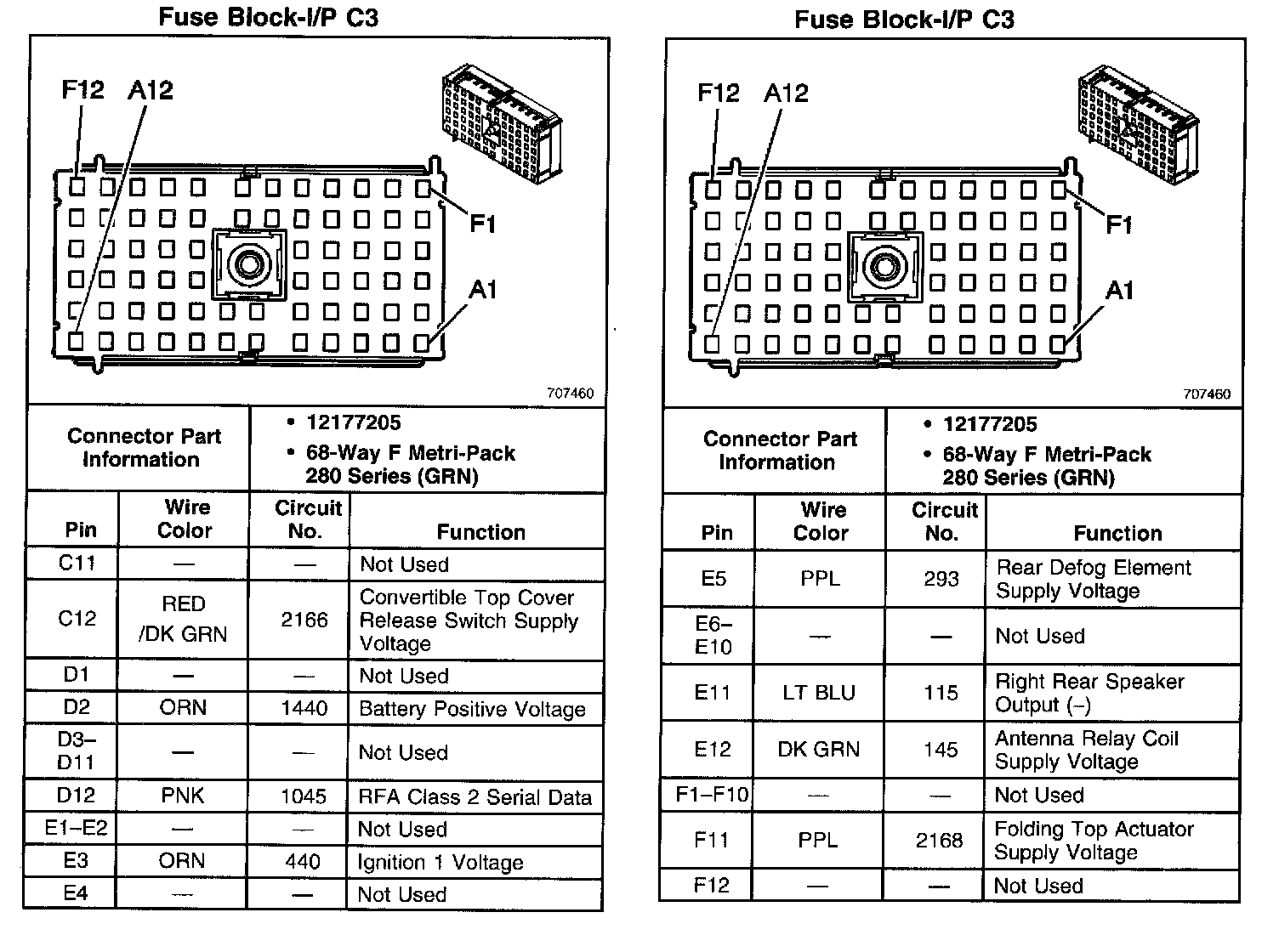

Fuse Block-I/P C3 Part 2:
