HVAC System - Automatic

REMOVAL PROCEDURE




1. Remove the I/P accessory trim plate.

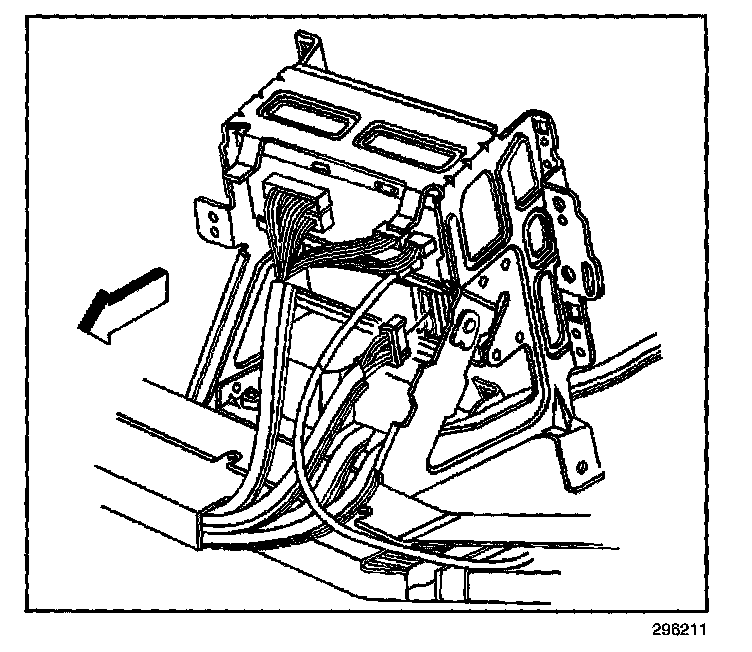

2. Remove the HVAC control module retaining screws.
3. Pull the HVAC control module out from the I/P center support bracket.




4. Disconnect the electrical connector from the HVAC control module.
5. Remove the HVAC control module from the vehicle.

INSTALLATION PROCEDURE




1. Install the HVAC control module to the vehicle.

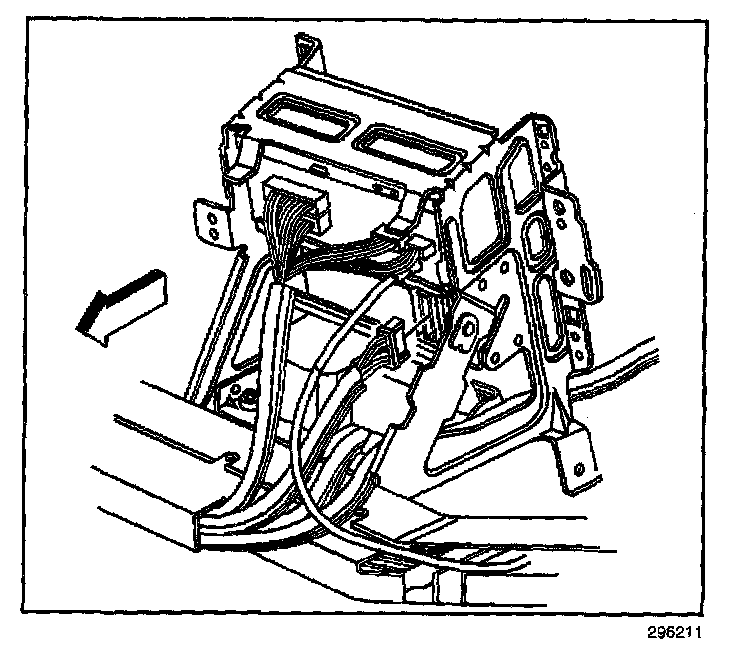

2. Connect the electrical connector to the HVAC control module.




3. Install the HVAC control module to the I/P center support bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the HVAC control module retaining screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

5. Install the I/P accessory trim plate.
