Alternative Fuels Engine Control Module Connector End View C001

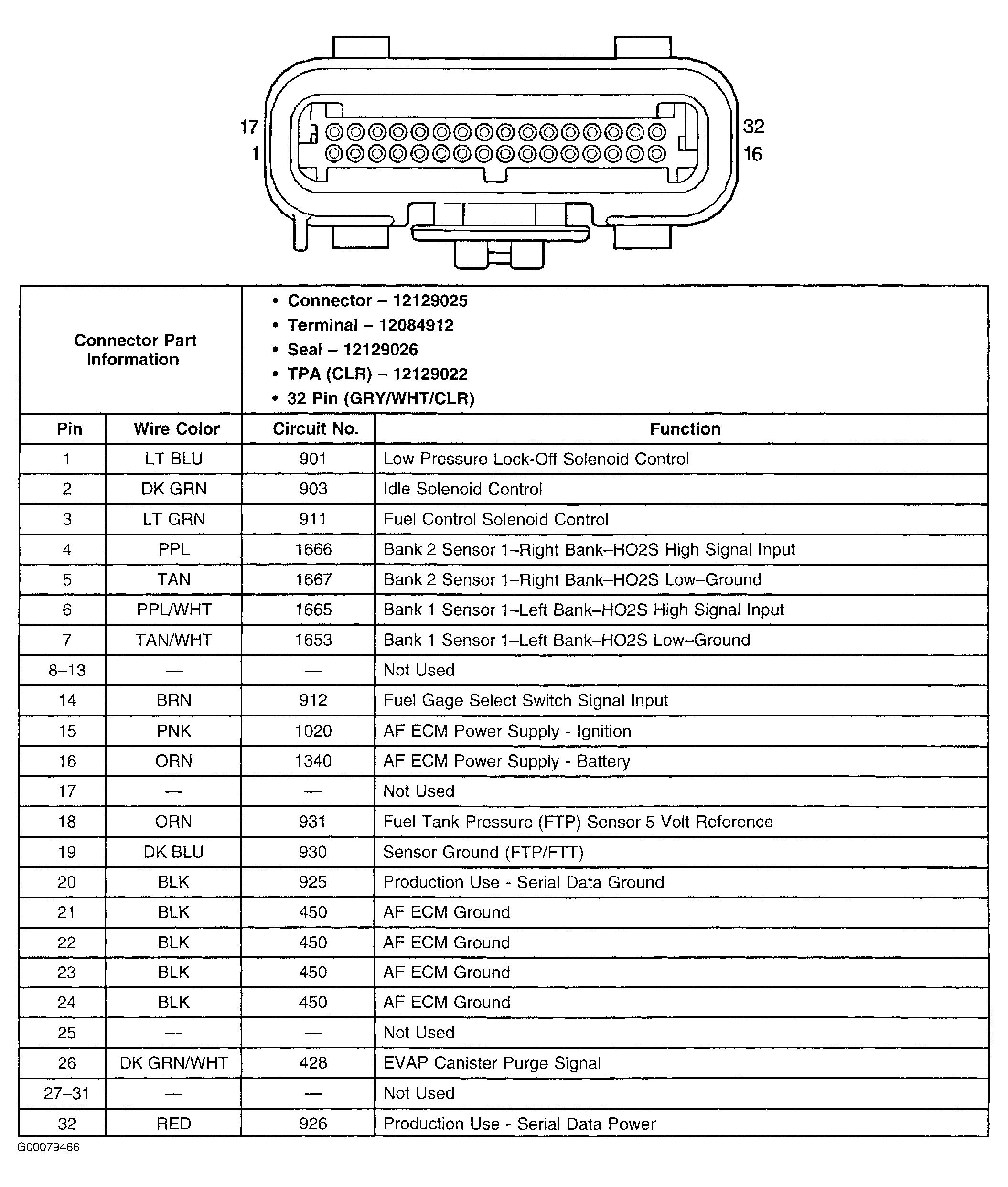

Fig 1: Alternative Fuels Engine Control Module Connector C001
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
