Installation Procedure

  1. Install the jounce bumper (1) to the lower control arm
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut (2) retaining the jounce bumper to the lower control arm.

    Tighten

    Tighten the jounce bumper retaining nut to 24 N.m (18 lb ft).

  3. Remove the safety stands, lower the vehicle.

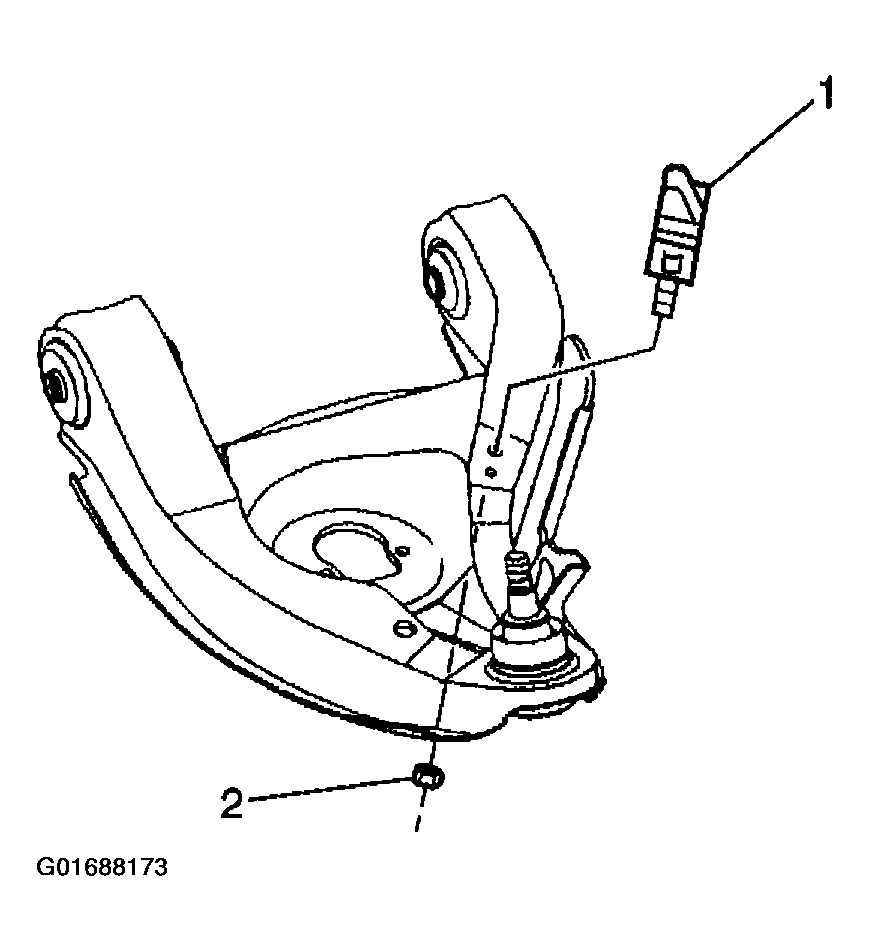

    Fig 1: Installing Nut & Jounce Bumper
    G01688173Courtesy of GENERAL MOTORS CORP.
