Wiper/Washer System Connector End Views

Fig 1: Identifying Windshield Washer Fluid Level Switch Connector Terminals
G01738150Courtesy of GENERAL MOTORS CORP.

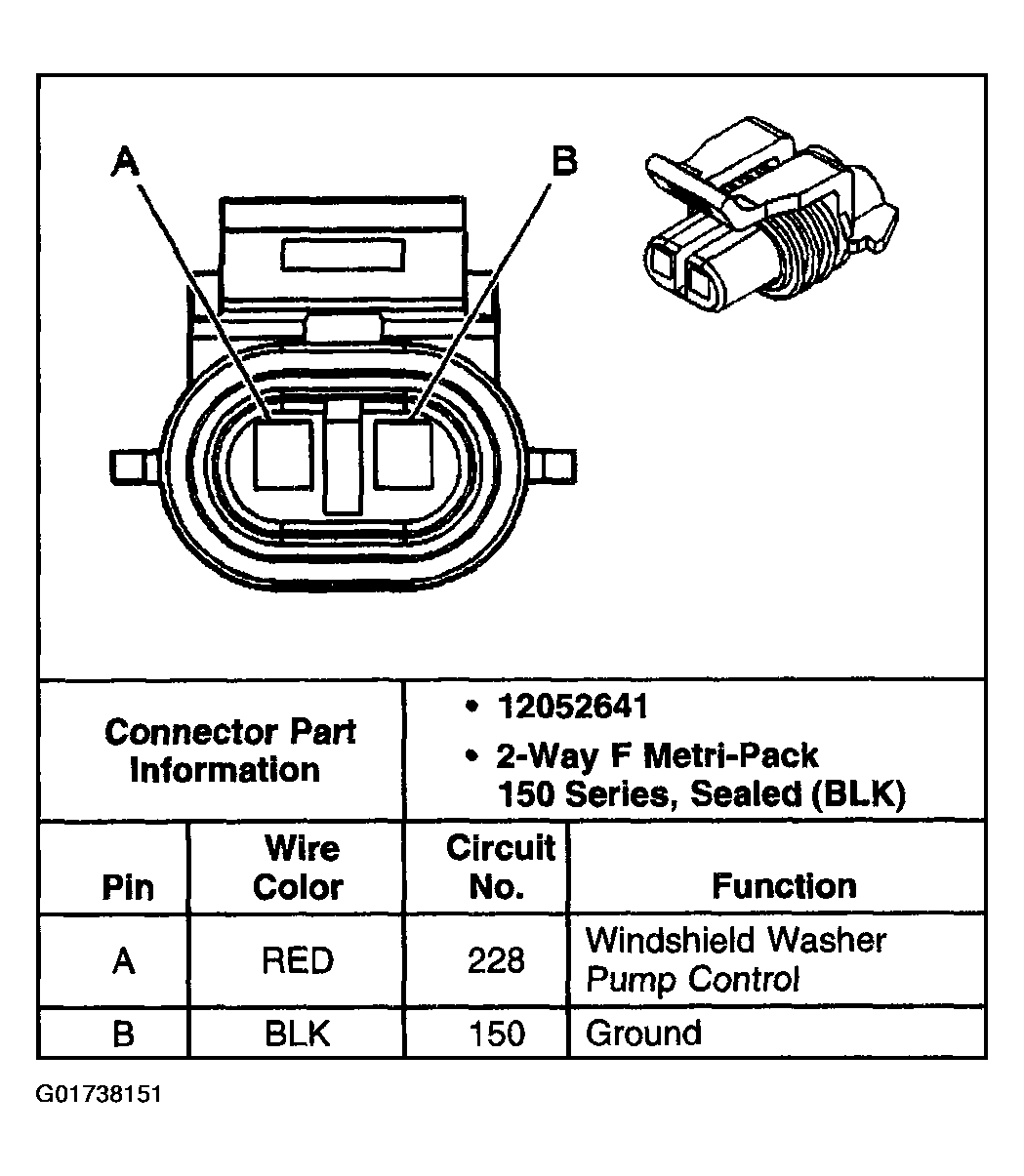

Fig 2: Identifying Windshield Washer Fluid Pump Connector Terminals
G01738151Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Windshield Wiper System Module Connector Terminals
G01738152Courtesy of GENERAL MOTORS CORP.
