Transaxle In-Line Harness 20-Way Connector End View

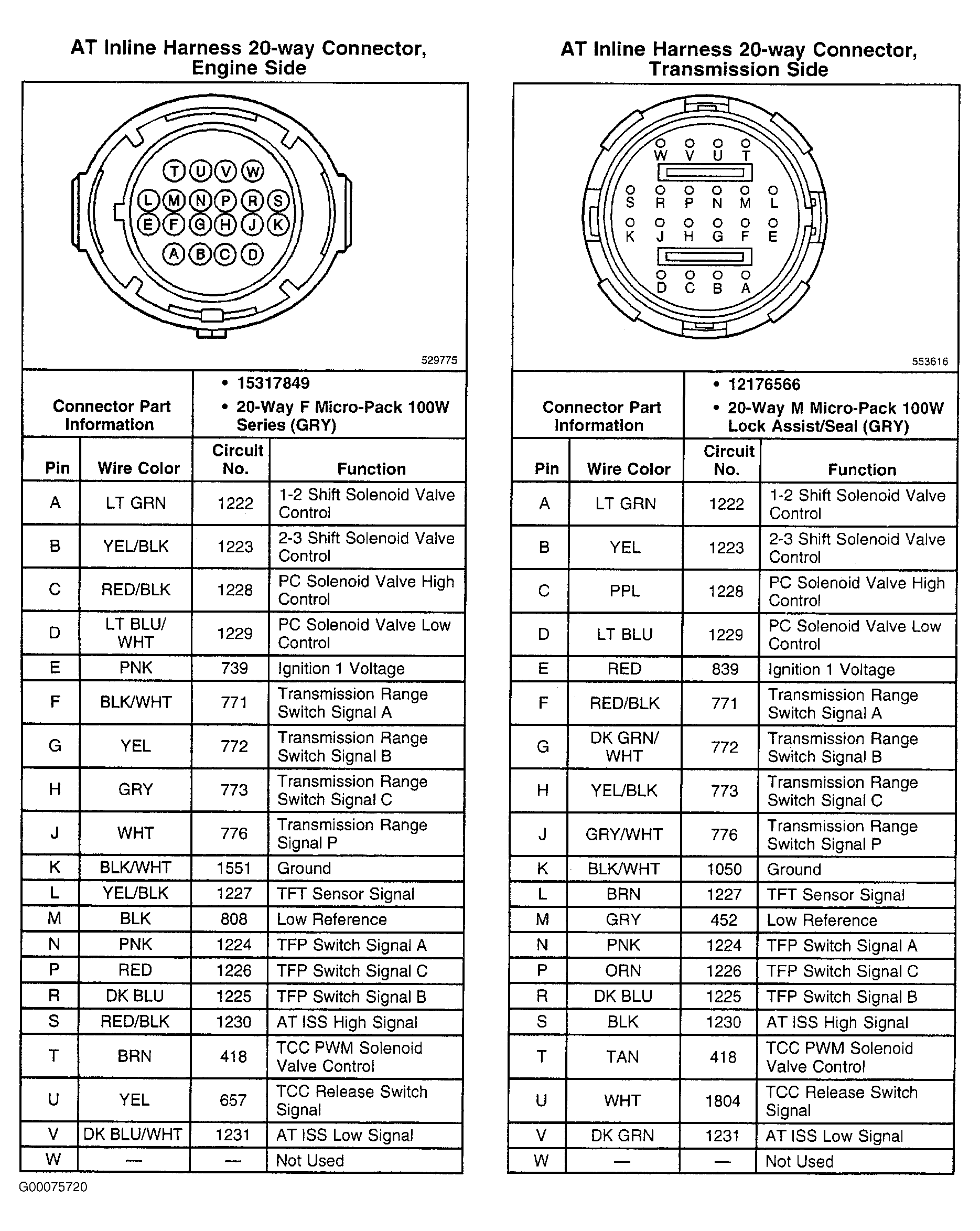

Fig 1: Transaxle In-Line Harness 20-Way
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
