Wheel Alignment Specifications & Adjustment Procedures
>>
Specifications
>>
Wheel Alignment Specifications (Front)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wheel Alignment Specifications (Front)

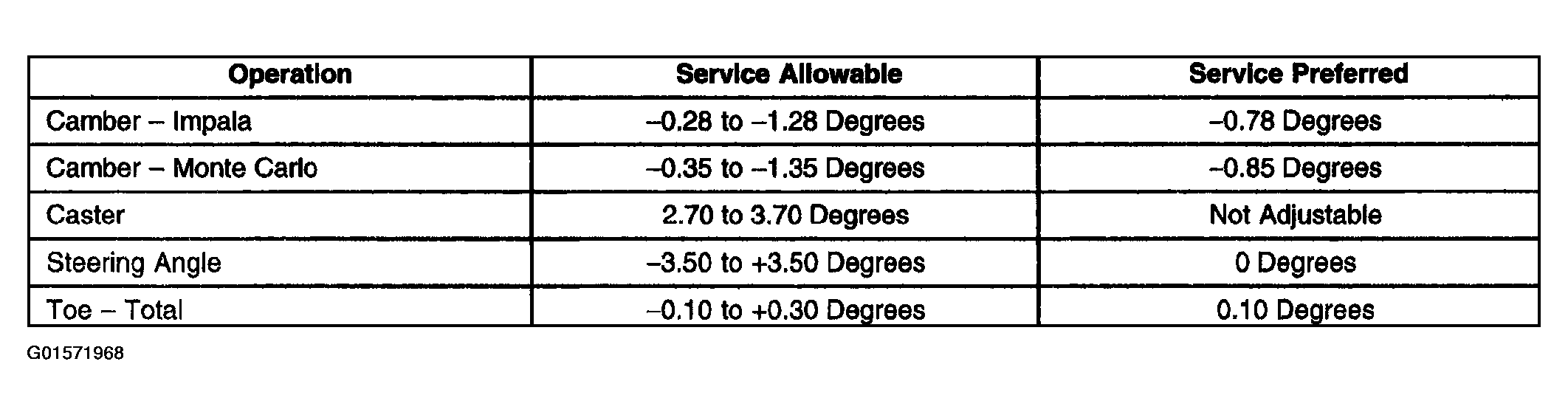

Fig 1: Wheel Alignment Specifications (Front)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
