Automatic Transmission/Transaxle

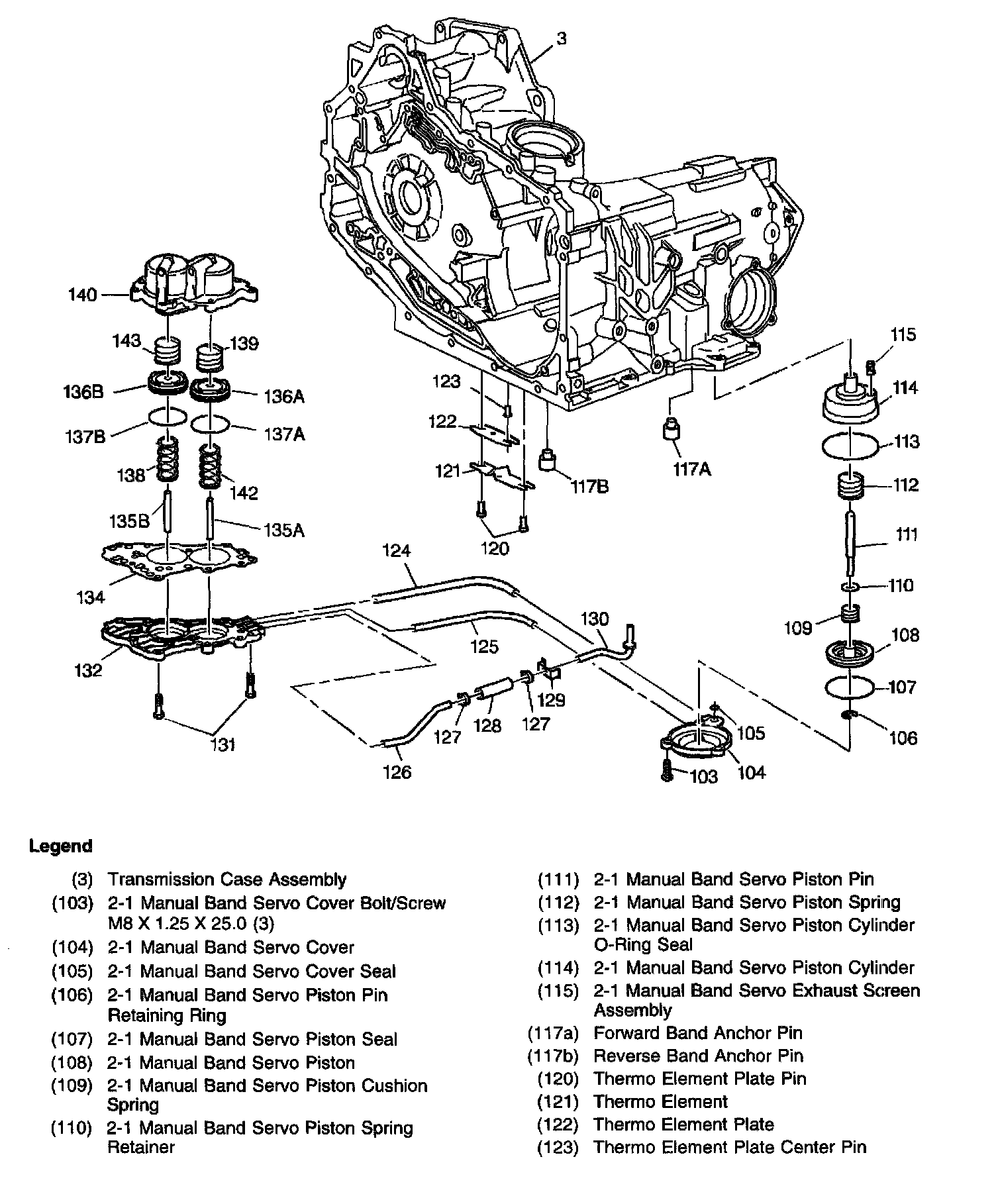

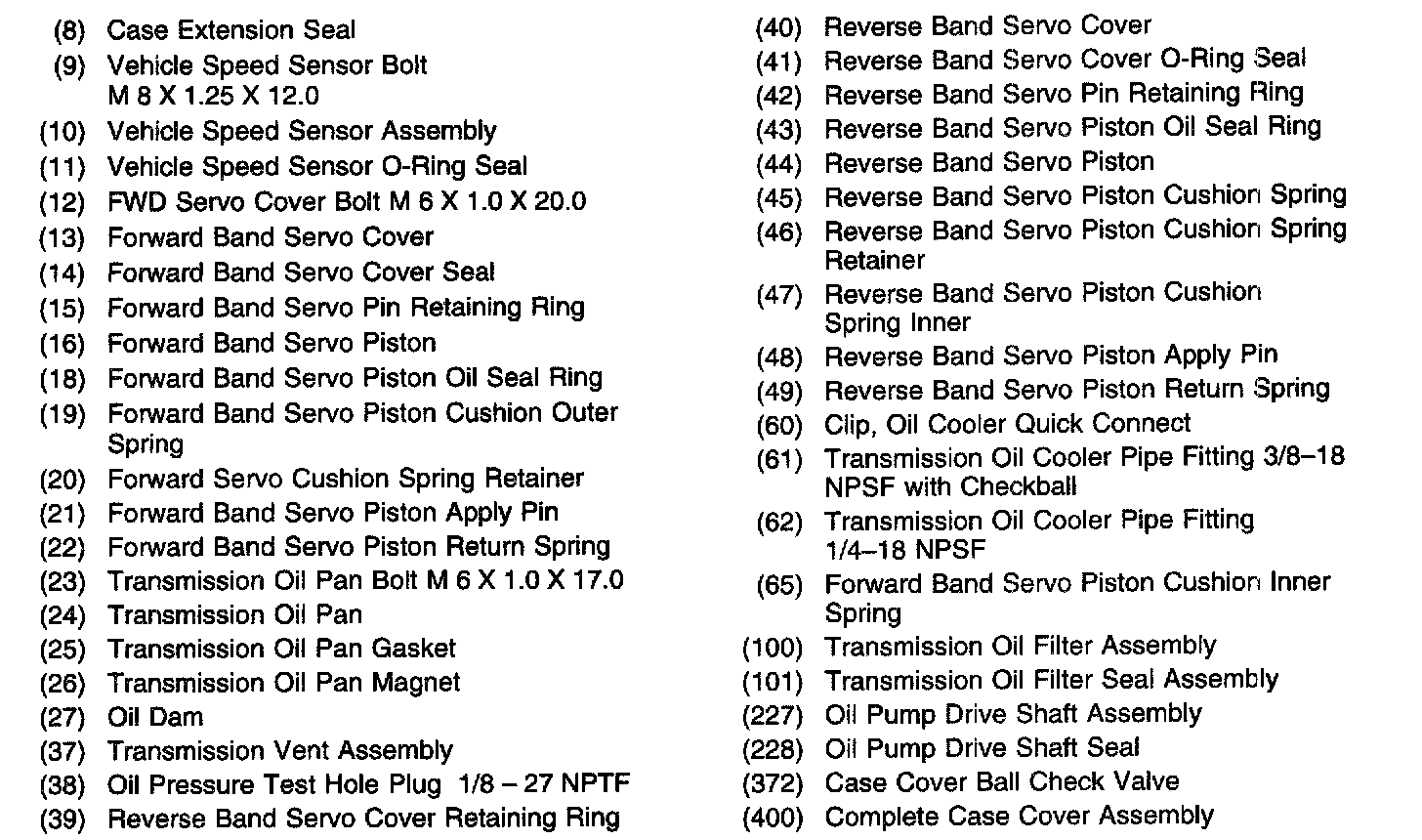

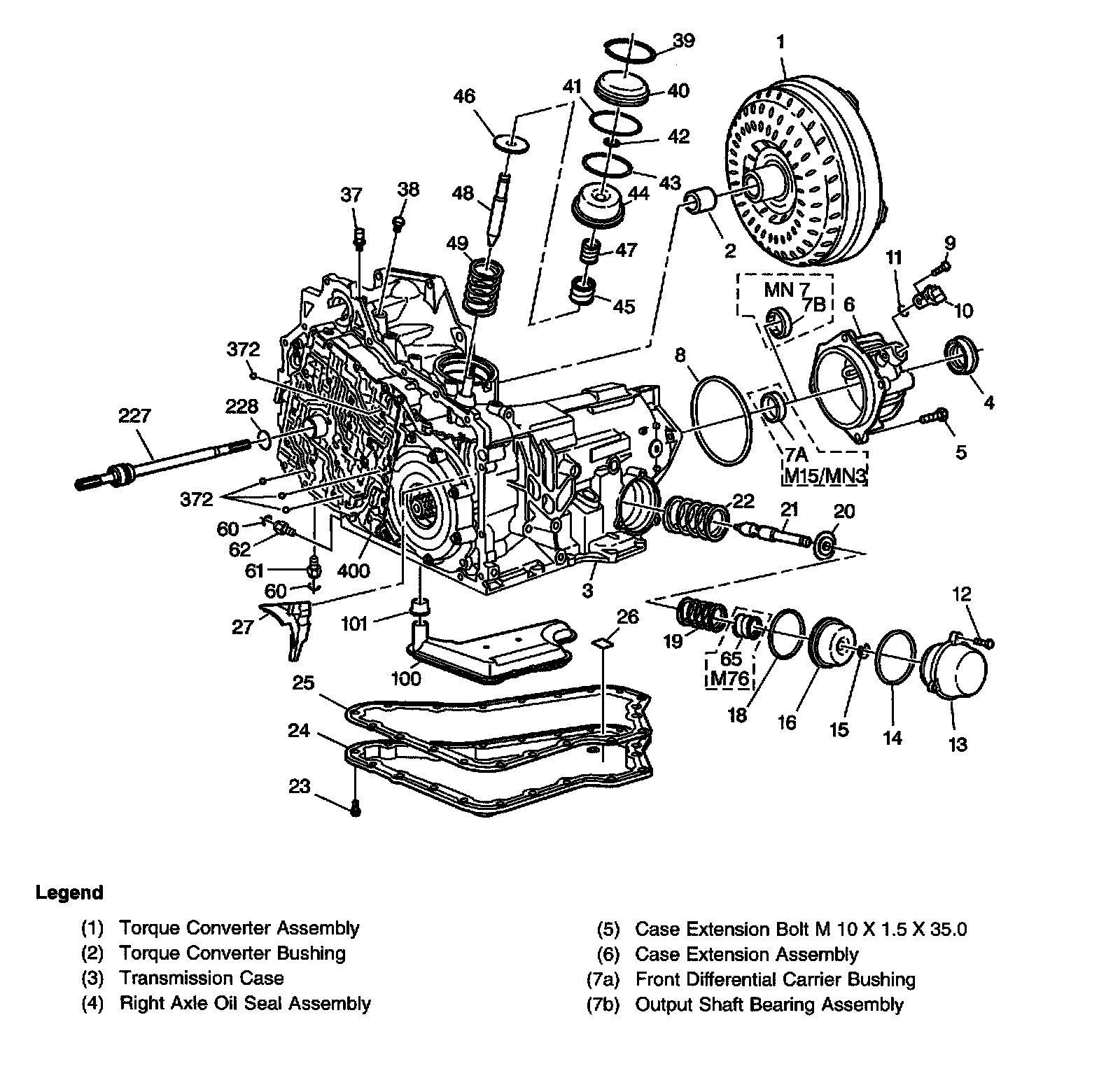

Case and Associated Parts (1 of 4)

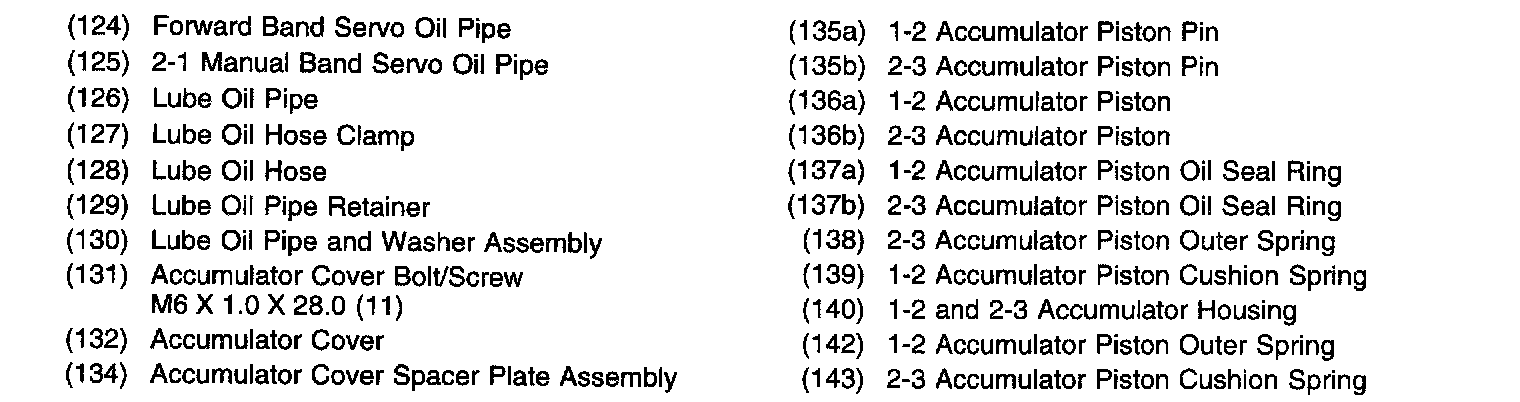

Case and Associated Parts (2 of 4)
Case and Associated Parts (3 of 4)
Case and Associated Parts (4 of 4)

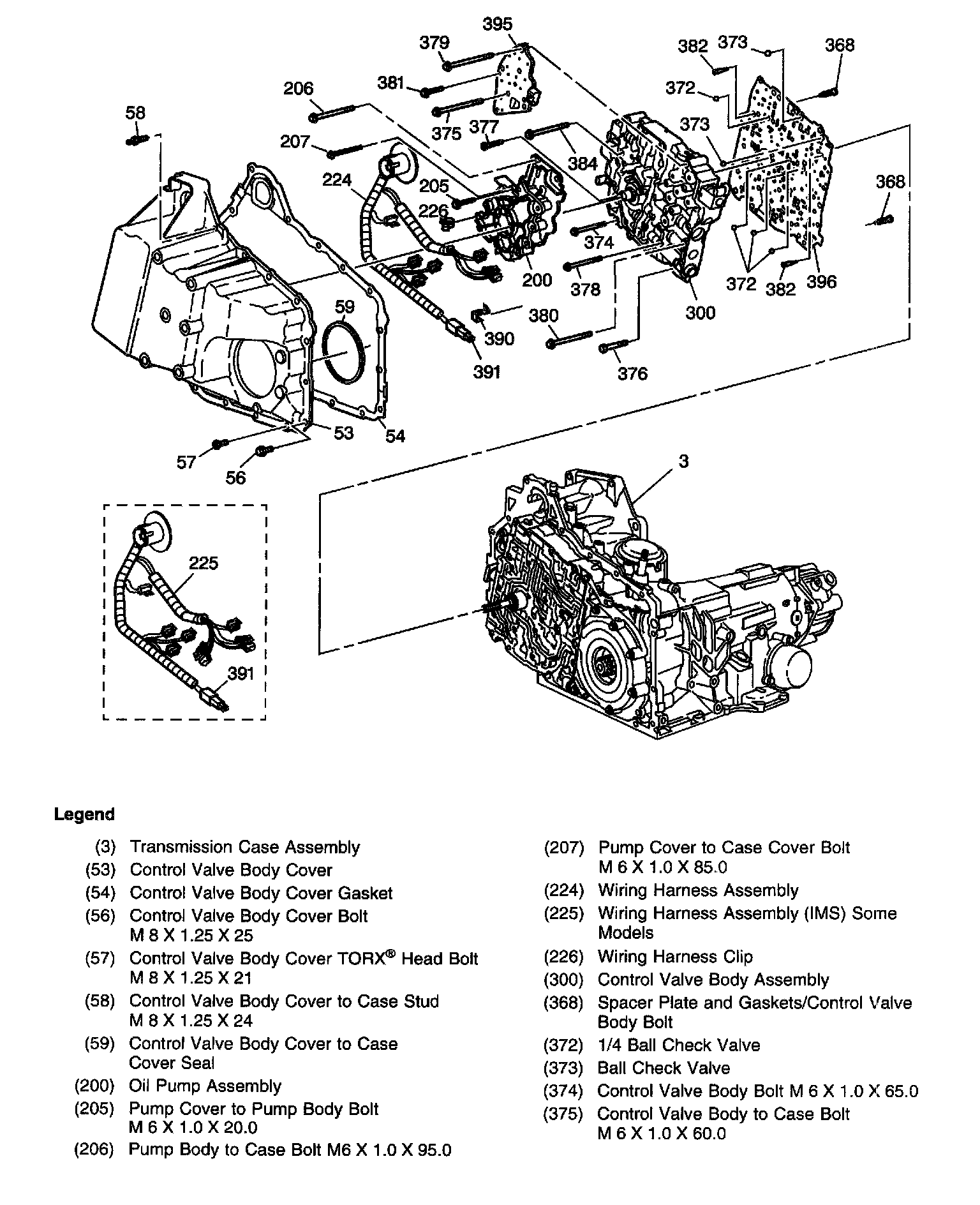

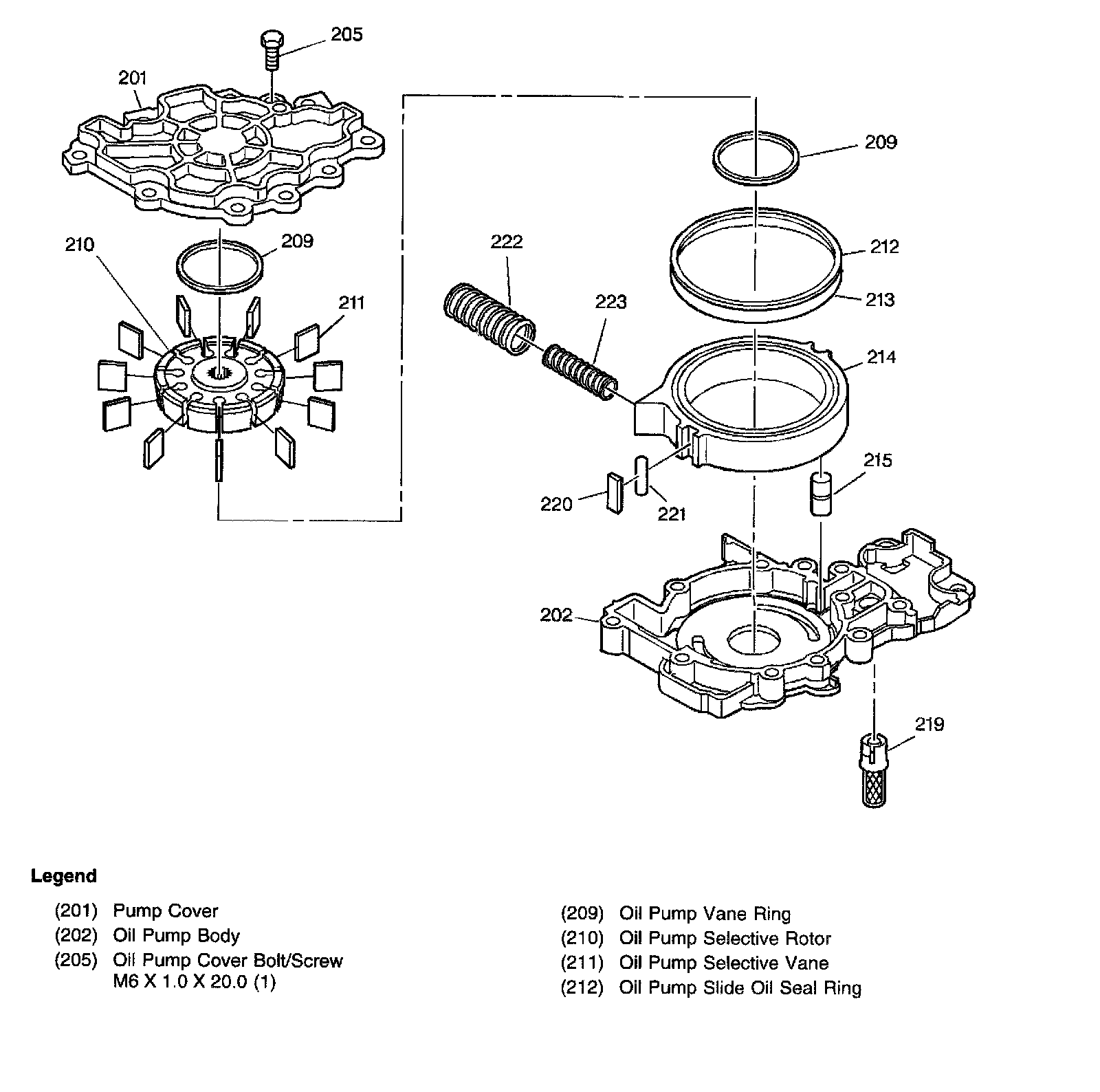

Oil Pump Assembly

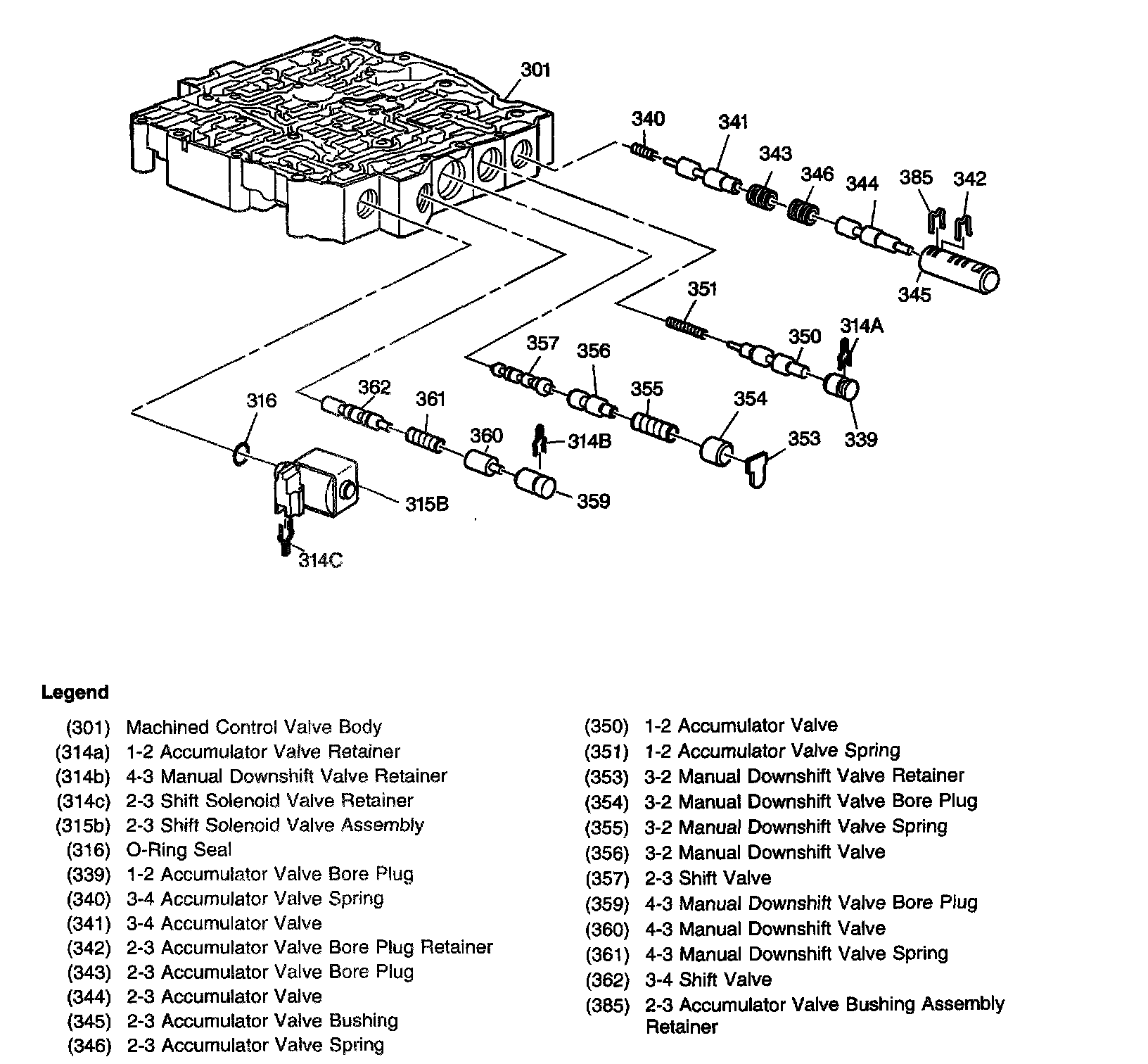

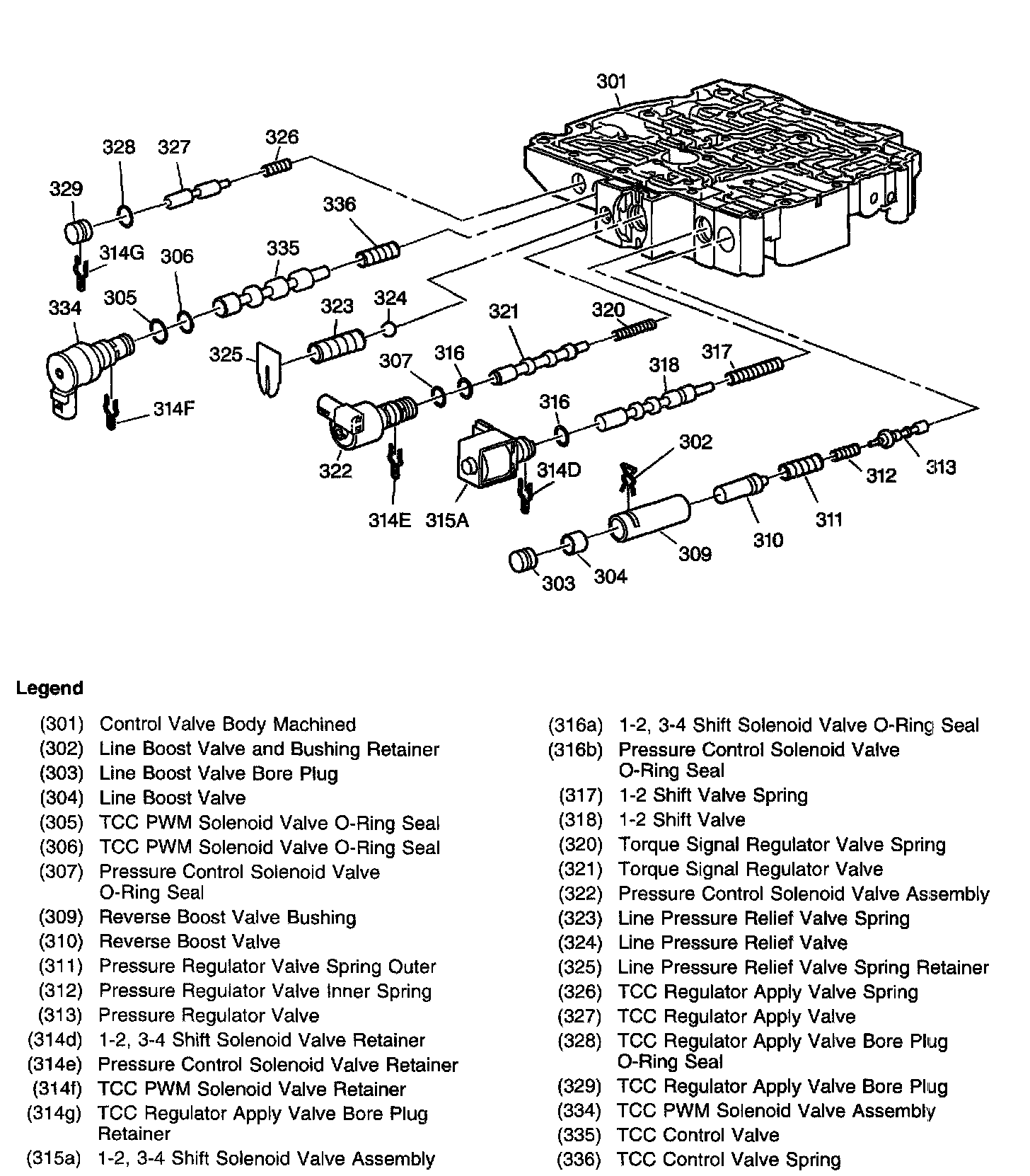

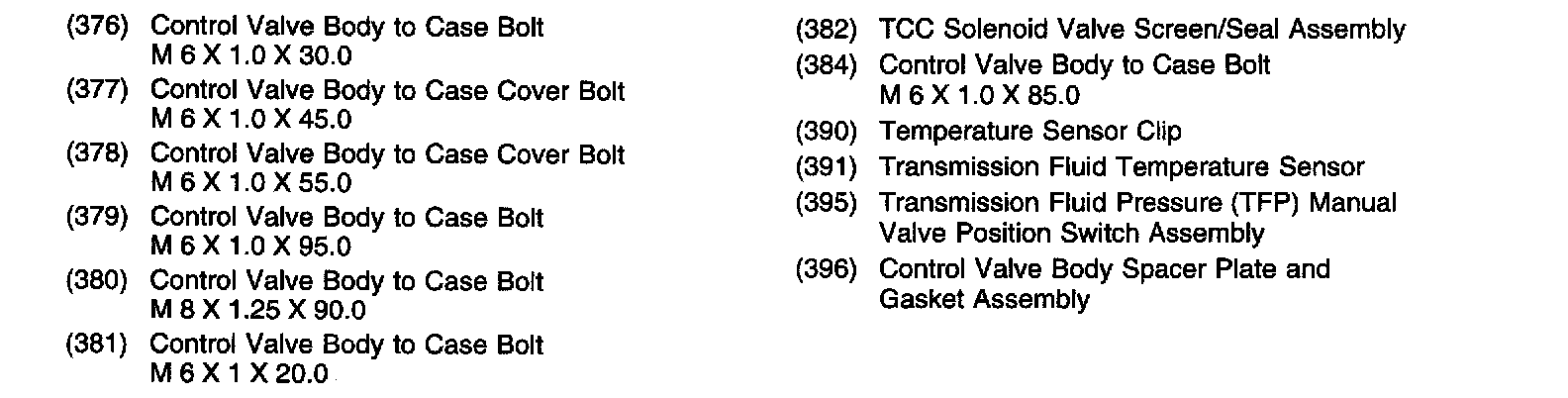

Control Valve Body Assembly (1 of 2)
Control Valve Body Assembly (2 of 2)

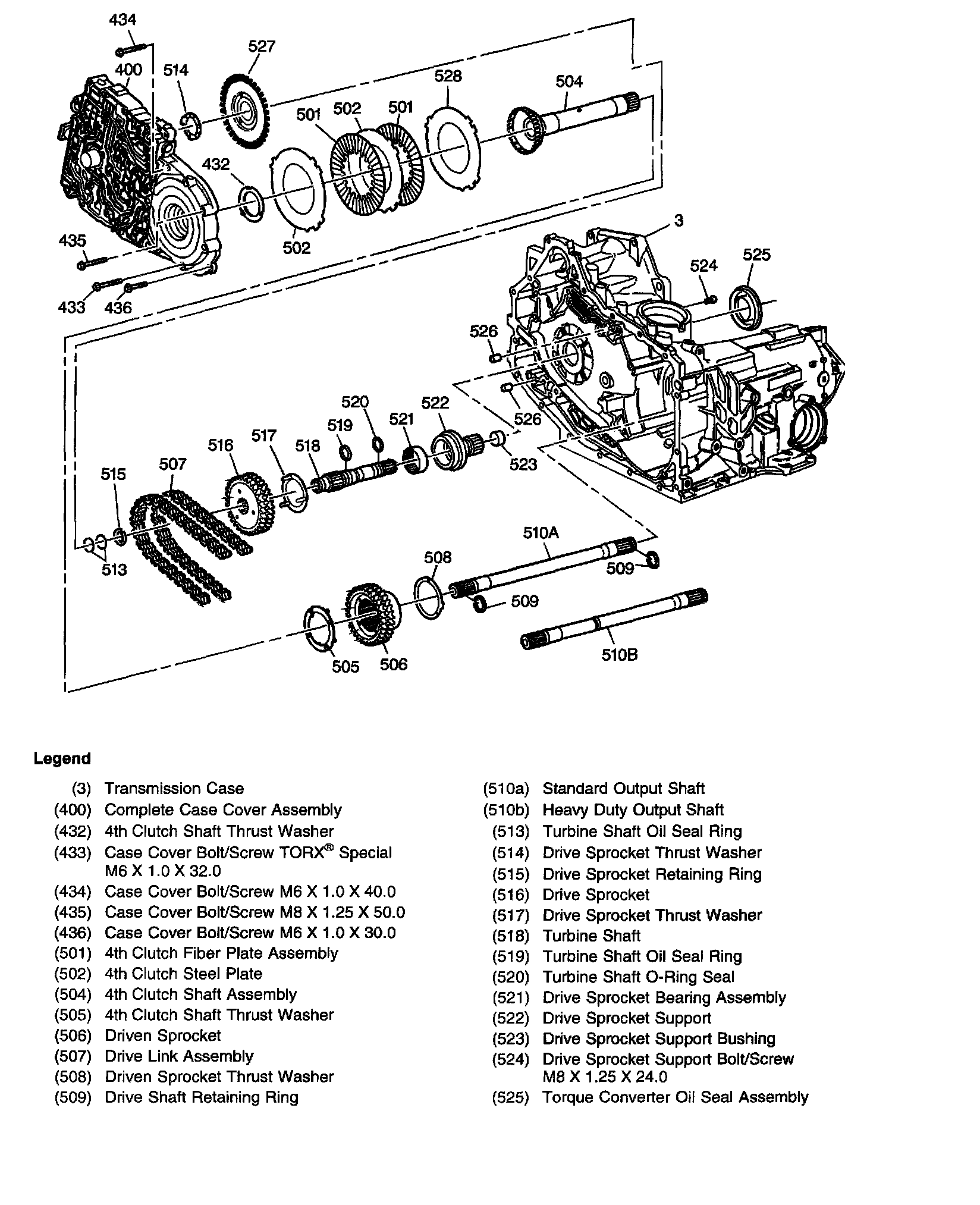

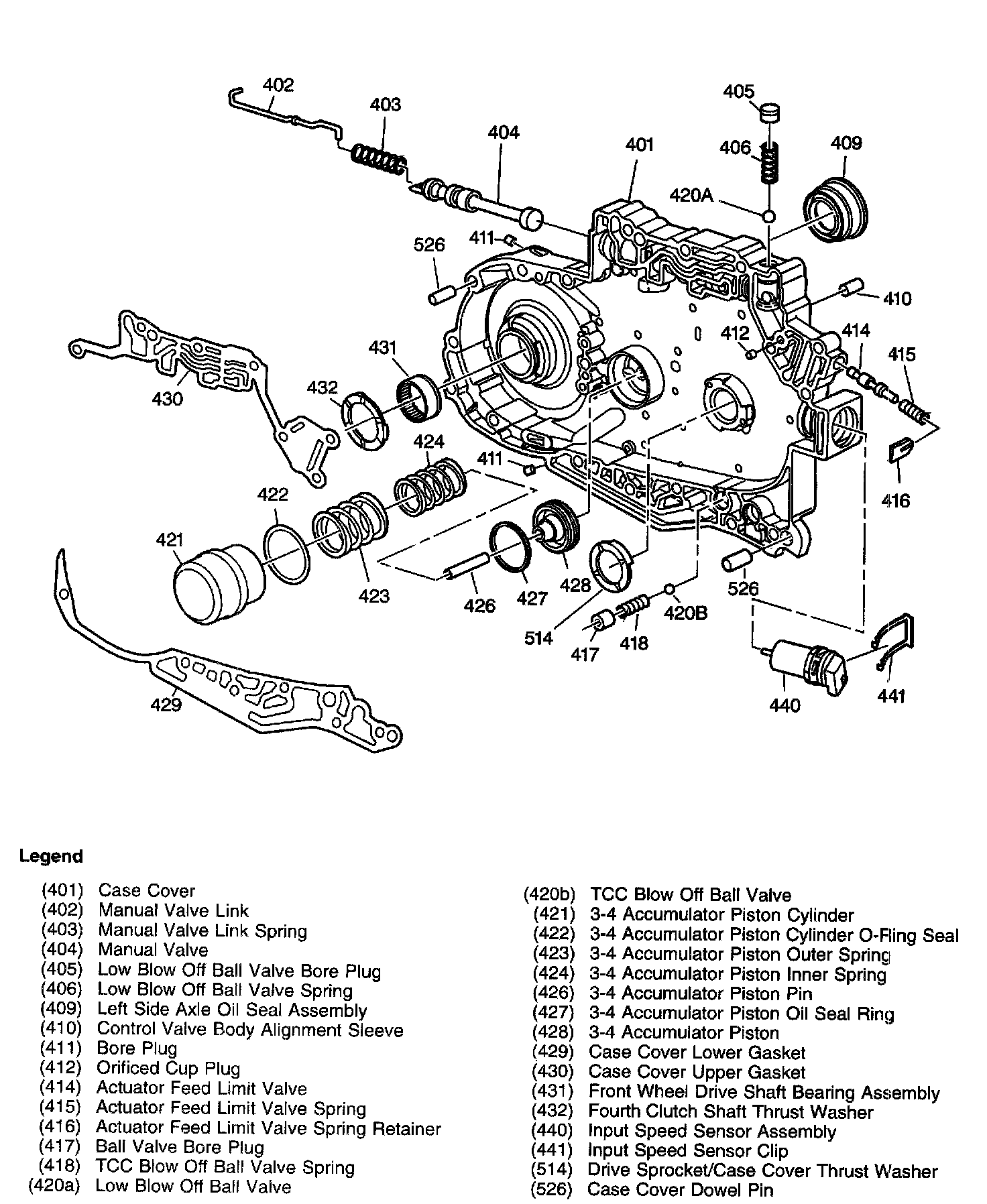

Case Cover Assembly

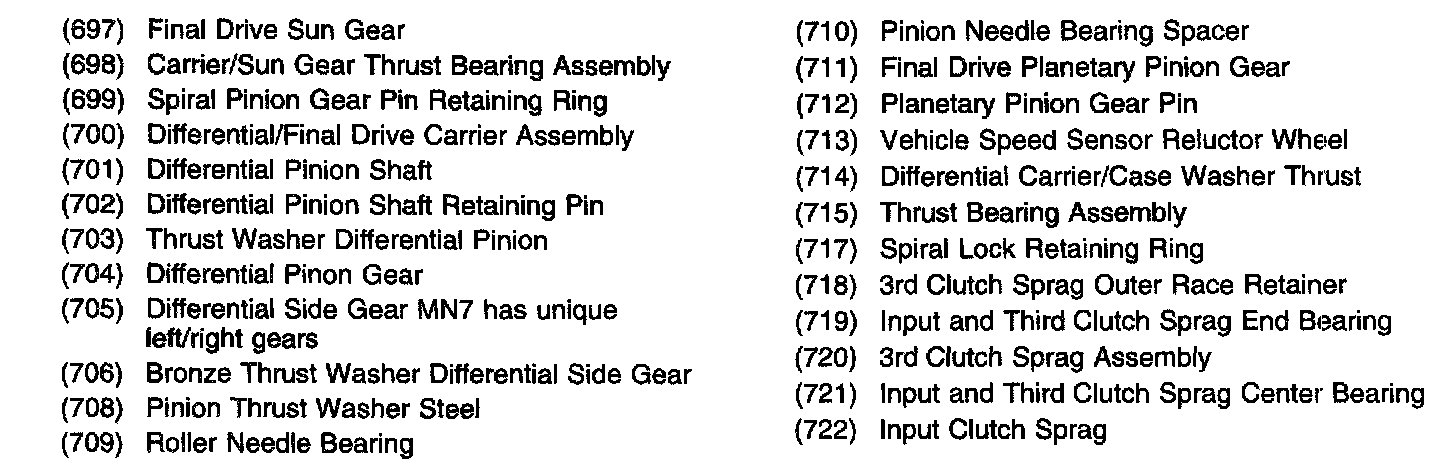

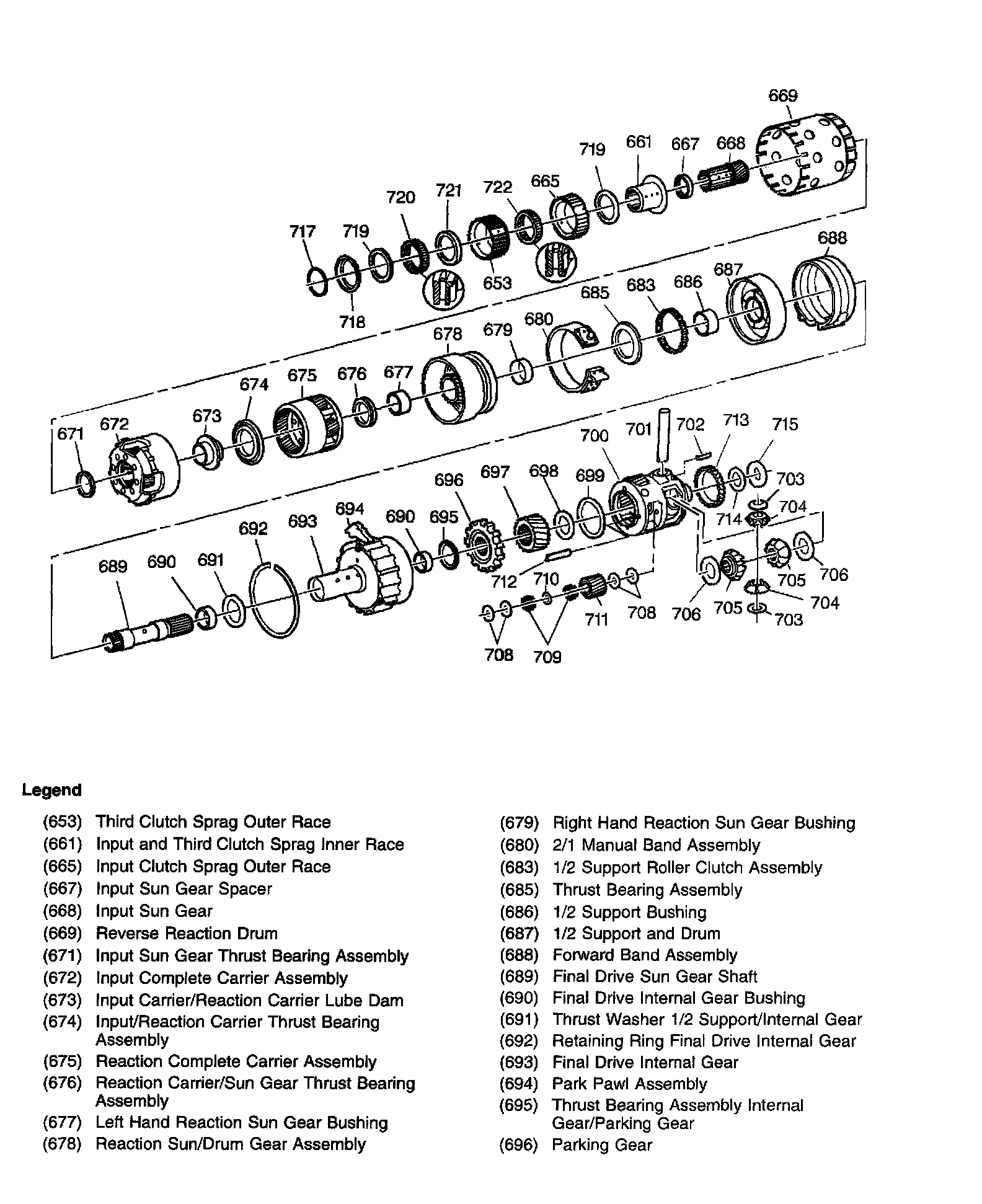

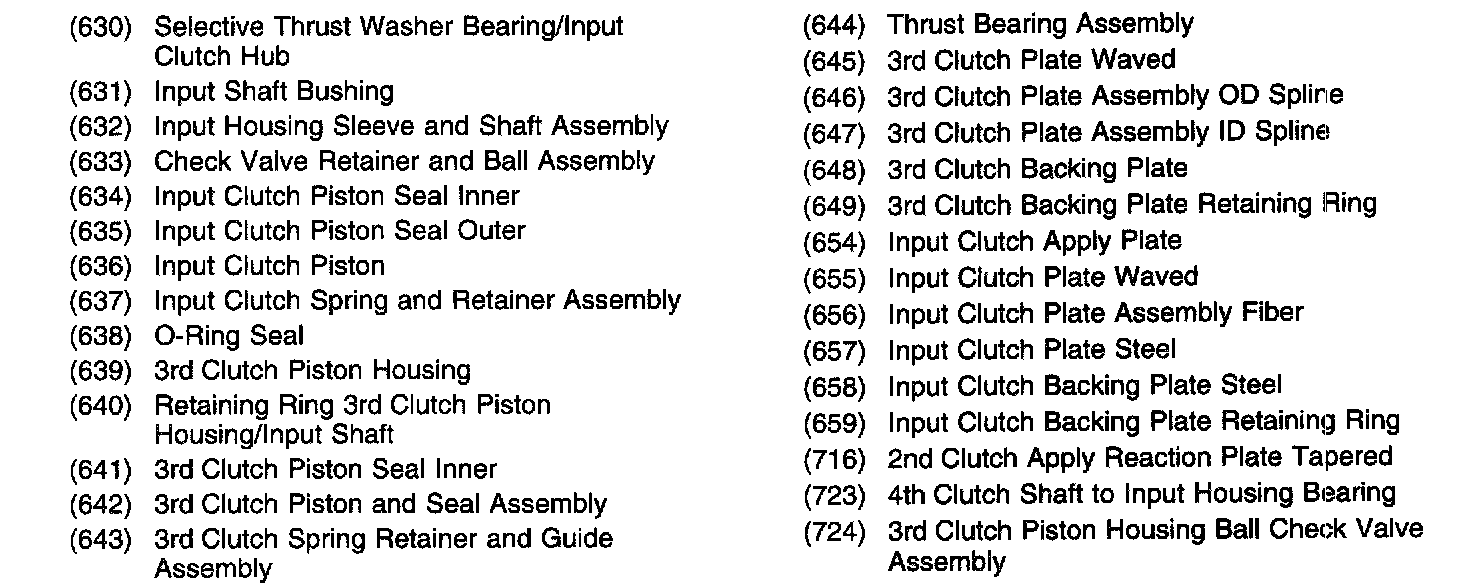

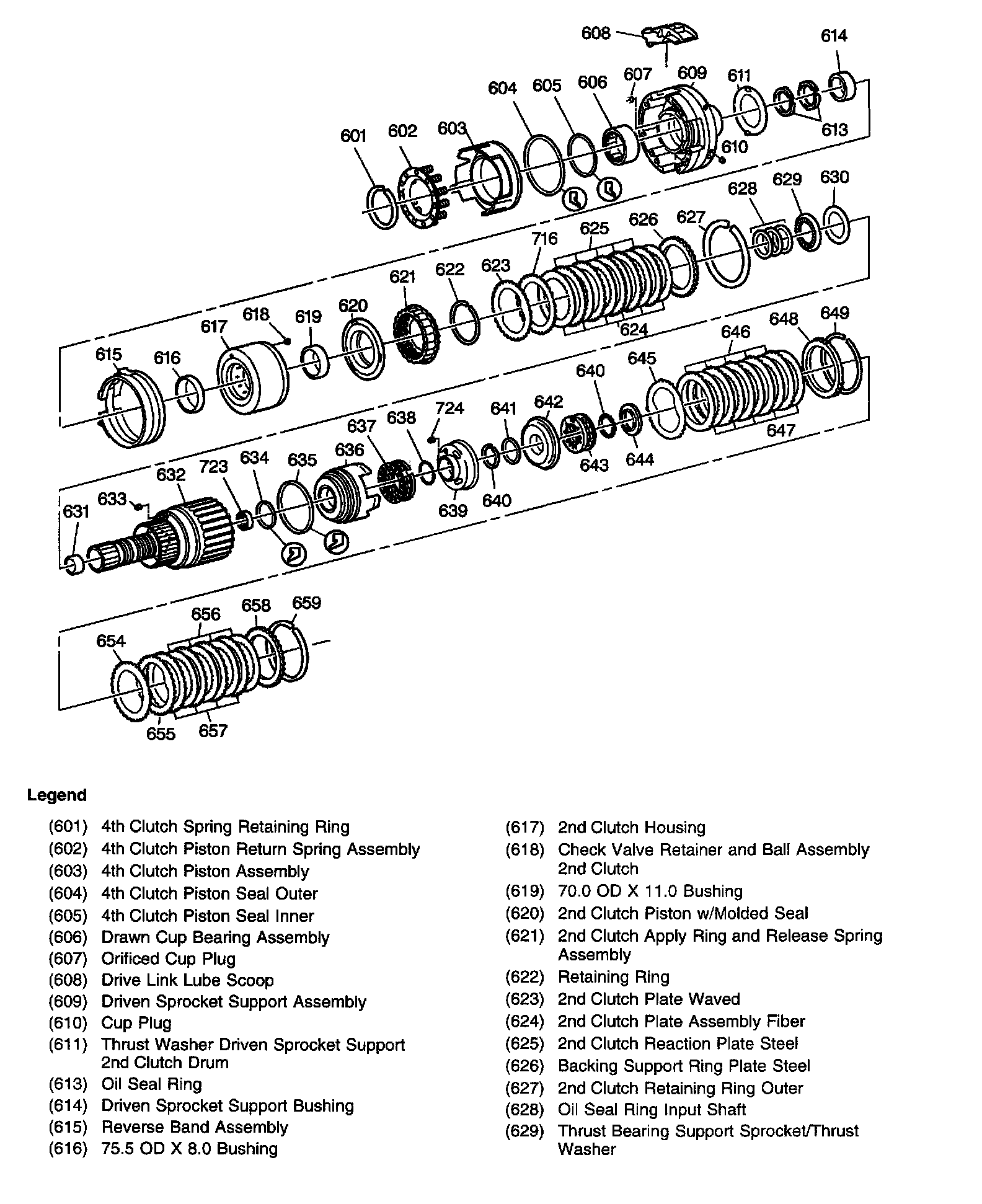

Internal Components (1 of 2)
Internal Components (2 of 2)

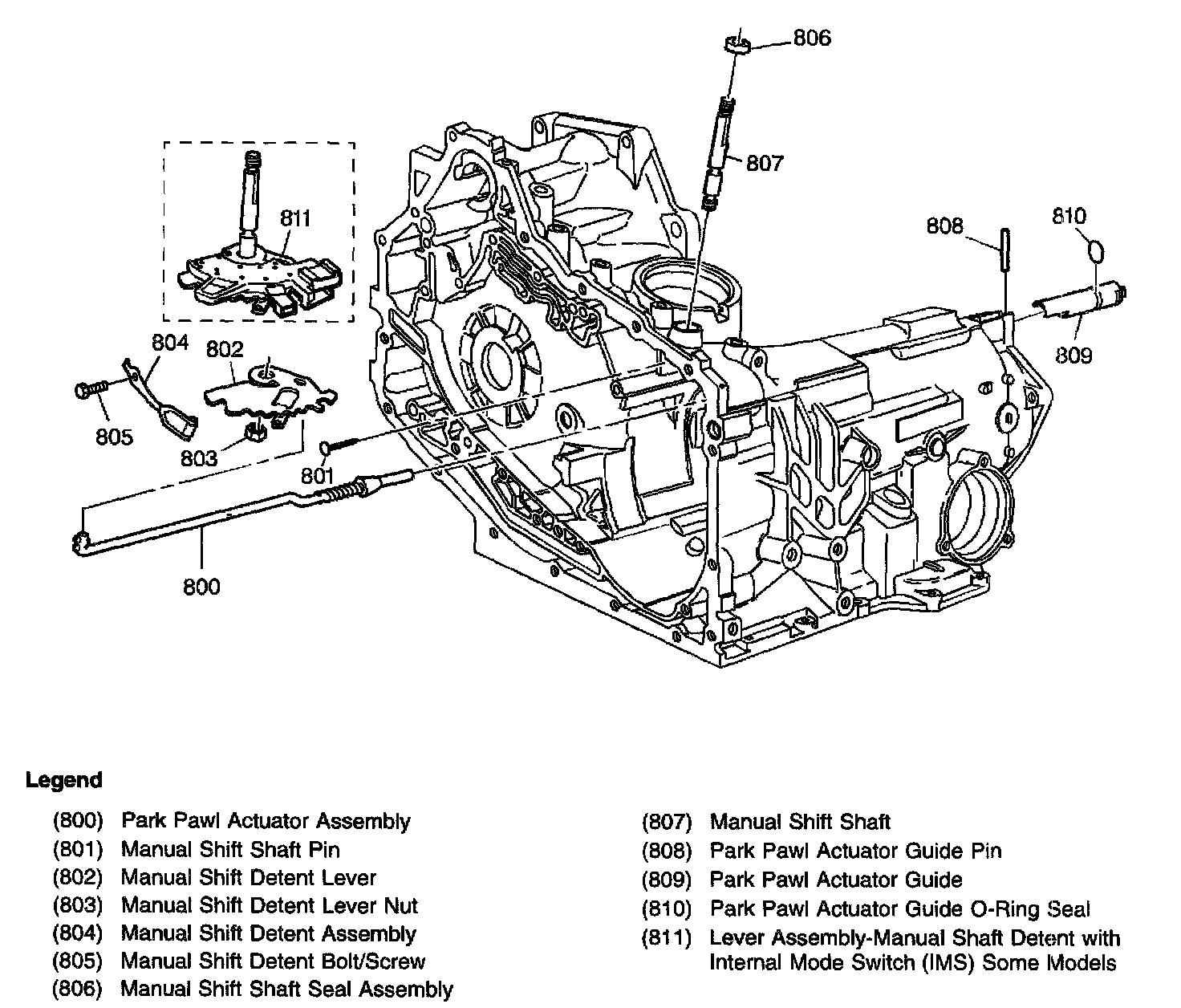

Manual Shaft and Parking System Assembly
