Shift Lock Control Component Views

Automatic Transmission Shift Lock Control Component Views

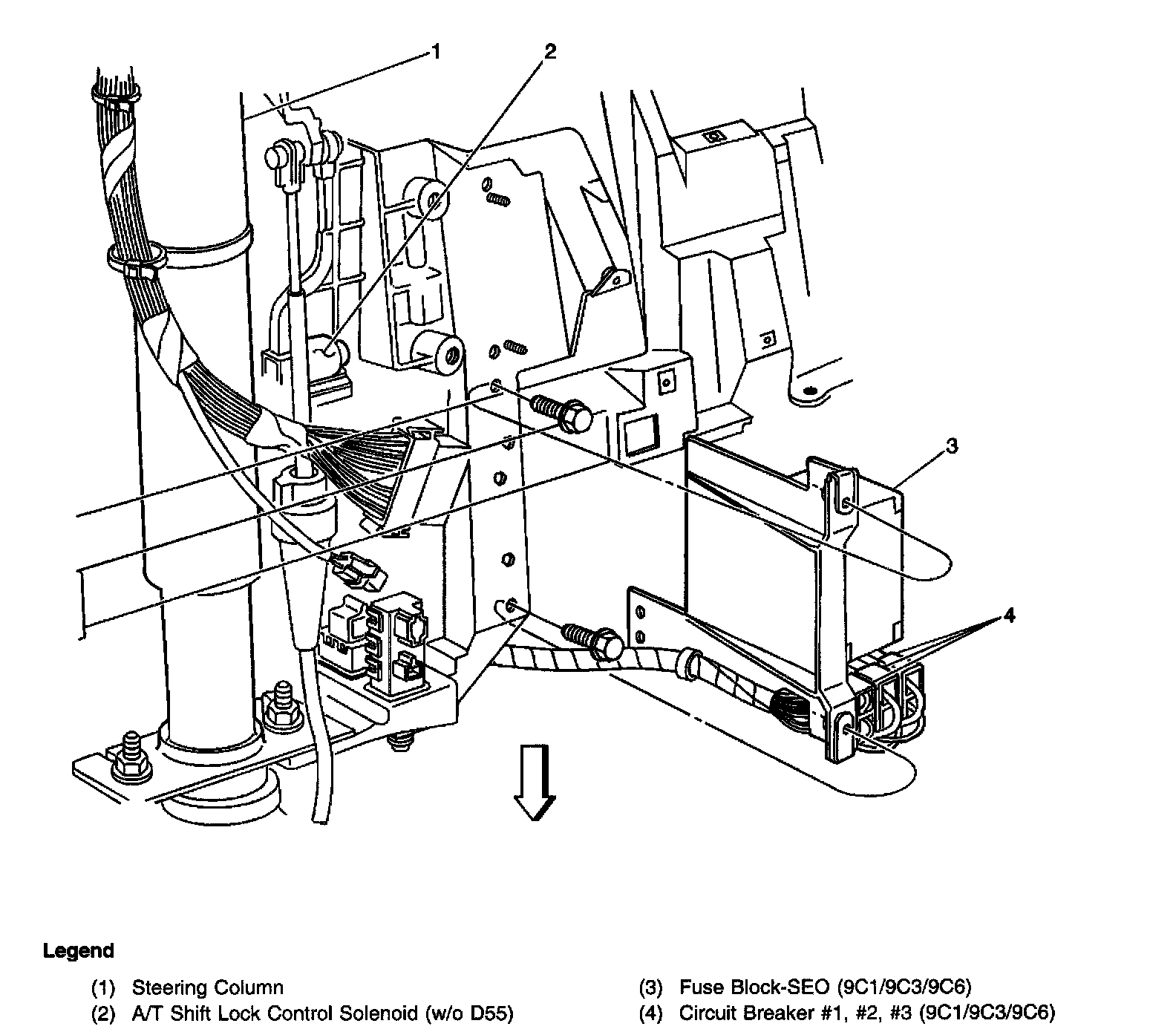

Lower Center of Instrument Panel

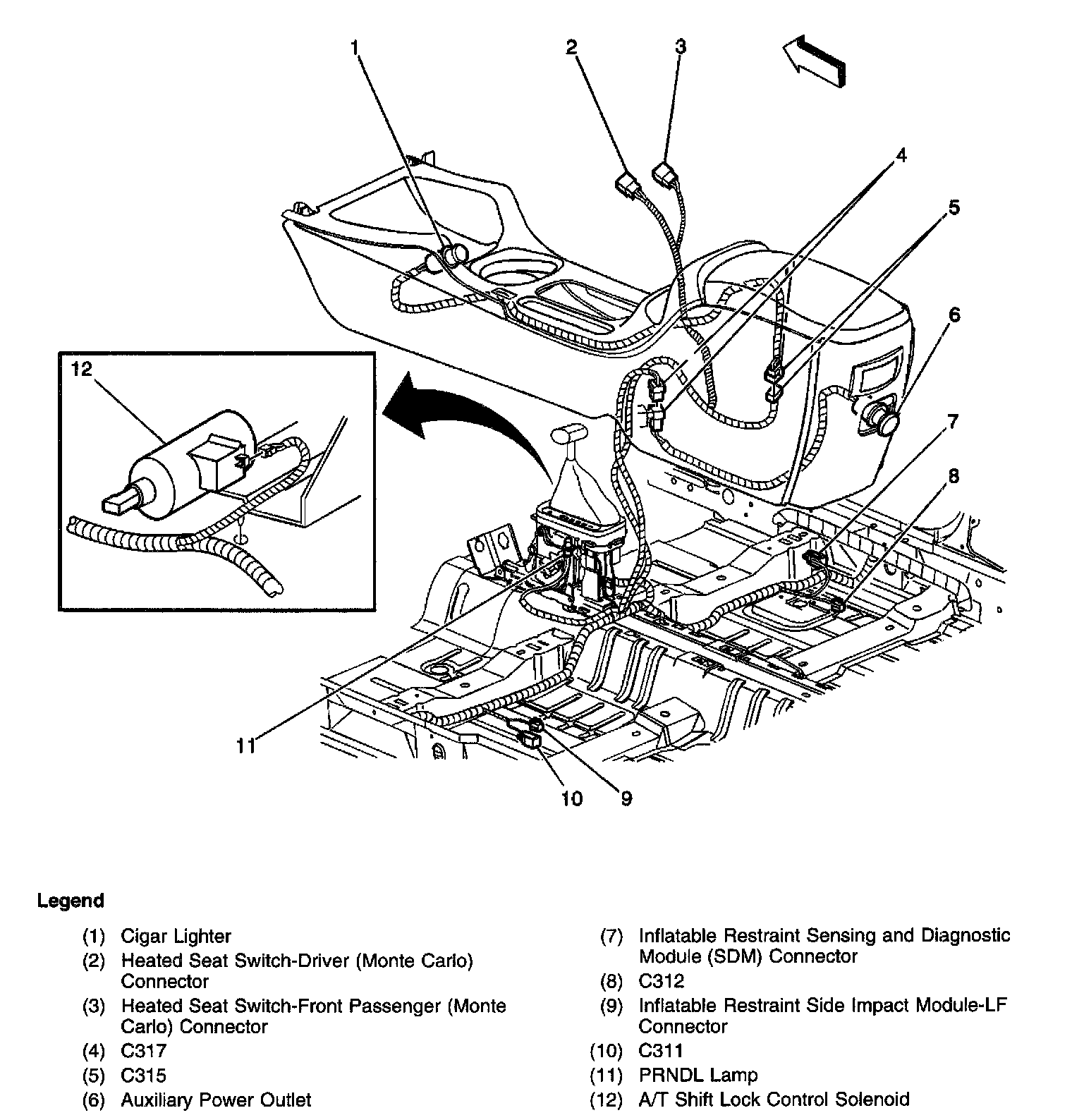

Console and Center of Floor
