Removal Procedure
- Position the rear door window to the full up position.
- Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .

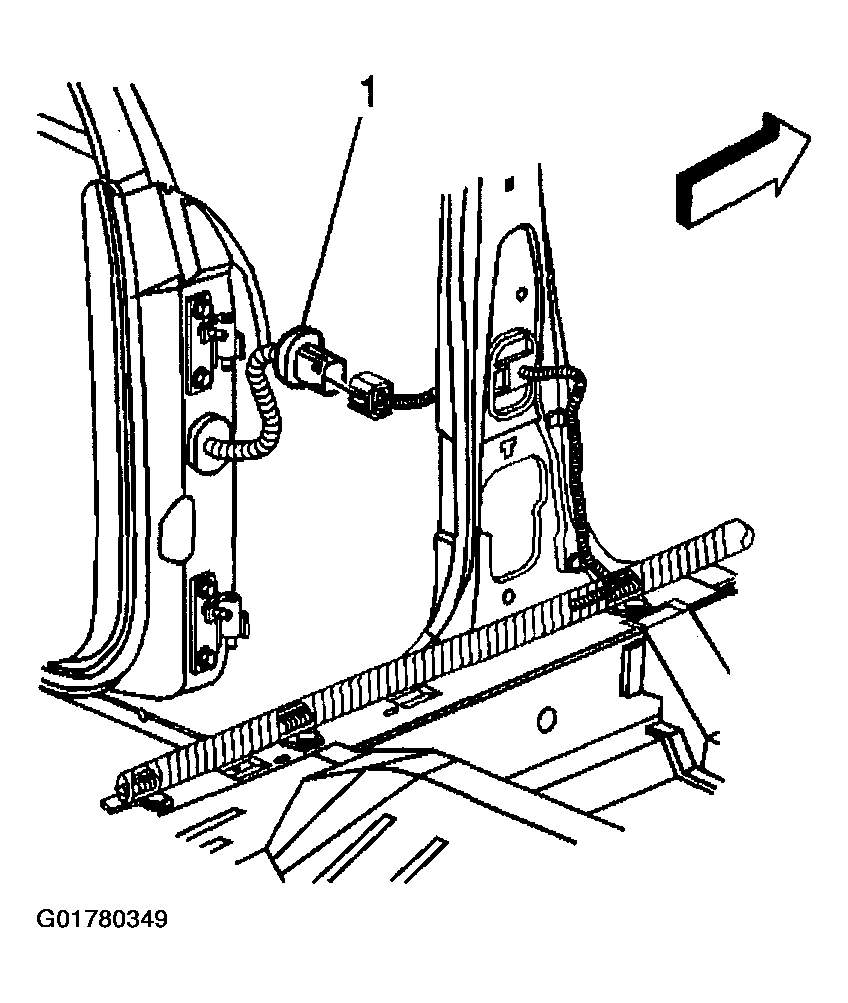

- Disconnect the rubber conduit from the rear door pillar.
- Disconnect the rear door wiring harness (1) at the rear door pillar.
- Disconnect the rubber conduit from the rear door.
Courtesy of GENERAL MOTORS CORP.
- Disconnect the rear door wiring harness from the rear door components.
- Disconnect the rear door wiring harness rosebuds from the rear door.
- Route the rear door wiring harness through the opening in the rear door and remove the rear door wiring harness from the rear door.
Courtesy of GENERAL MOTORS CORP.
