Removal Procedure

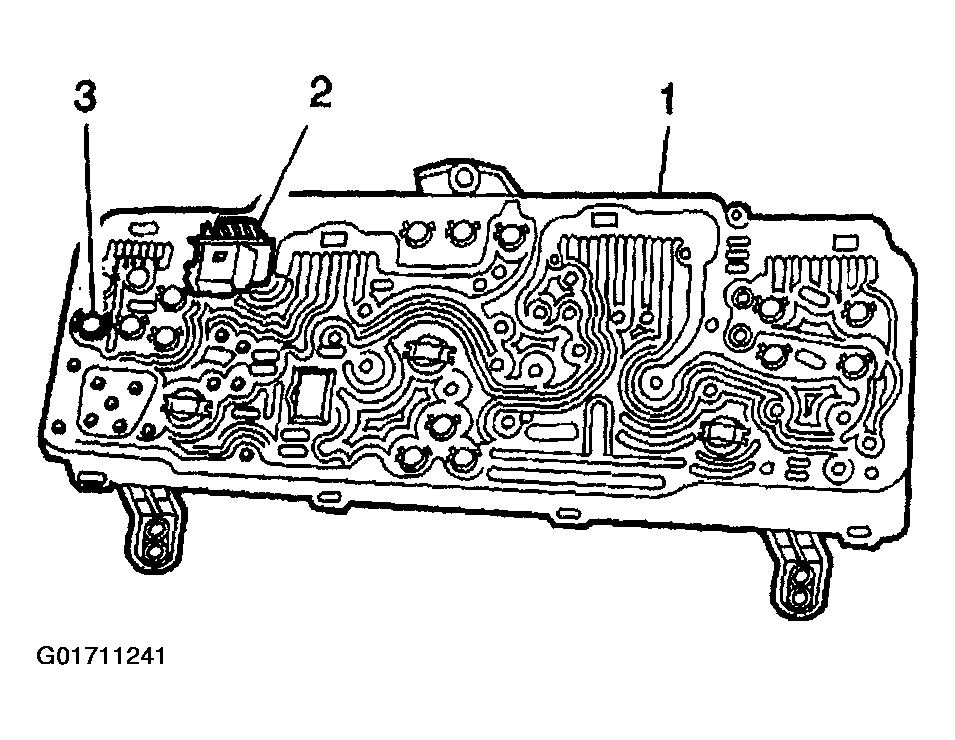

- Remove the Instrument Cluster Assembly (1). Refer to INSTRUMENT PANEL CLUSTER
.
- Remove the Lamp Driver Module (LDM) (2) from the printed circuit.
Courtesy of GENERAL MOTORS CORP.
