Removal Procedure

  1. Using a taped flat bladed tool, gently pry and release the 4 clips around the lamp dimmer switch/remote control rearview mirror switch trim plate (2).

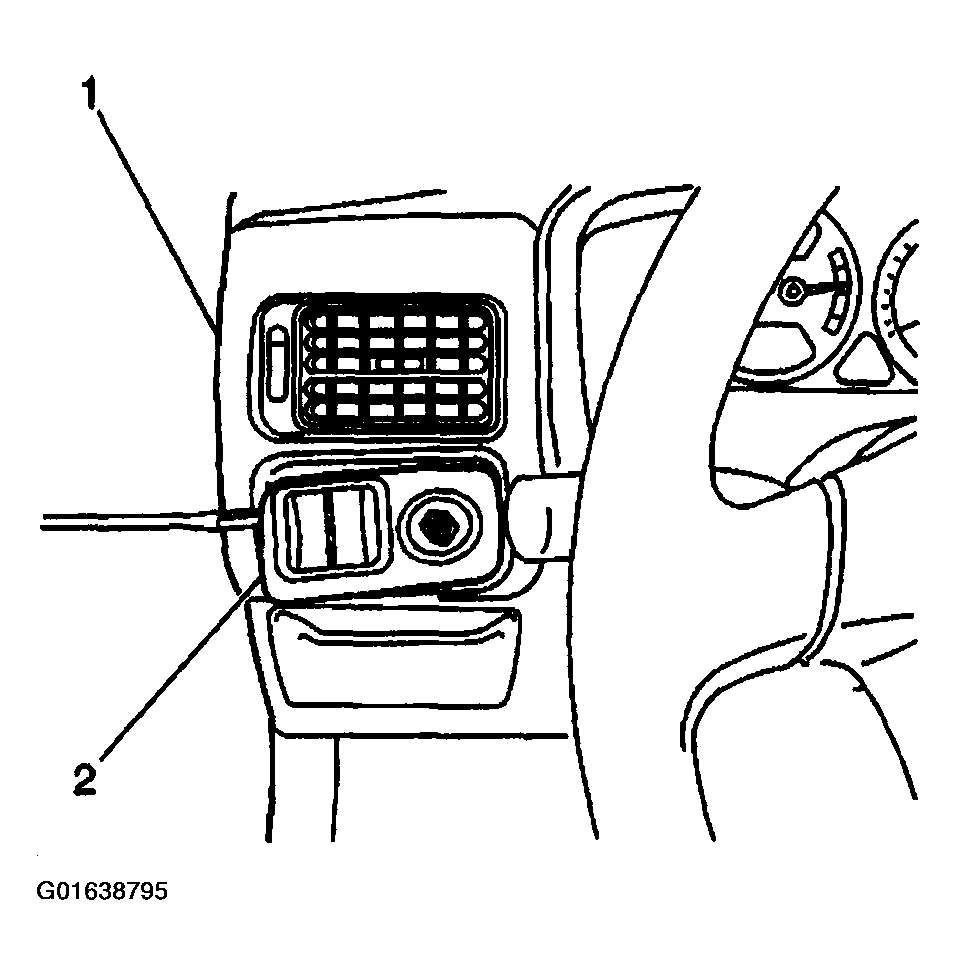

    Fig 1: Releasing 4 Clips Around Lamp Dimmer Switch/Remote Control Rearview Mirror Switch Trim Plate
    G01638795Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the outside remote control rearview mirror switch electrical connector (1).

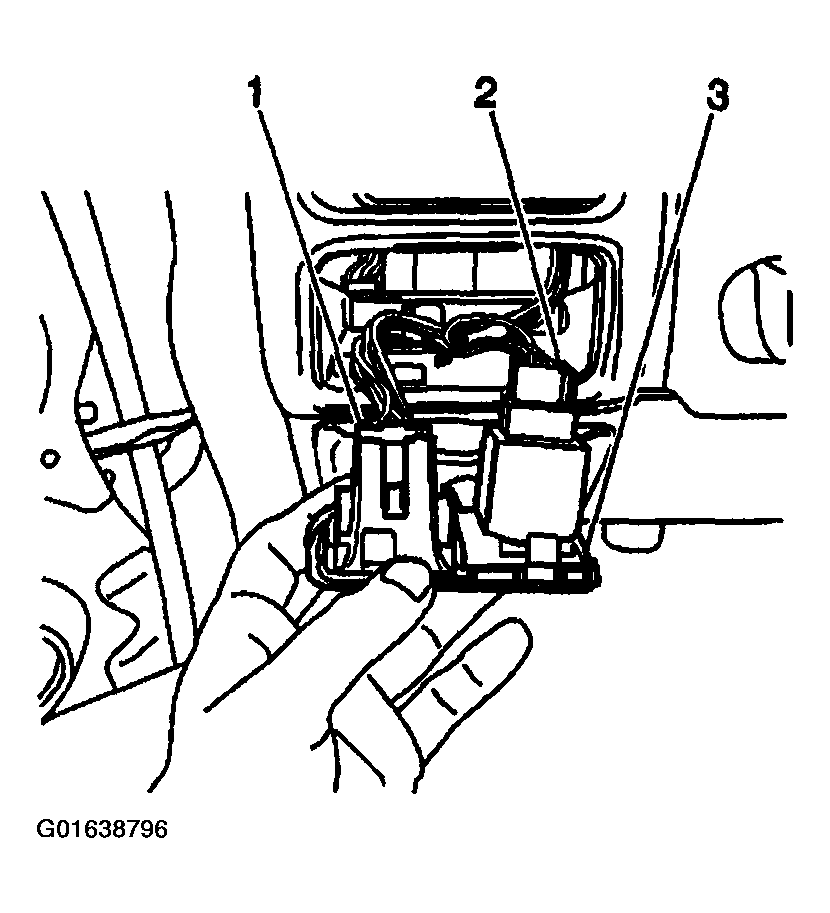

    Fig 2: Disconnecting Outside Remote Control Rearview Mirror Switch Electrical Connector
    G01638796Courtesy of GENERAL MOTORS CORP.
  3. Remove the outside remote control rearview mirror switch from the trim plate by depressing the 4 retaining tabs.
