Installation Procedure

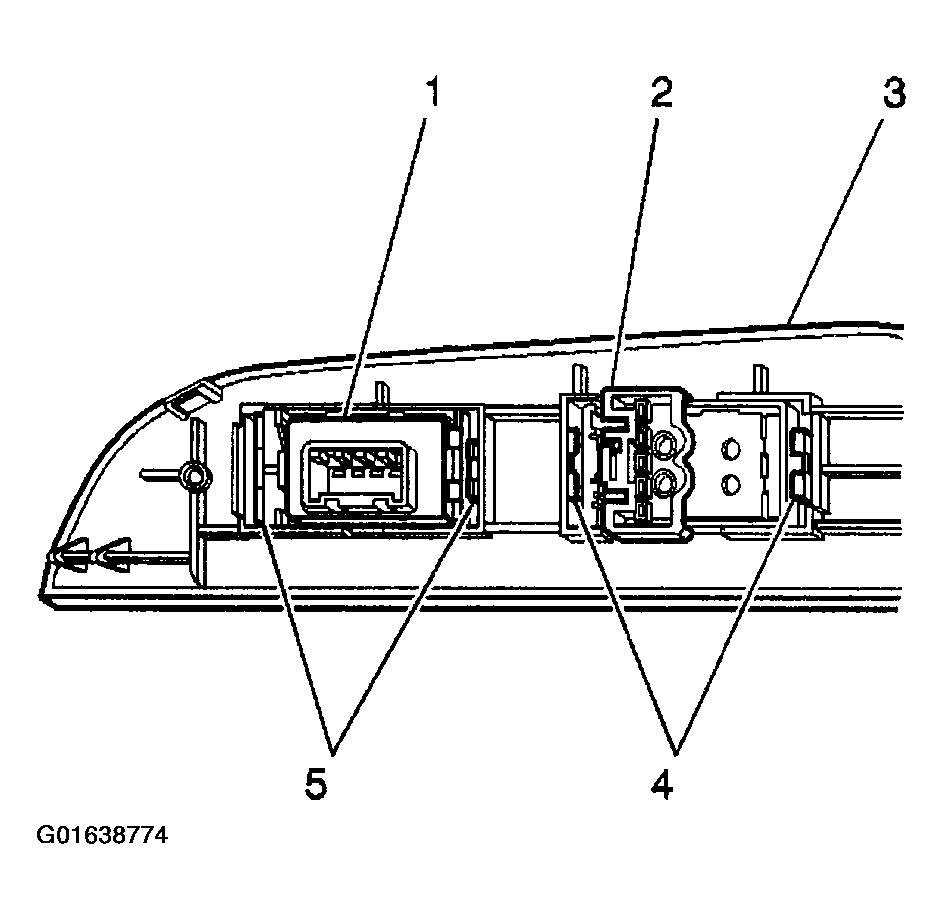

  1. Install the front side door power window switch (2) to the front side door accessory switch mounting plate (3). Ensure that the retaining tabs (4) are completely engaged.
    Fig 1: Installing Front Side Door Power Window Switch
    G01638774Courtesy of GENERAL MOTORS CORP.
  2. Connect the front side door power window switch electrical connector (2).
    Fig 2: Connecting Front Side Door Power Window Switch Electrical Connector
    G01638775Courtesy of GENERAL MOTORS CORP.
  3. Install the front side door accessory switch mounting plate (1) to the front side door trim (2).
    Fig 3: Installing Front Side Door Accessory Switch Mounting Plate
    G01638776Courtesy of GENERAL MOTORS CORP.
