Removal Procedure

  1. Disconnect the map lamp electrical connector if equipped.
  2. Slide upward and remove the rearview mirror from the support bracket that is mounted on the windshield.

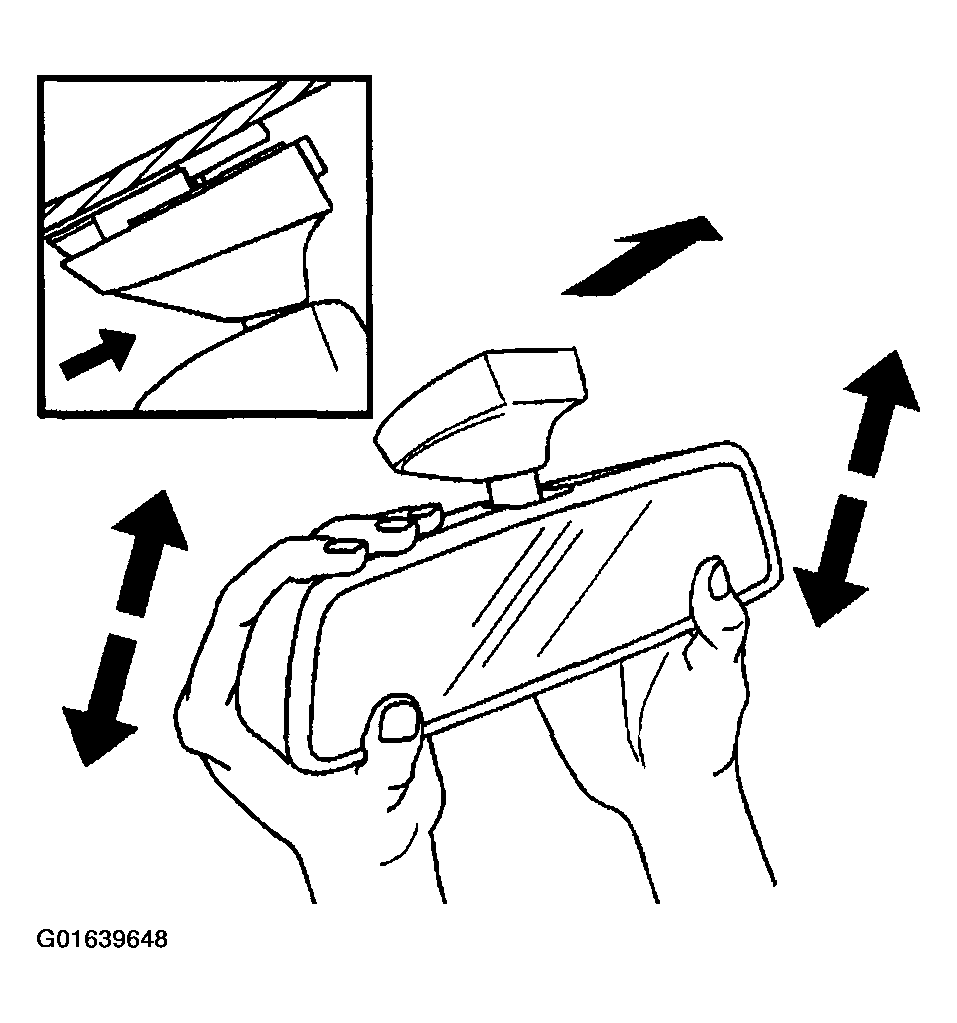

    Fig 1: Removing Mirror
    G01639648Courtesy of GENERAL MOTORS CORP.
