Instrument Cluster Assembly Connector End View C2

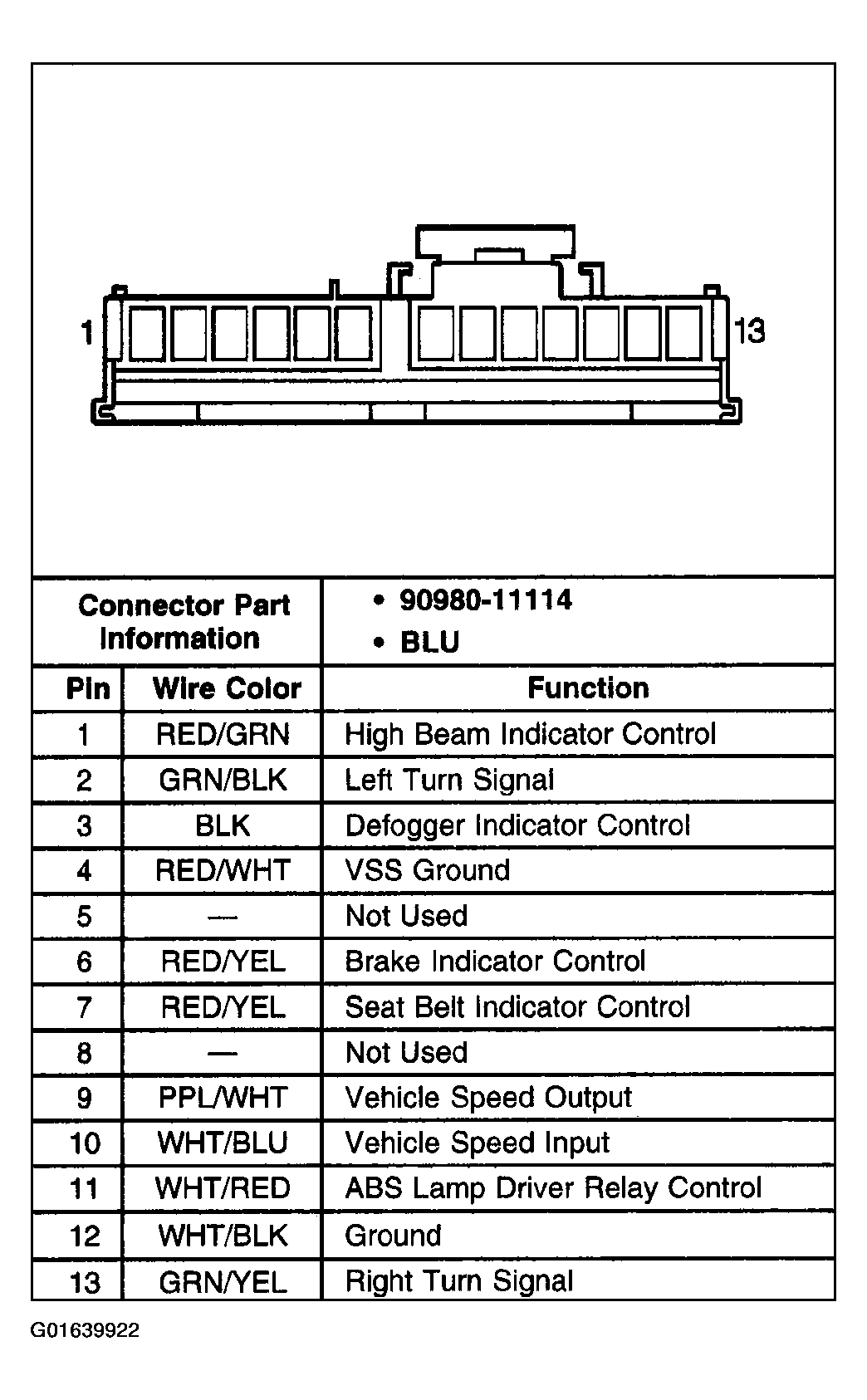

Fig 1: Instrument Cluster Assembly C2
Courtesy of GENERAL MOTORS CORP.
