Engine Compartment Fuse Blocks: Notes
NOTE:

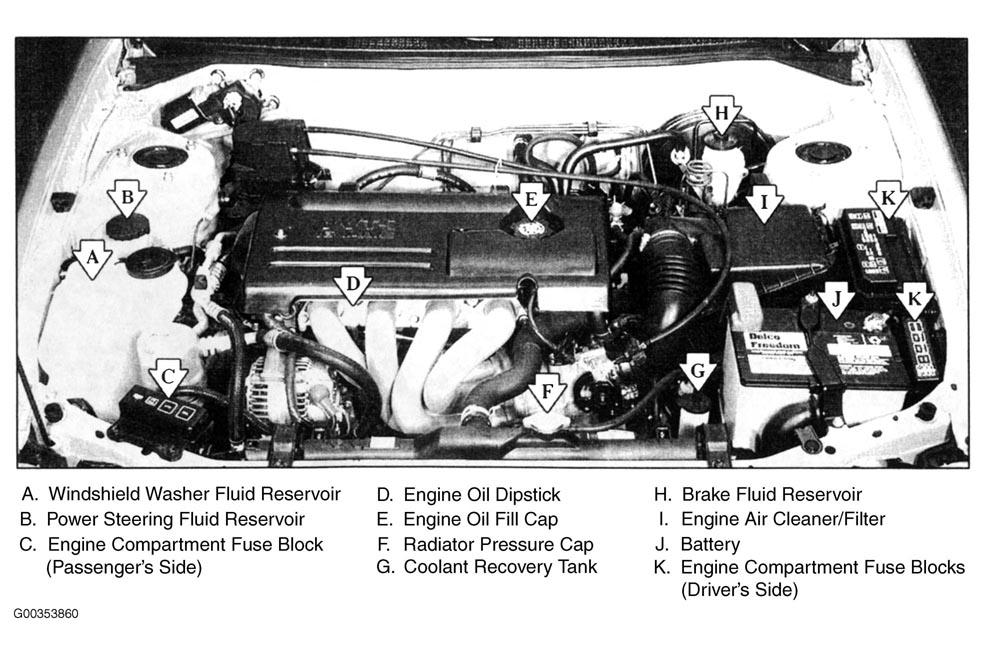

Most of the vehicle's fuses are in the engine compartment fuse block. Some are in three electrical centers in the engine compartment. See Fig 1. These electrical centers also have relays, circuit breakers and other electrical components. The larger electrical center in the engine compartment has a fuse puller located between the EFI and FAN relays.
