Checking Fluid Levels

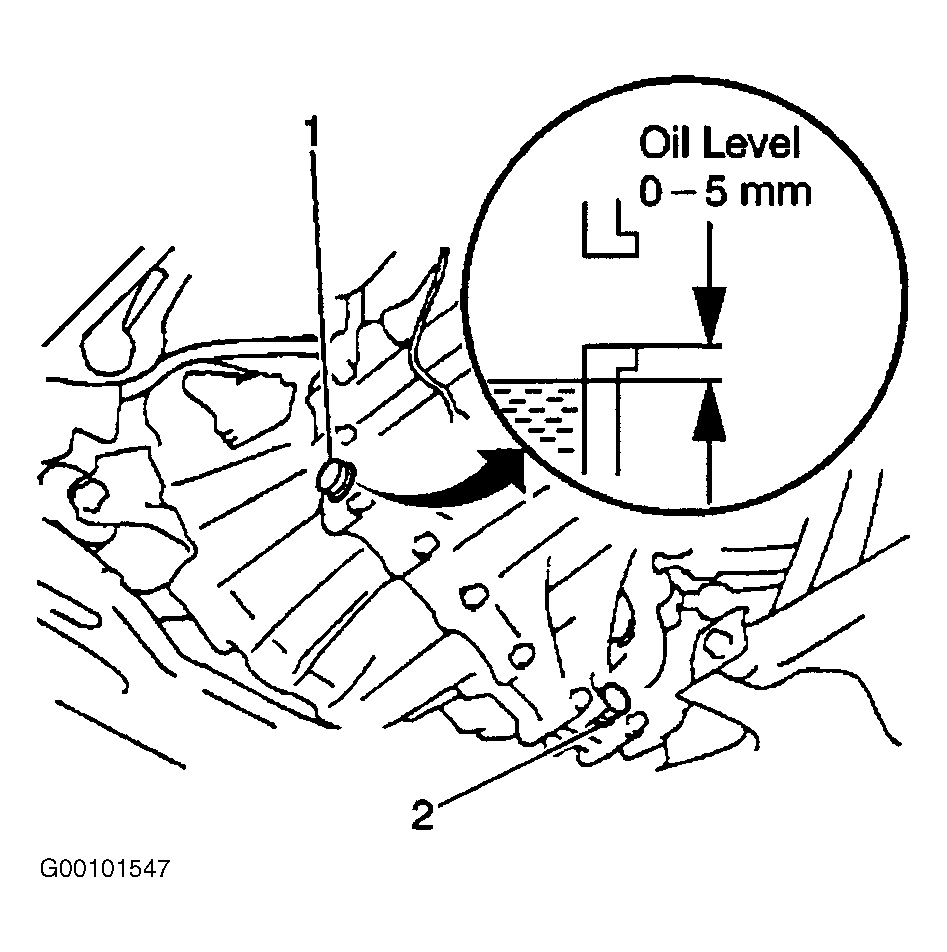

- Raise and suitably support the vehicle. Remove the transaxle oil level/filler plug (1) from the transaxle. See Fig 1
. Inspect the transaxle oil level.
- Ensure the oil level is even with the bottom of the transaxle oil level/filler plug hole. If the oil level is low, adjust the oil level accordingly by adding appropriate fluid. See RECOMMENDED FLUIDS
.
- Install the transaxle oil level/filler plug into the transaxle after applying Sealant (GM P/N 12346004), or the equivalent, in order to seal the oil level/filler plug threads. Tighten the transaxle oil level/filler plug to specification. See TORQUE SPECIFICATIONS
. Lower the vehicle.
Courtesy of GENERAL MOTORS CORP.
