Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a 3-volt CR2016 battery or the equivalent. Install the battery (2) with the positive side up.
  2. Close the transmitter case (6,4).
  3. Ensure that the seal is in position. Align the 2 halves of the case (6,4) and snap the halves together.
  4. Verify the operation of the transmitter.
  5. Synchronize the transmitter if necessary. Refer to TRANSMITTER SYNCHRONIZATION  .

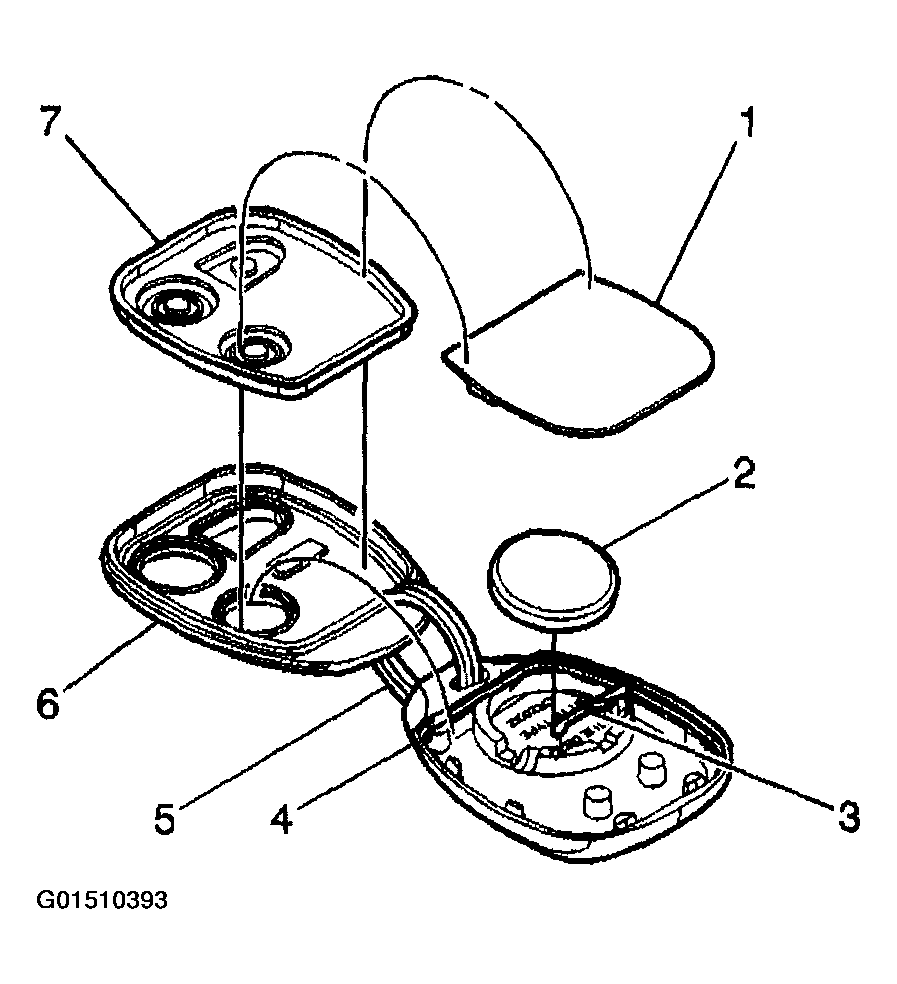

    Fig 1: Installing Battery & Closing Transmitter Case
    G01510393Courtesy of GENERAL MOTORS CORP.
