Installation Procedure

Apply J 36850 to the input shaft bearing retainer seal surface.

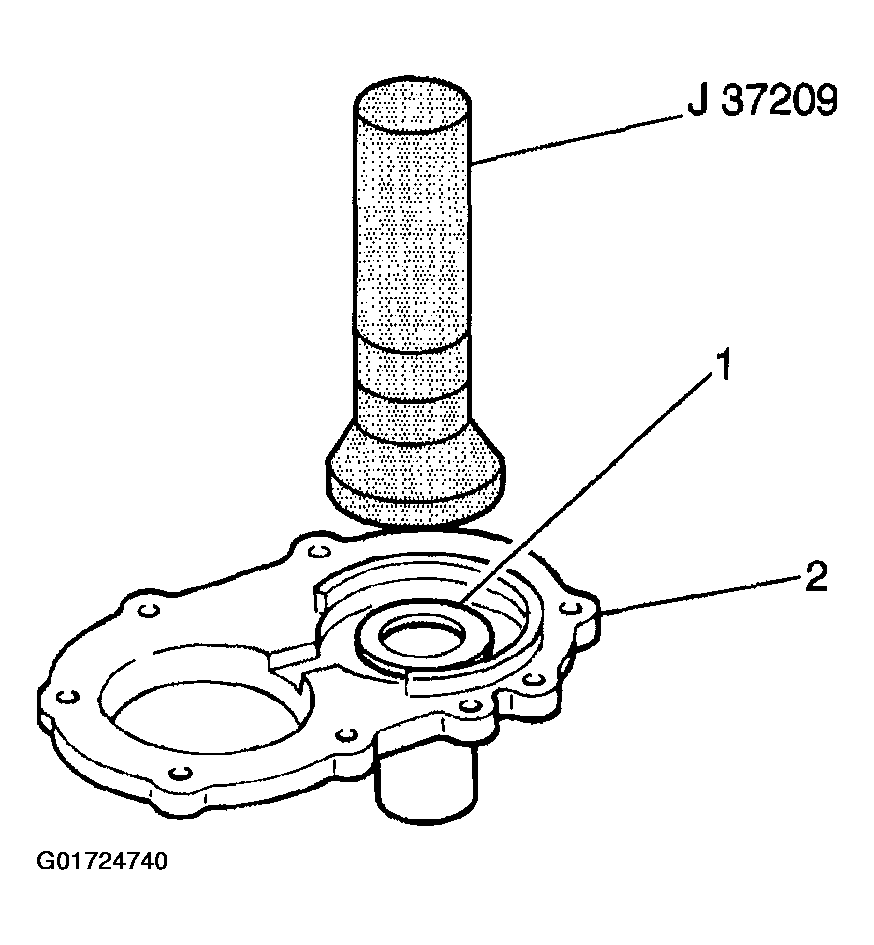

Use a hammer and the J 37209 in order to install the new front input shaft oil seal (1) into the input shaft bearing retainer (2).

Fig 1: Front Input Shaft Oil Seal, Input Shaft Bearing Retainer & J 37209
Courtesy of GENERAL MOTORS CORP.

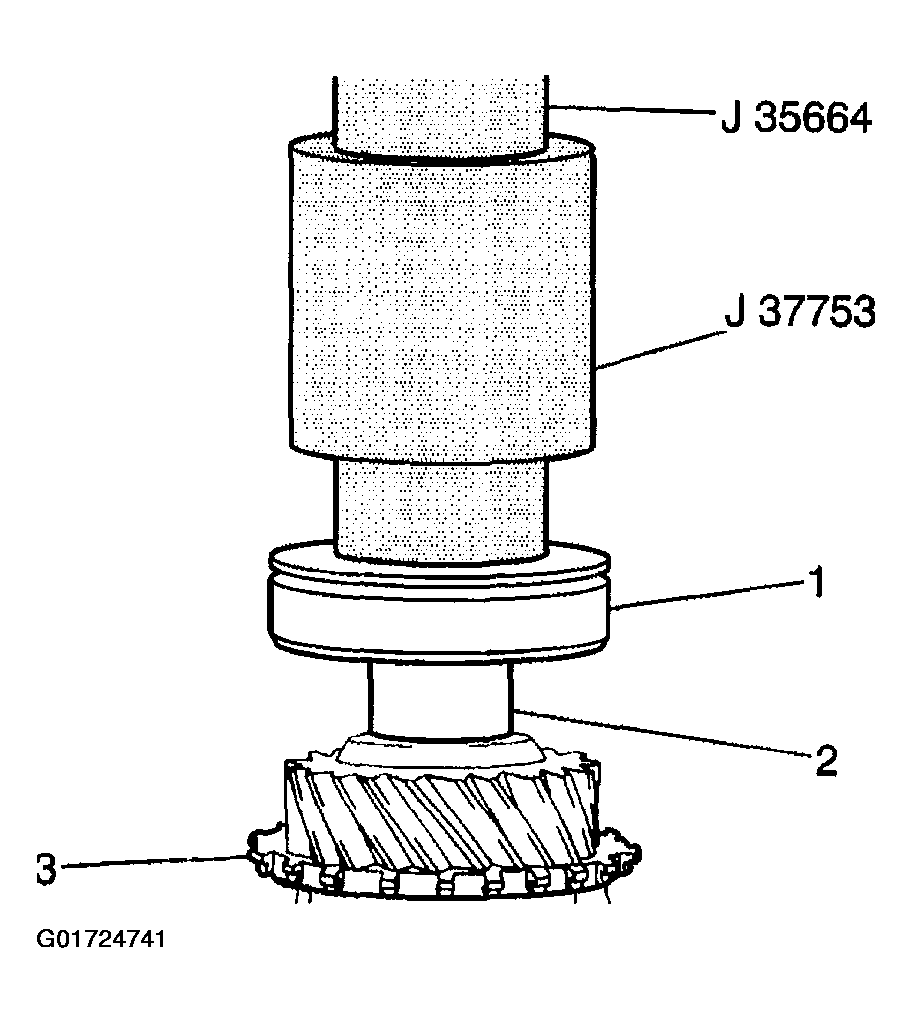

Use the J 37753 with the J 35664 and a press arbor in order to install the front input shaft bearing (1) onto the input shaft (2).

Fig 2: Installing Front Input Shaft Bearing Using J 37753 & J 35664
Courtesy of GENERAL MOTORS CORP.
Install the front input shaft bearing C-clip (2) onto the input shaft.
Air-blow the lubrication oil hole (1).
Apply J 36850 to the input shaft needle bearing.

Fig 3: Front Input Shaft Bearing C-Clip & Lubrication Oil Hole
Courtesy of GENERAL MOTORS CORP.

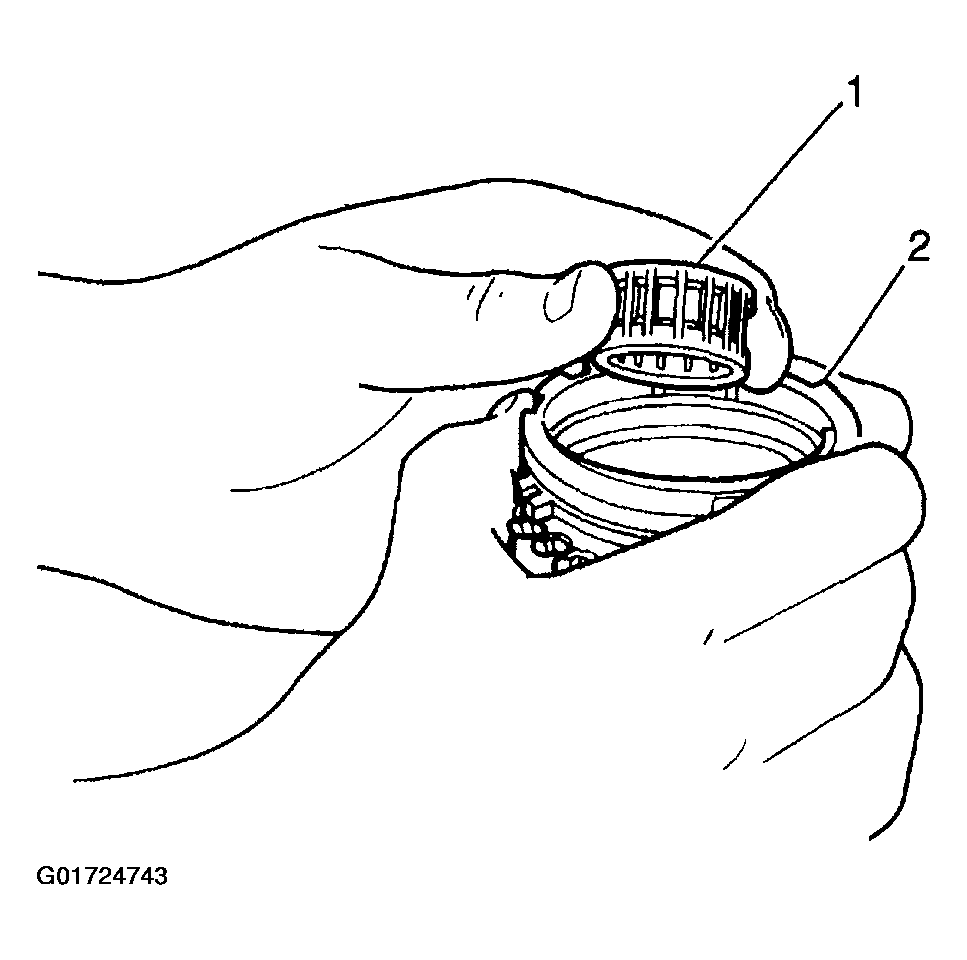

Install the input shaft needle bearing (1) into the input shaft (2).

Fig 4: Input Shaft Needle Bearing & Input Shaft
Courtesy of GENERAL MOTORS CORP.
