System Specifications

Engine Mechanical -1.6L

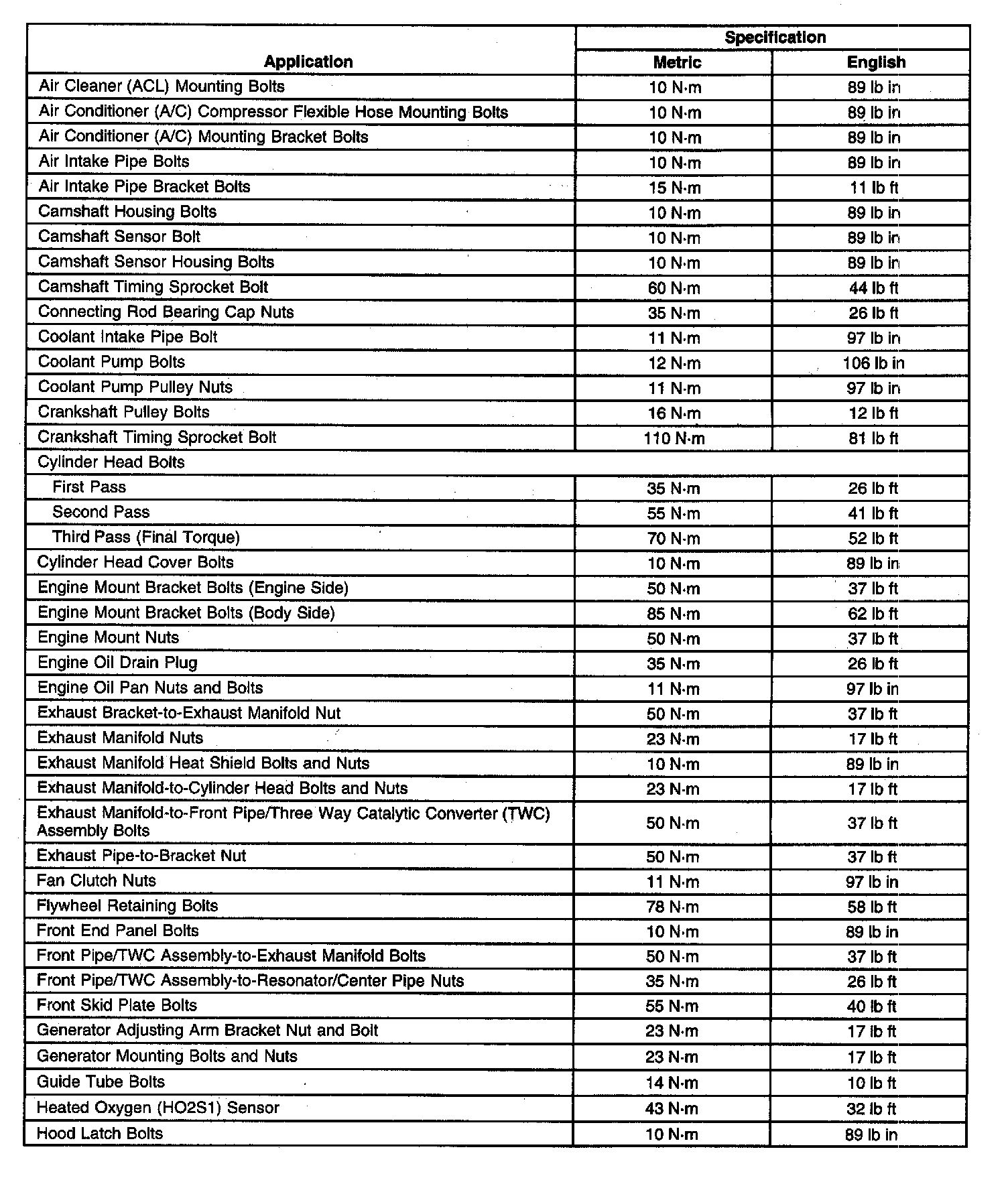

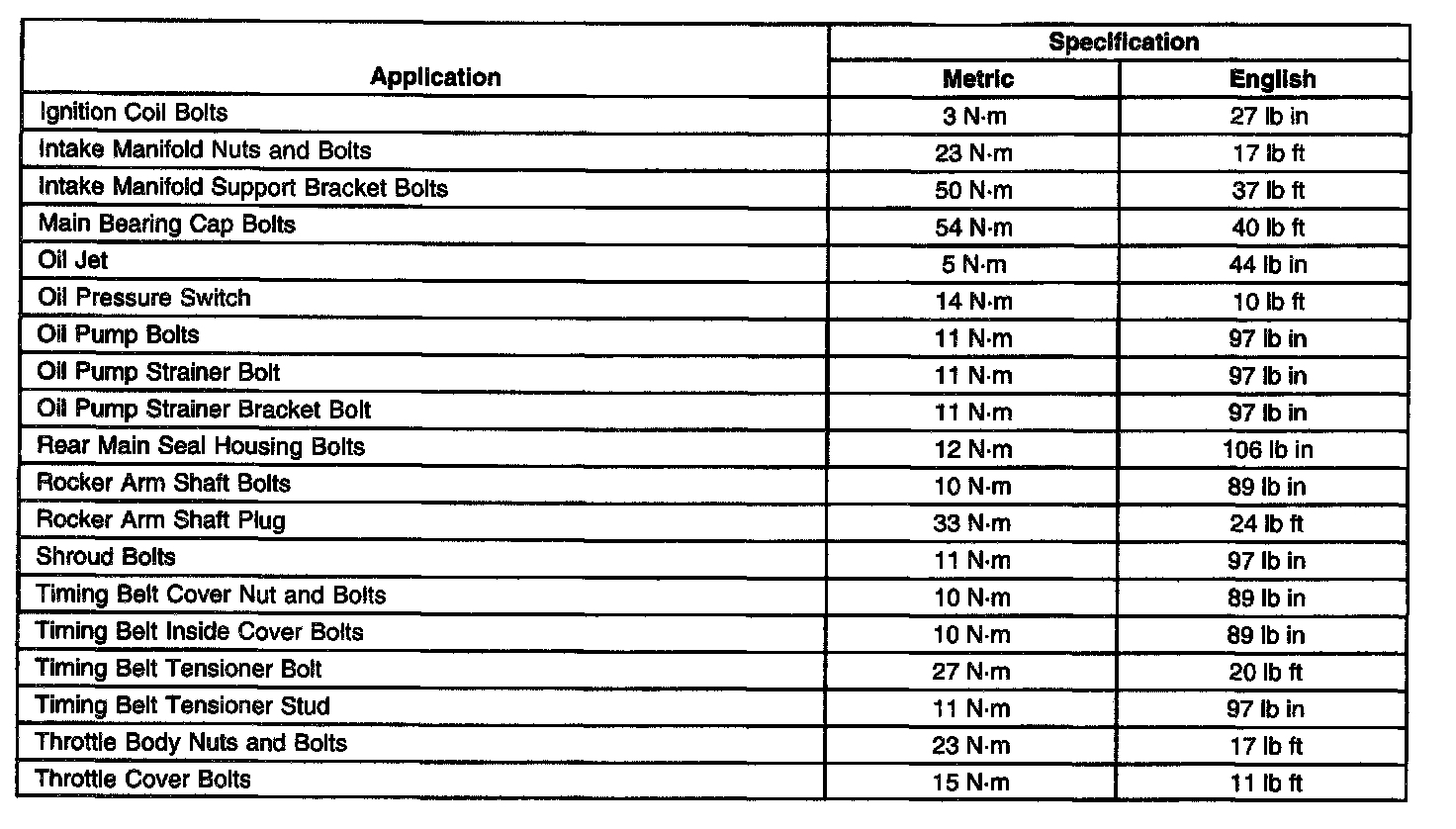

Fastener Tightening Specifications


Engine Mechanical (Unit Repair)

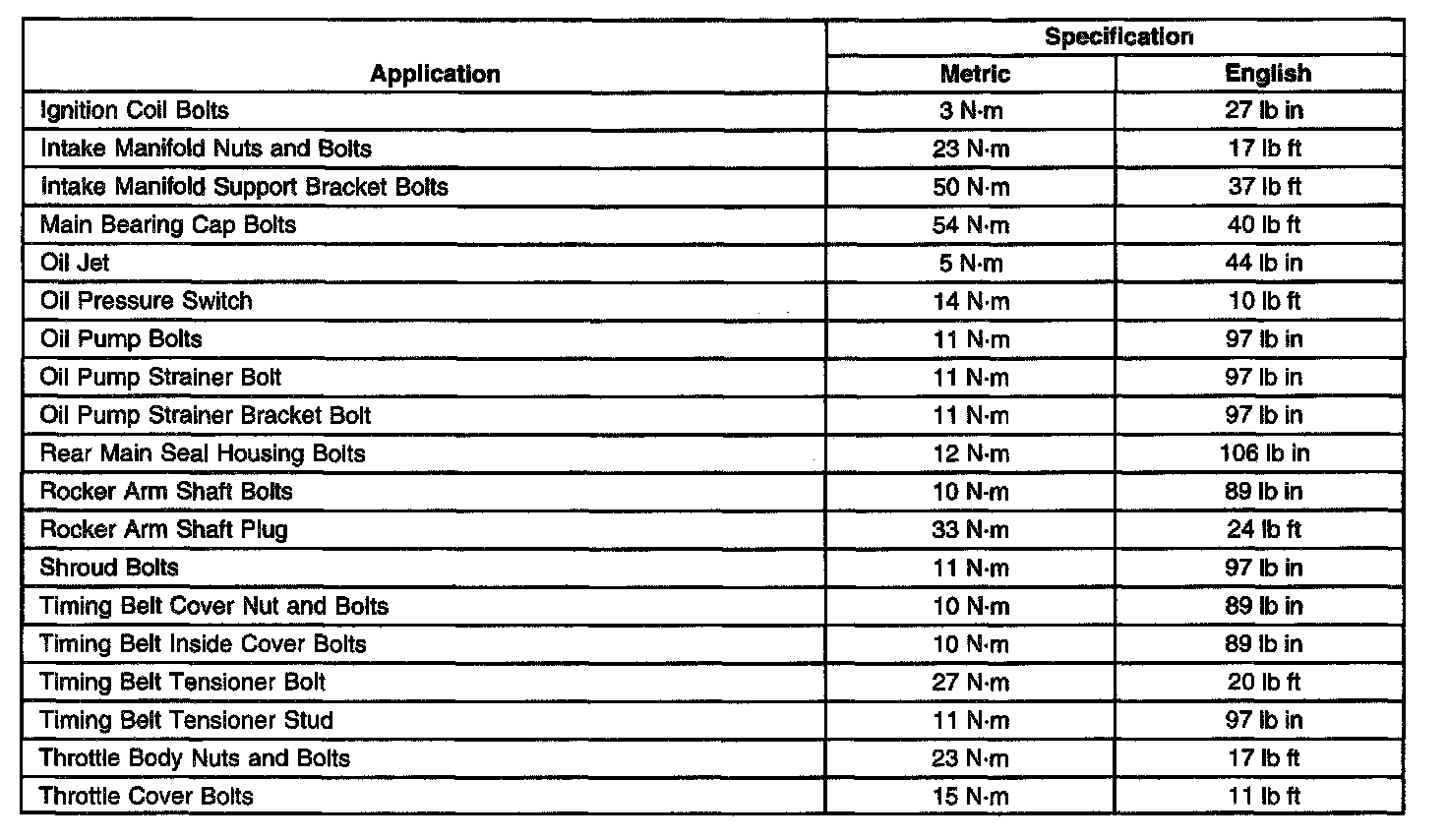

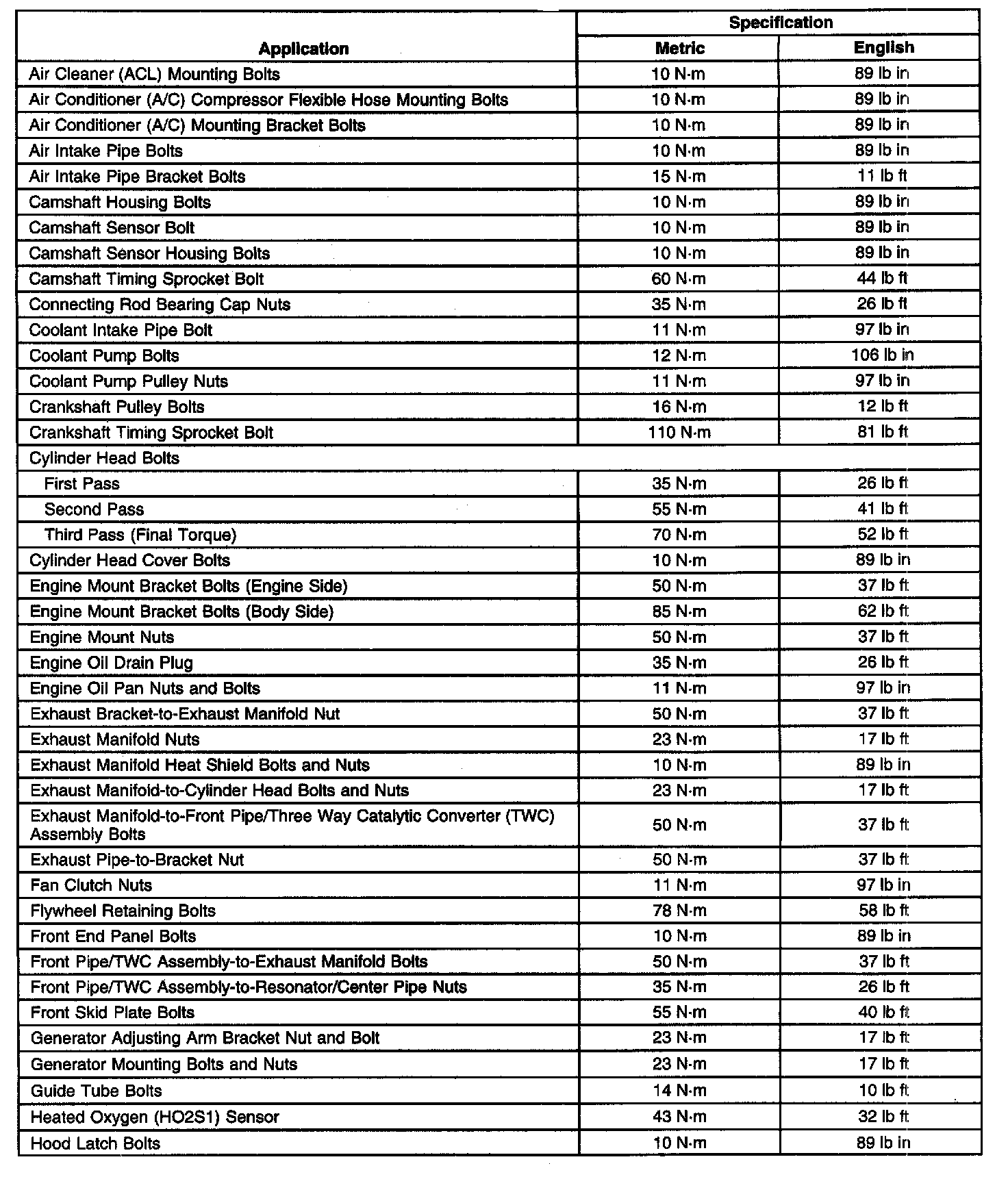

Fastener Tightening Specifications

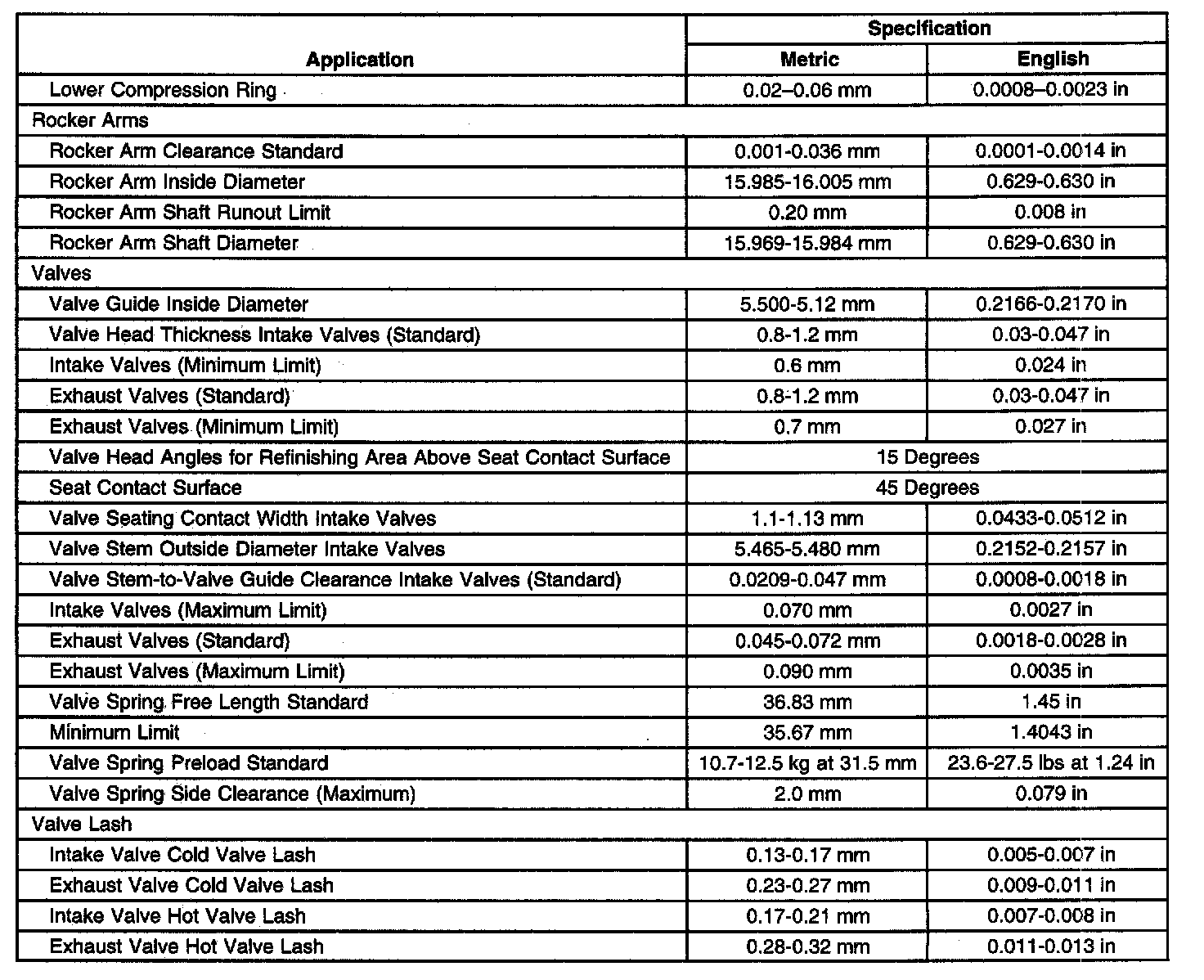

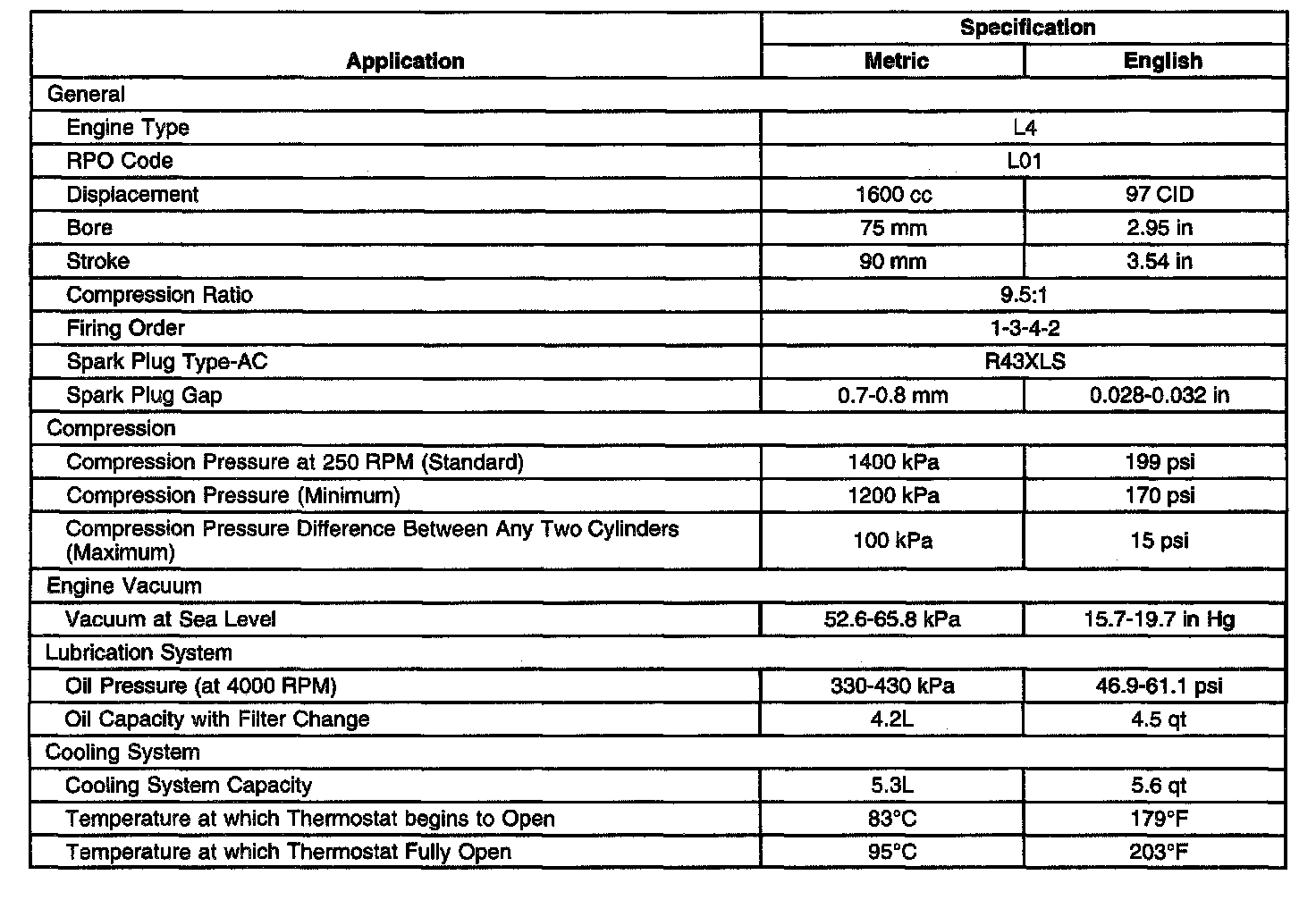

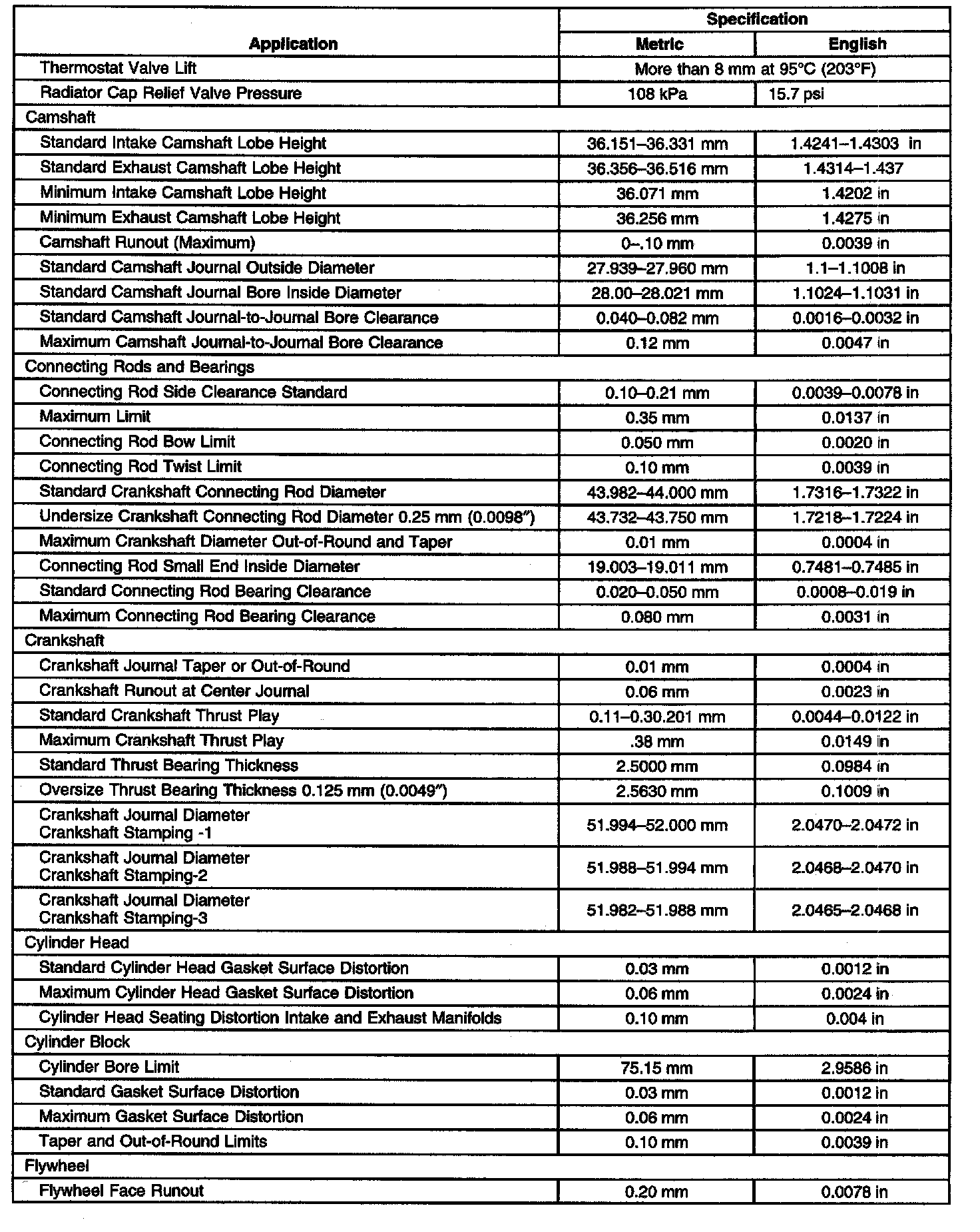

Engine Mechanical Specifications

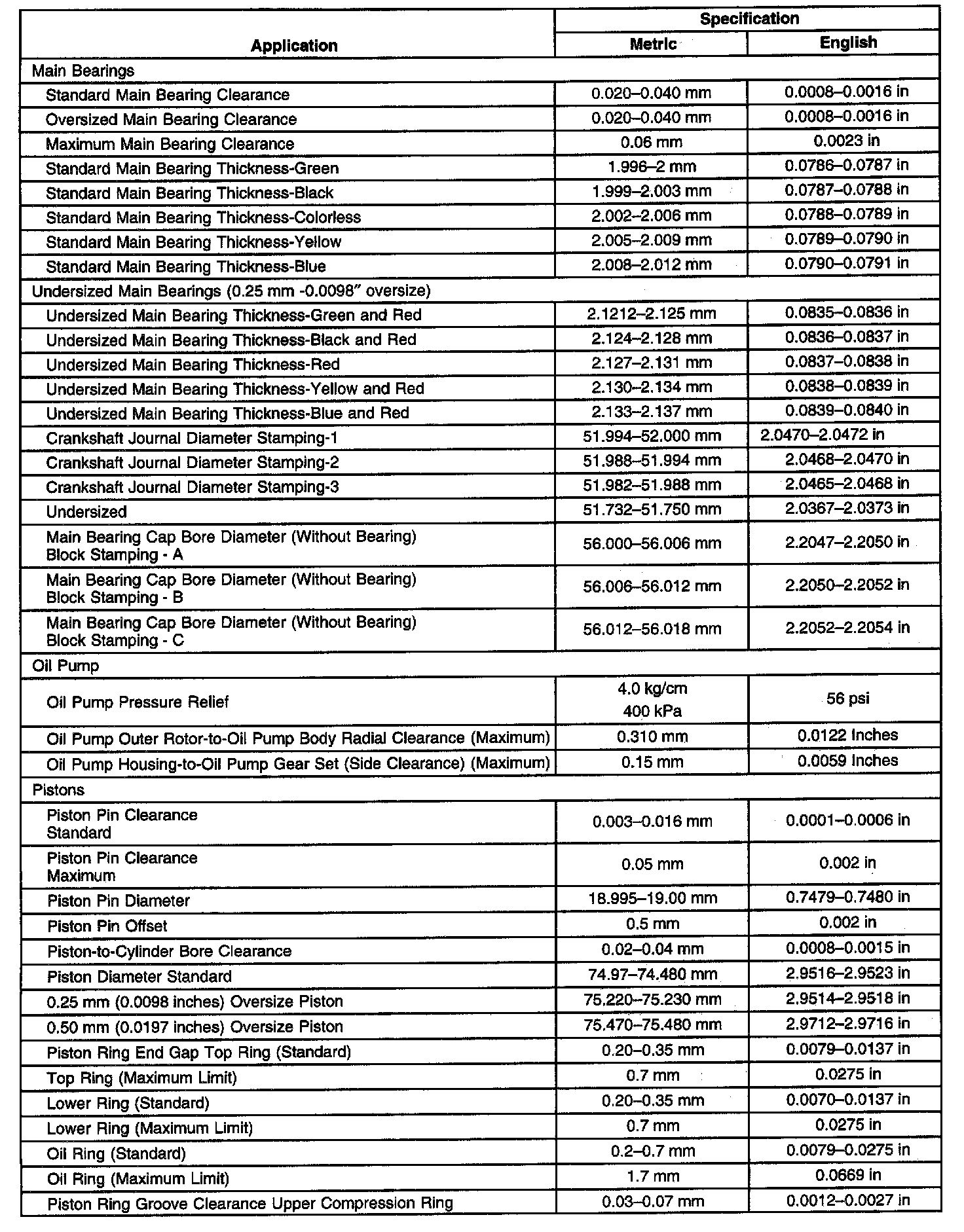

Standard Main Bearing Selection





Undersize Main Bearing Selection





Piston Selection





Cylinder Head Tightening Sequence





Camshaft Cap Tightening Sequence
