Electrical Diagrams

Schematic and Routing Diagrams

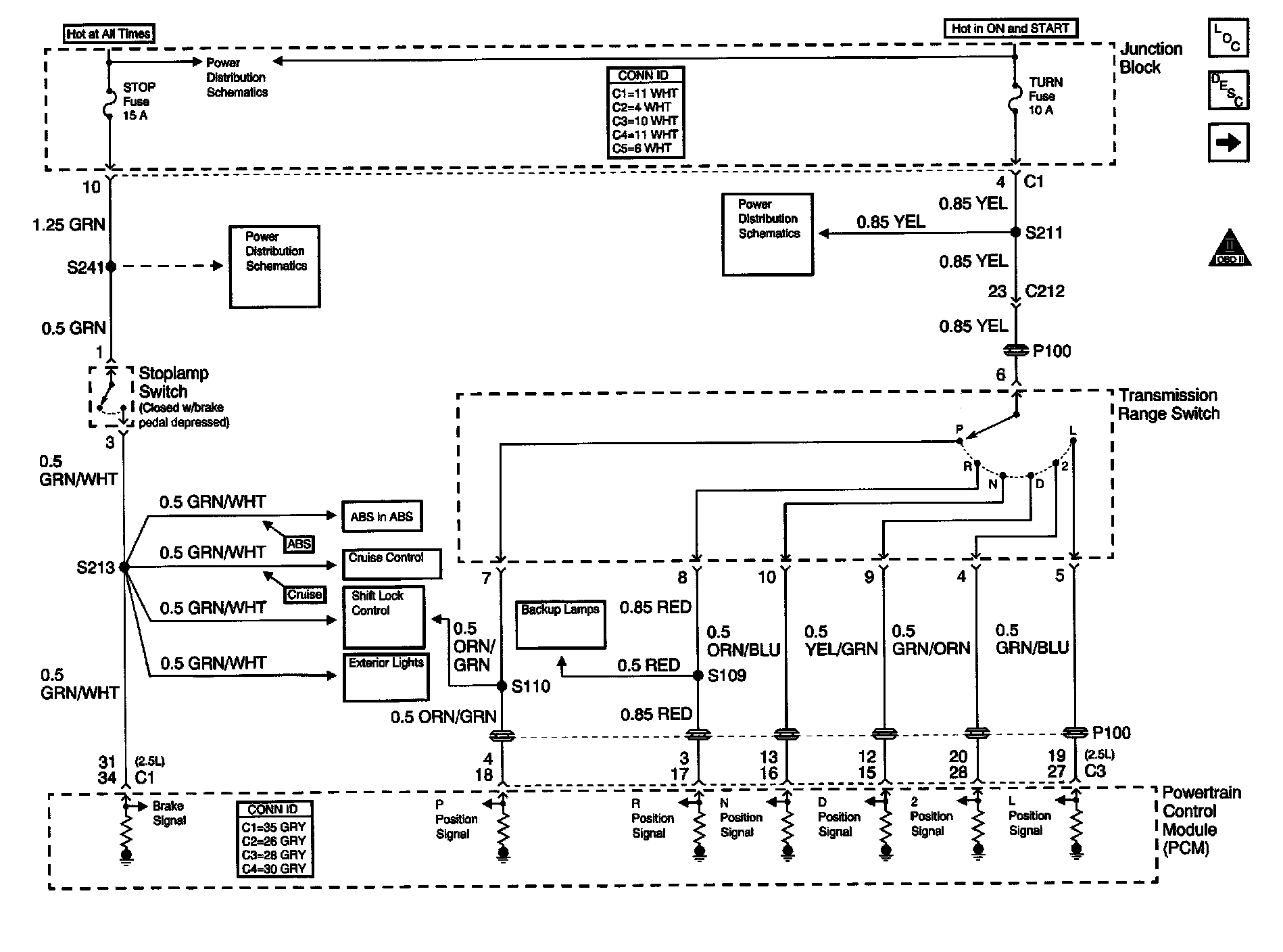

Transmission Range Switch

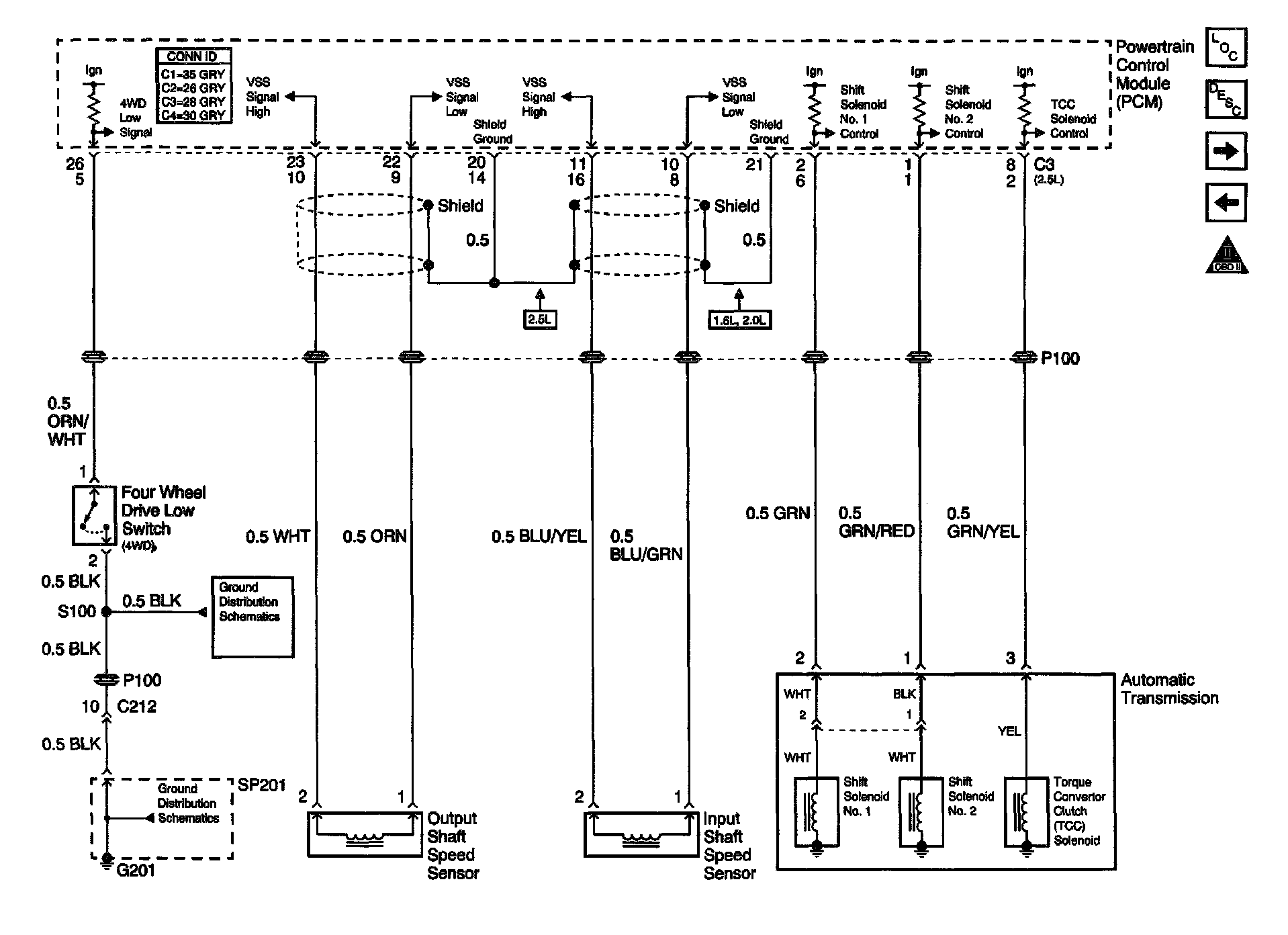

Shift Solenoids and Speed Sensors

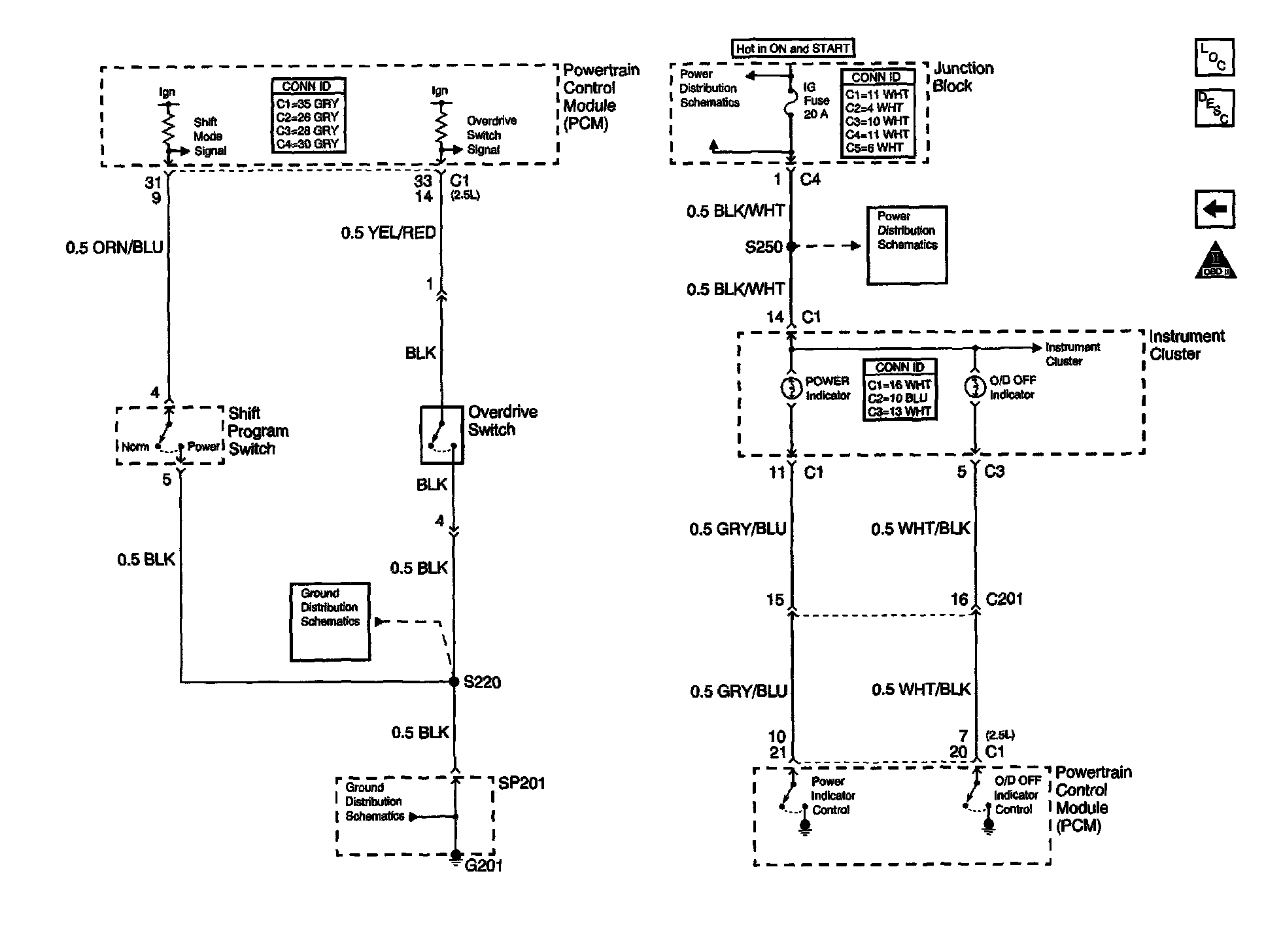

Overdrive and Shift Program Switches
