System Specifications

DIMENSIONAL SPECIFICATIONS





Front Drive Axle Pinion Spacer and Shim Specifications





Rear Axle Pinion Spacer and Shim Specifications





Front Drive Axle Pinion Preload and Backlash





Rear Axle Pinion Preload and Backlash

TIGHTENING SPECIFICATIONS





Propeller Shaft





Front Drive Axle Wheel Drive Shafts

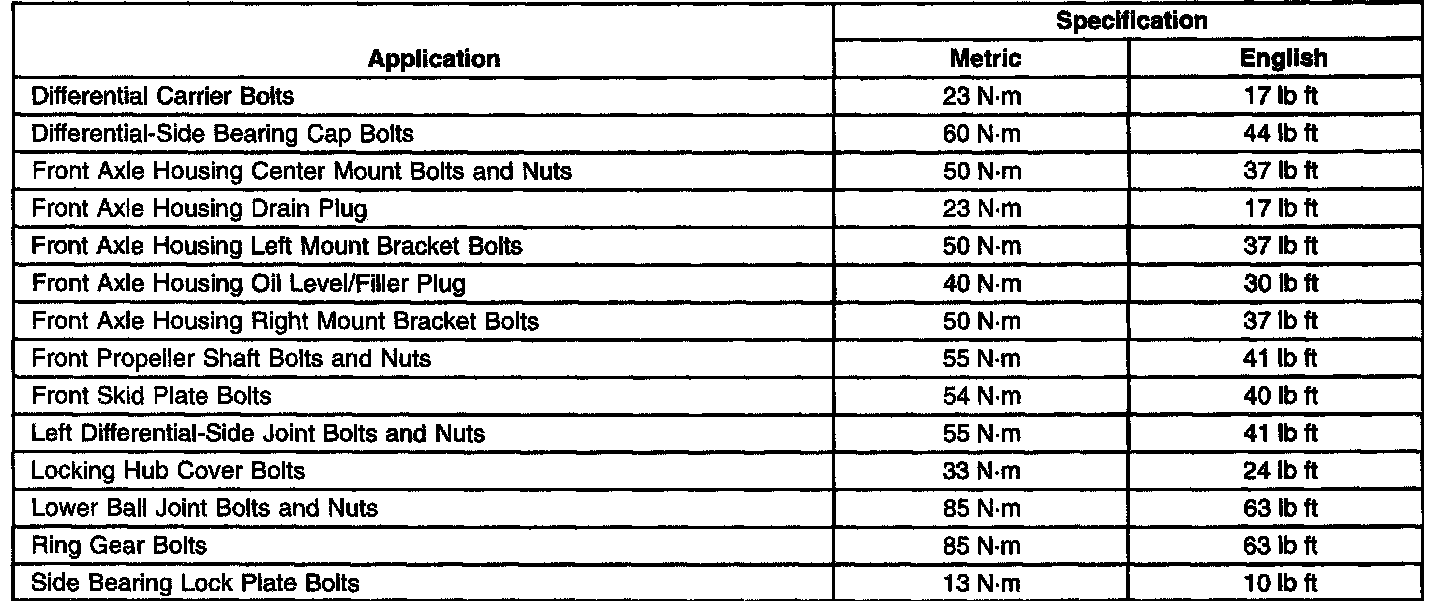

Front Drive Axle Fasteners

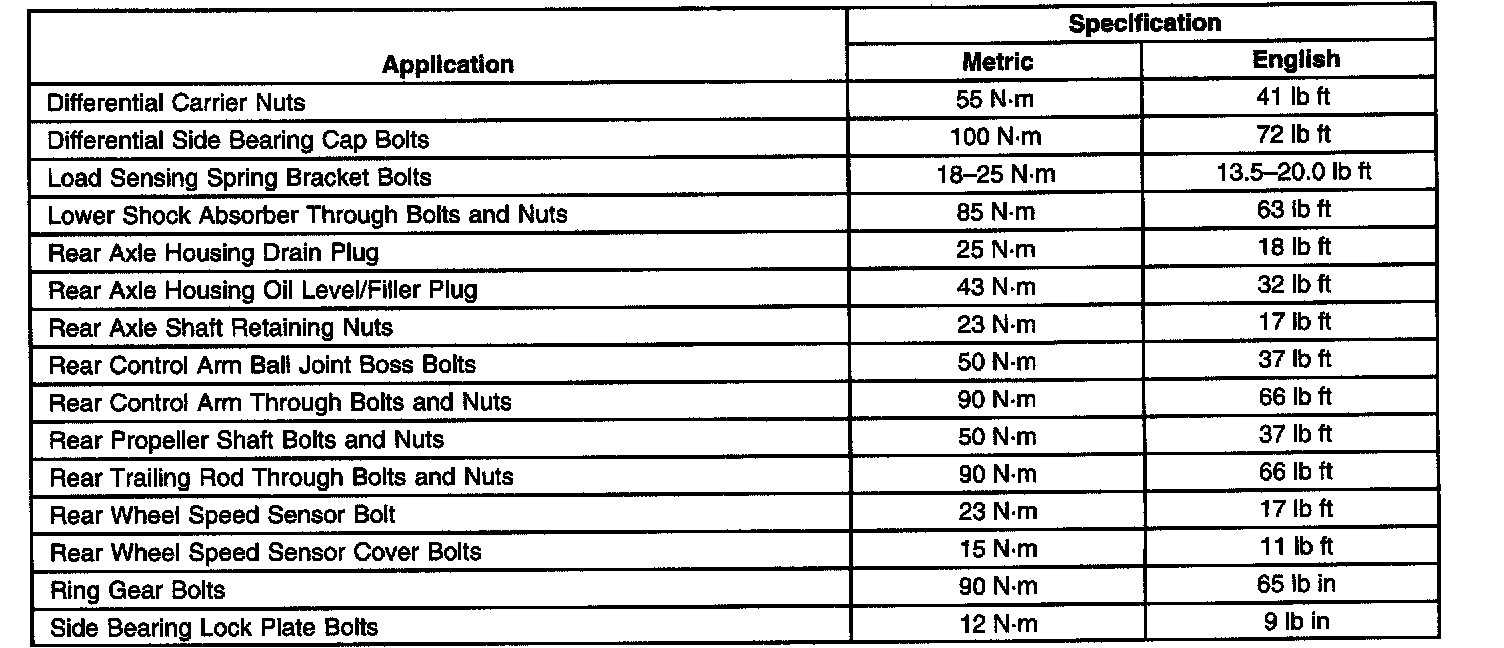

Rear Drive Axle Fasteners

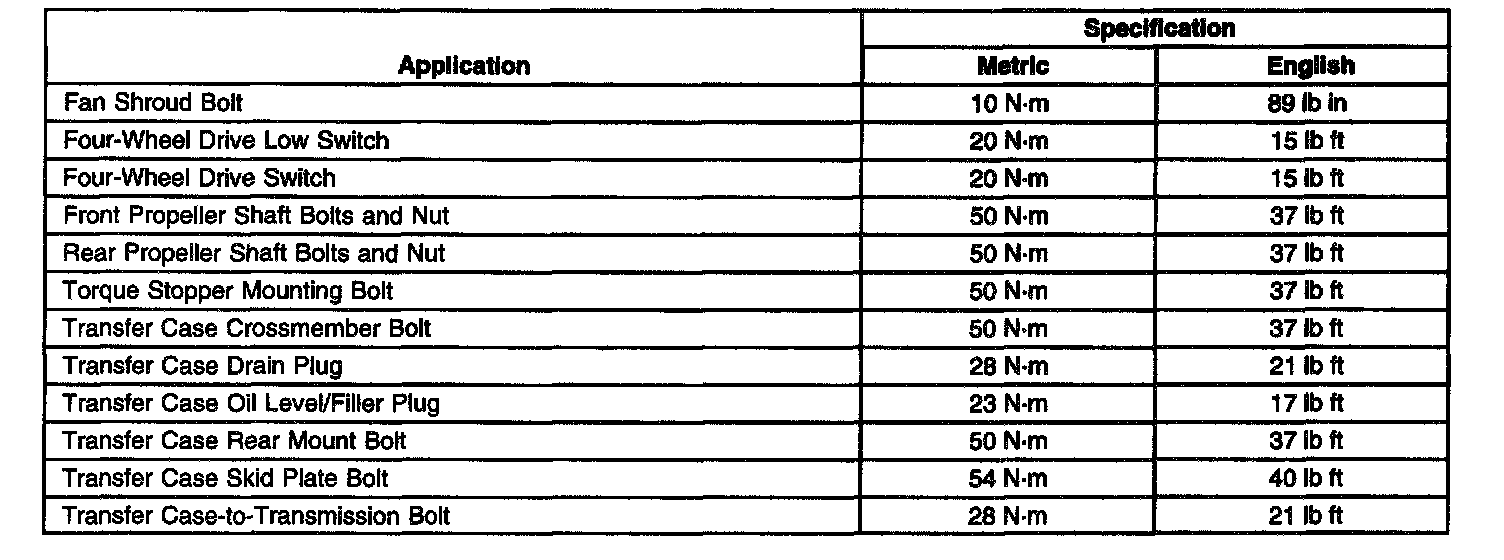

Transfer Case

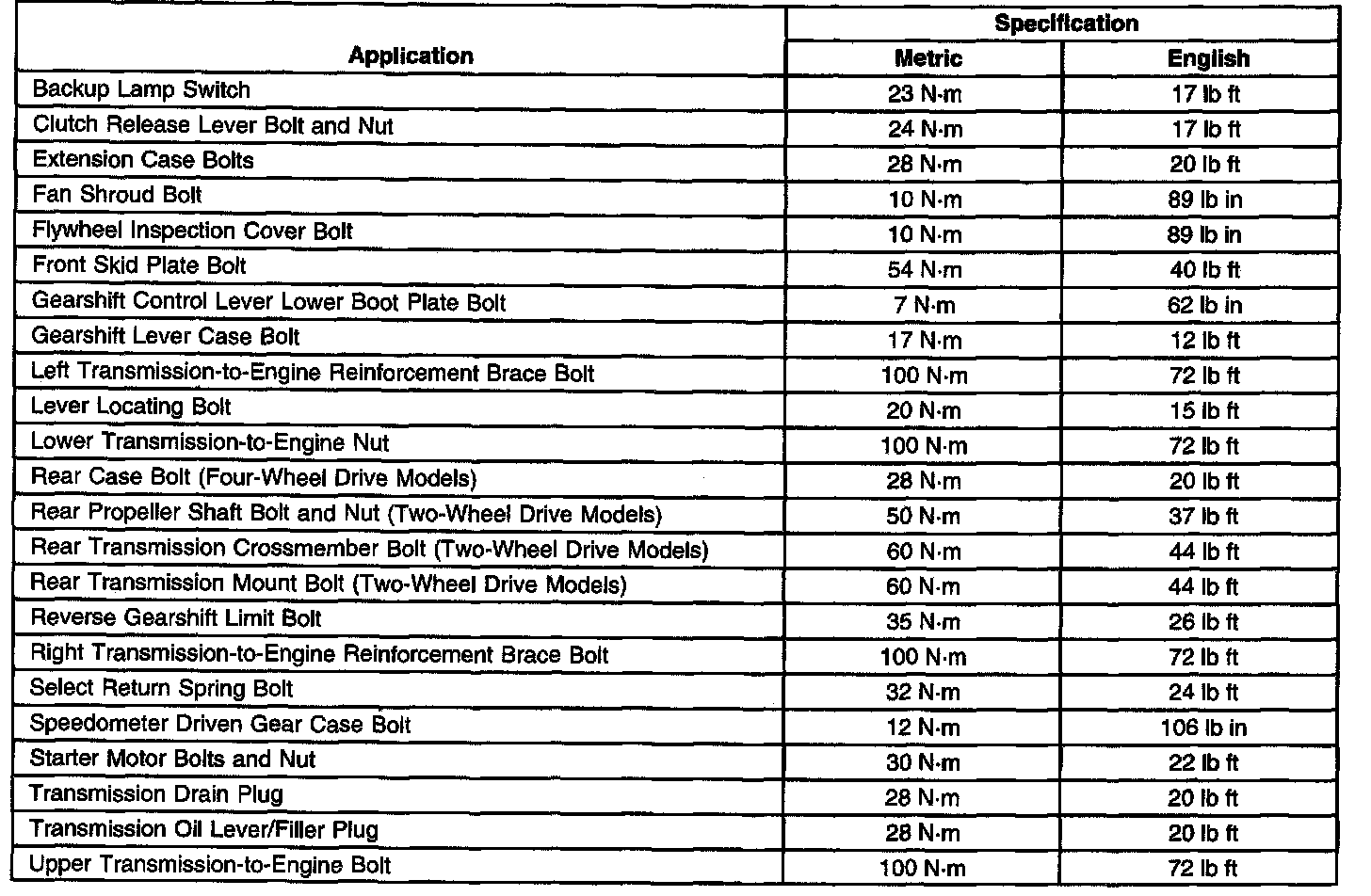

Manual Transmission - M59

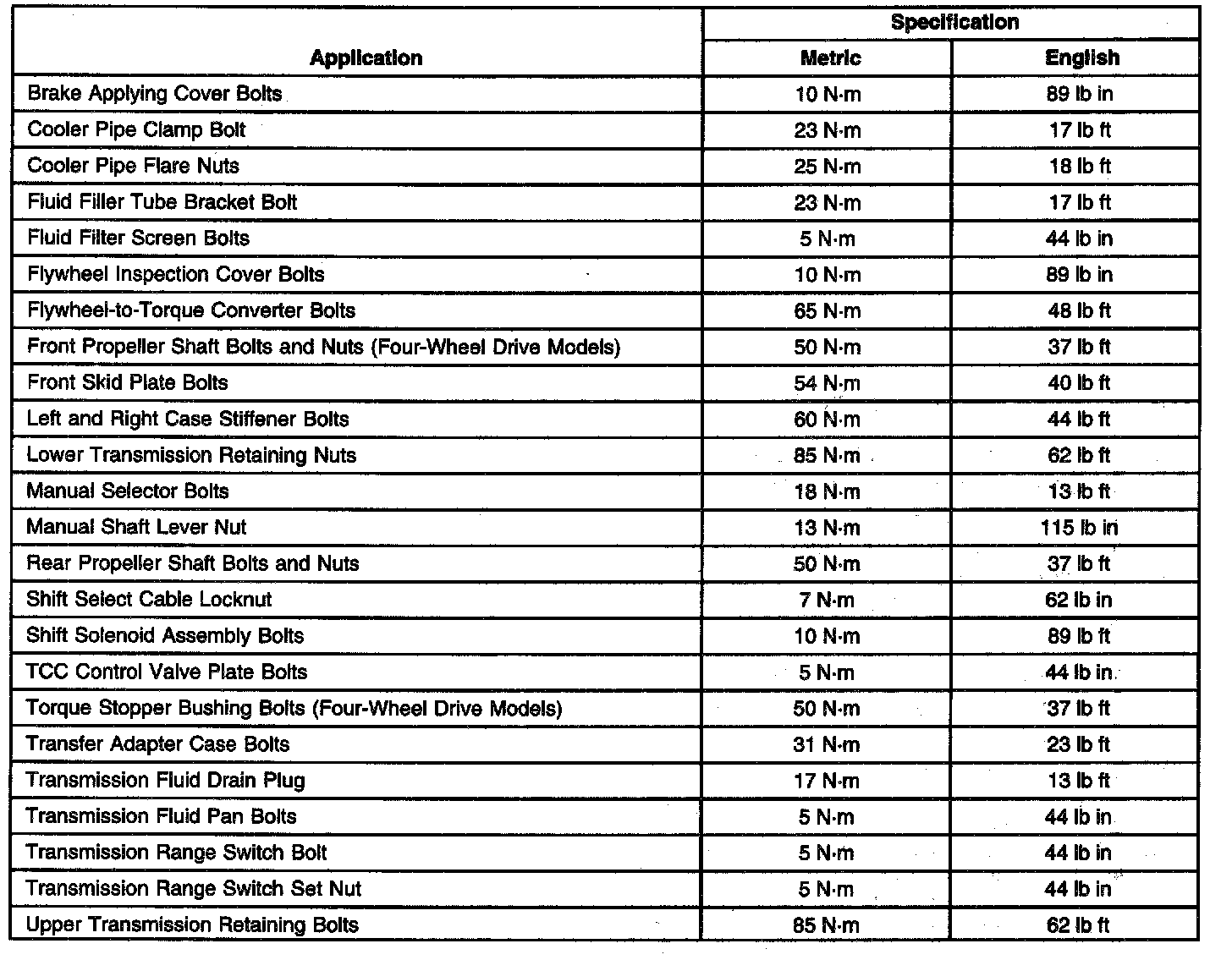

Automatic Transmission - 4 Speed-M41





Clutch
