Floor Shift Knob: Installation

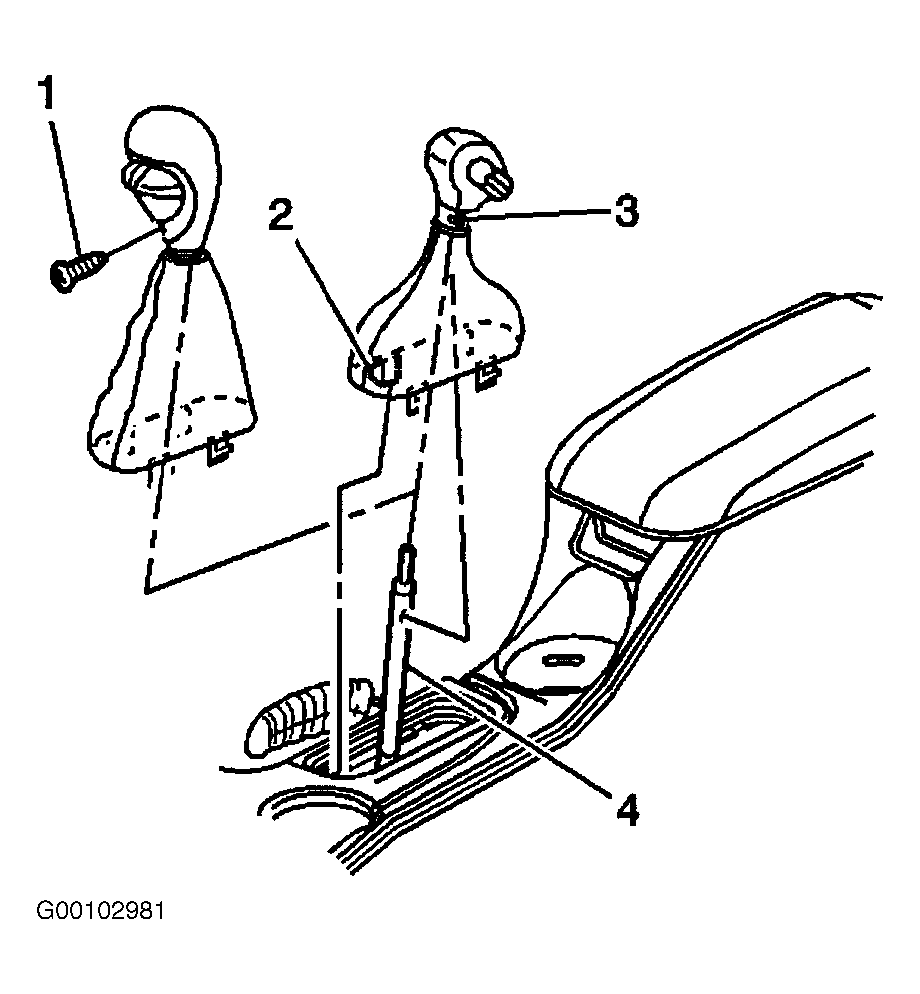

Install the knob and boot assembly onto the transmission control (4). Engage the locking tabs (2) with the console assembly. See Fig 1 . Tighten the control knob set screw (1 or 3) to 18 INCH lbs. (2 N.m).
Install the knob and boot assembly onto the transmission control (4). Engage the locking tabs (2) with the console assembly. See Fig 1 . Tighten the control knob set screw (1 or 3) to 18 INCH lbs. (2 N.m).
