Removal Procedure

  1. Open the sliding door half way.
  2. Remove the bolt for the sliding door catch with the reinforcement channel from the sliding door lower track.
  3. Remove the sliding door catch with the reinforcement channel from the sliding door lower track.

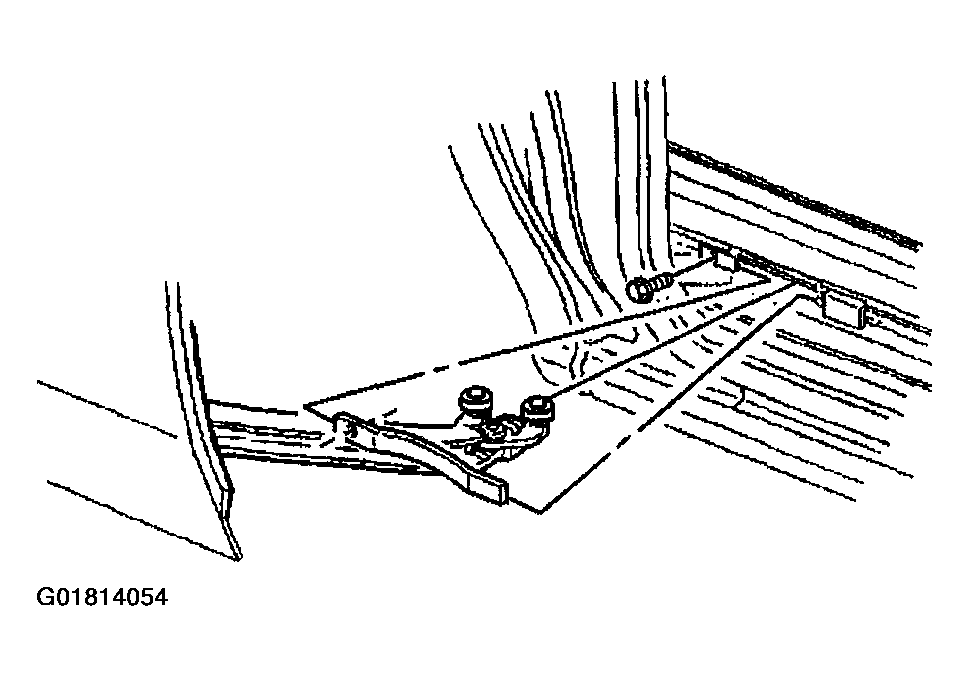

    Fig 1: Removing Bolt & Sliding Door Catch
    G01814054Courtesy of GENERAL MOTORS CORP.
