Removal Procedure

  1. Remove the outside rearview mirror face. Refer to Mirror Face Replacement .
  2. Remove the outside rearview mirror. Refer to Mirror Replacement - Power (With Turn Signal Indicator)  or Mirror Replacement - Power (Without Turn Signal Indicator) .
  3. Remove the outside rearview mirror motor screws.
  4. Remove the outside rearview mirror motor from the mirror housing.

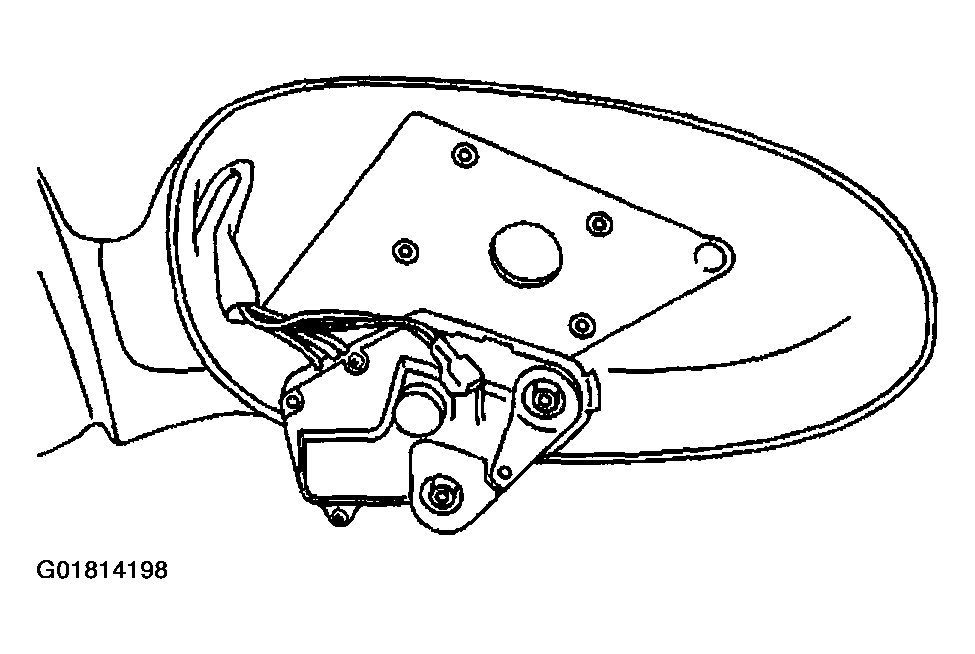

    Fig 1: Removing Outside Rearview Mirror Motor & Screws
    G01814198Courtesy of GENERAL MOTORS CORP.
