Removal Procedure

  1. Use the following procedure in order to remove the left power lock switch.
    1. 1.1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. 1.2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

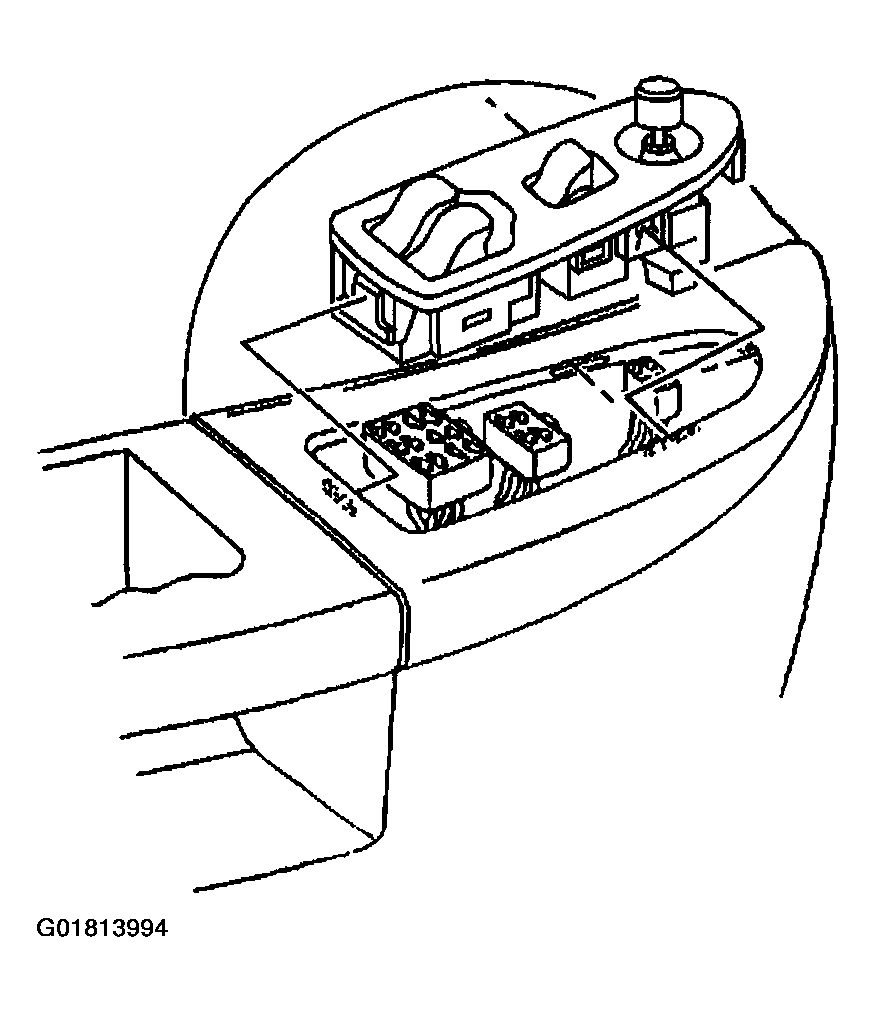

    Fig 1: Removing Switch Mounting Plate (Front Left)
    G01813994Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the power lock switch from the switch mounting plate.

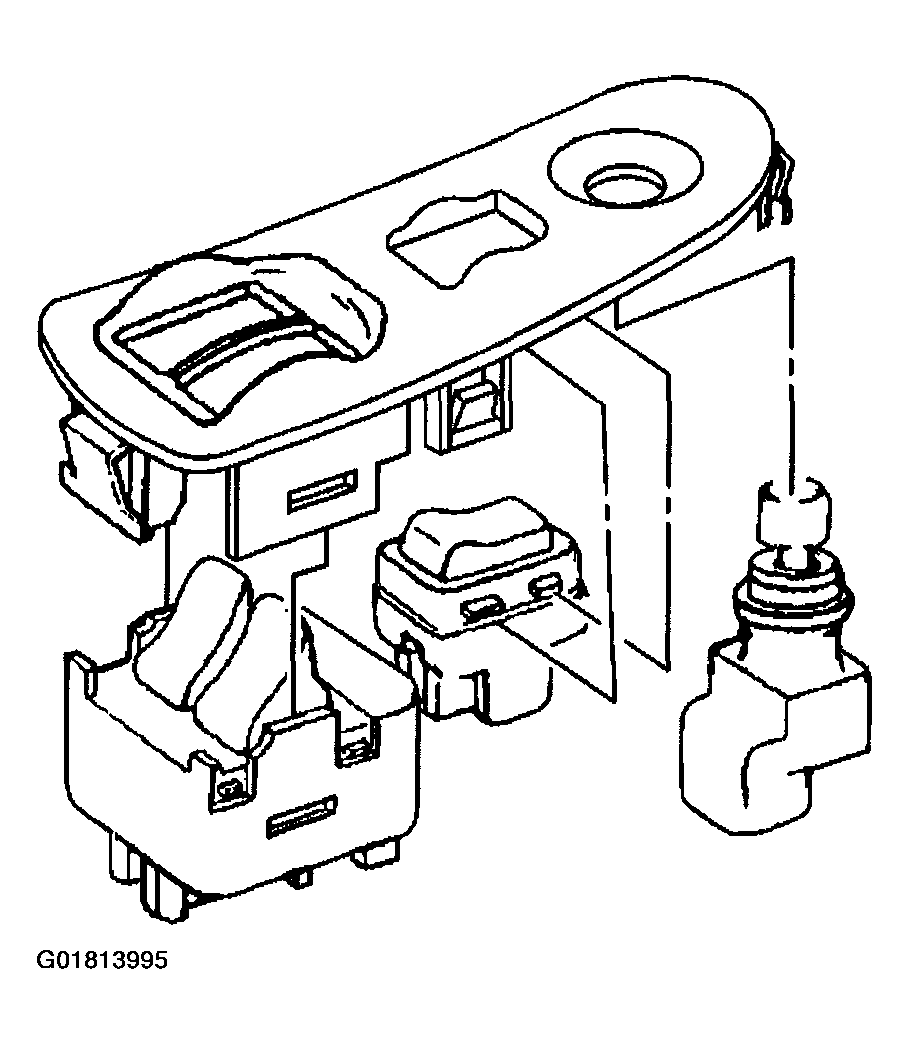

    Fig 2: Removing Power Window Switch (Front Left)
    G01813995Courtesy of GENERAL MOTORS CORP.
