Installation Procedure

  1. Install the hub and bearing assembly (1) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR FRONT W or WHEEL BEARING/HUB REPLACEMENT -- REAR DISC AN .

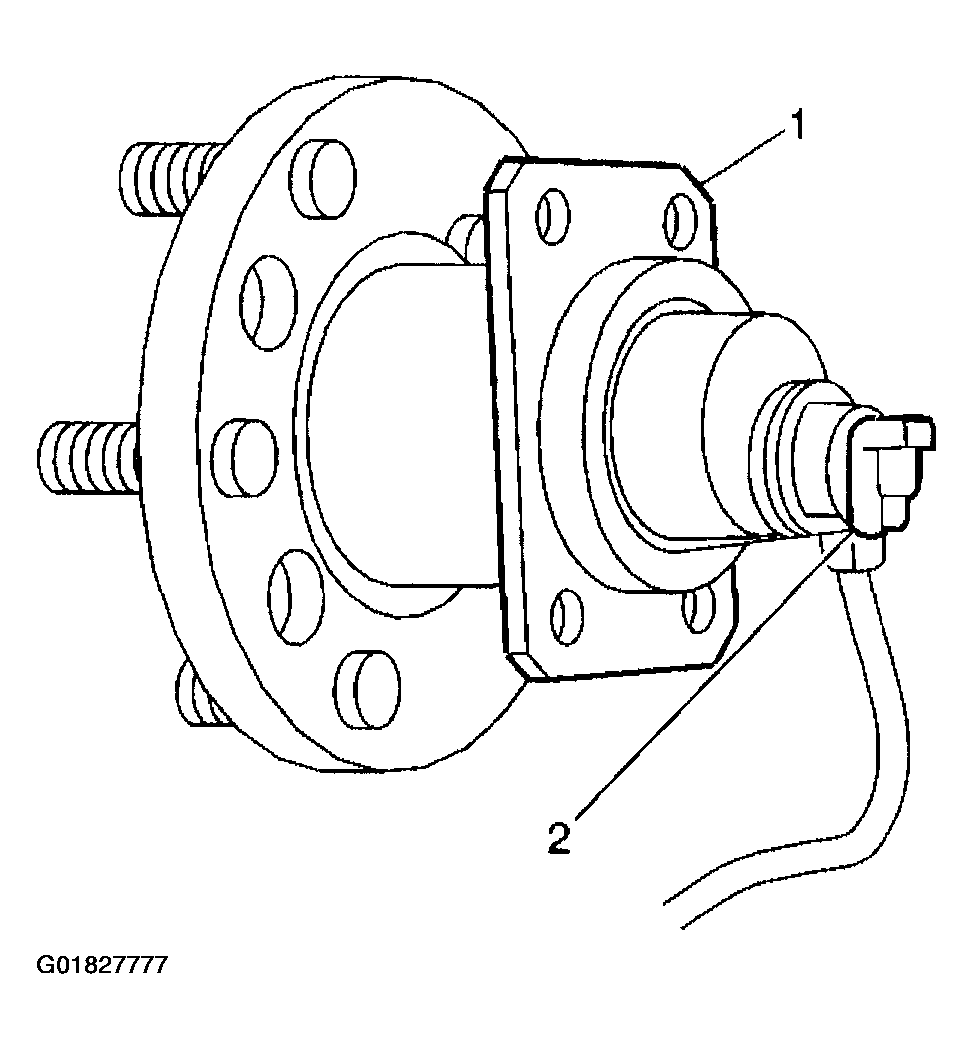

    Fig 1: Installing Hub & Bearing Assembly (Rear)
    G01827777Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel speed sensor electrical connector.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position with the engine off.
  6. Perform Diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

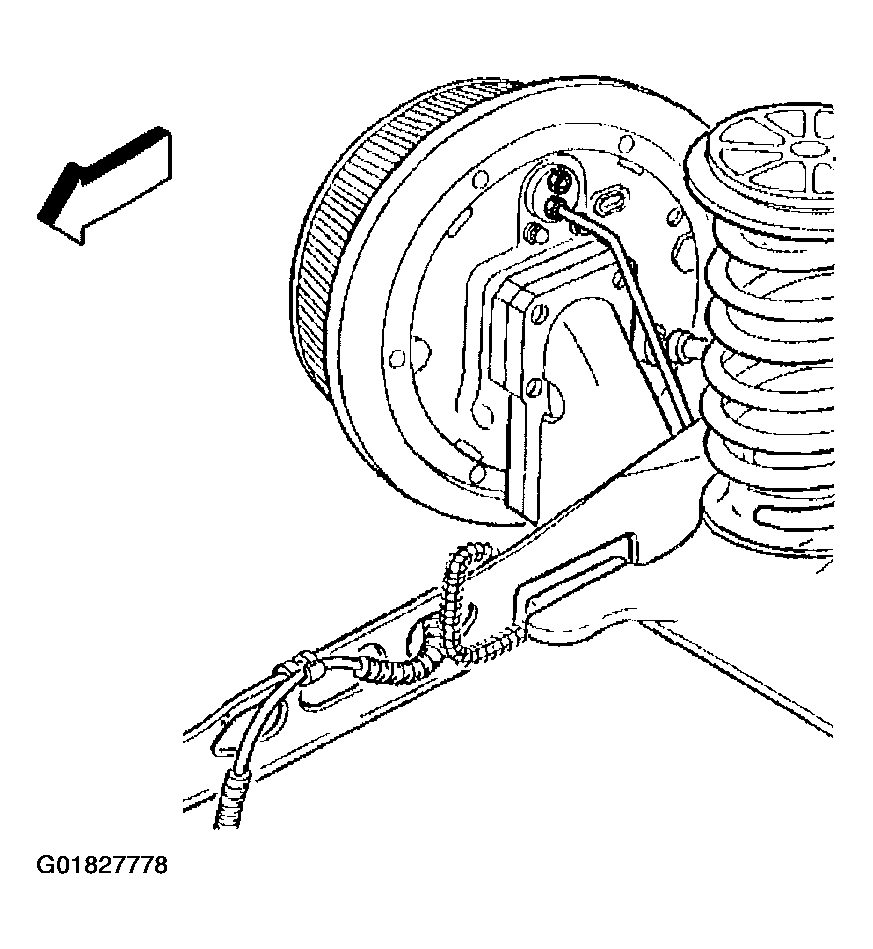

    Fig 2: Installing Rear Wheel Speed Sensor Electrical Connector
    G01827778Courtesy of GENERAL MOTORS CORP.
