Rear Video/Audio/HVAC Module Connector End View - C1

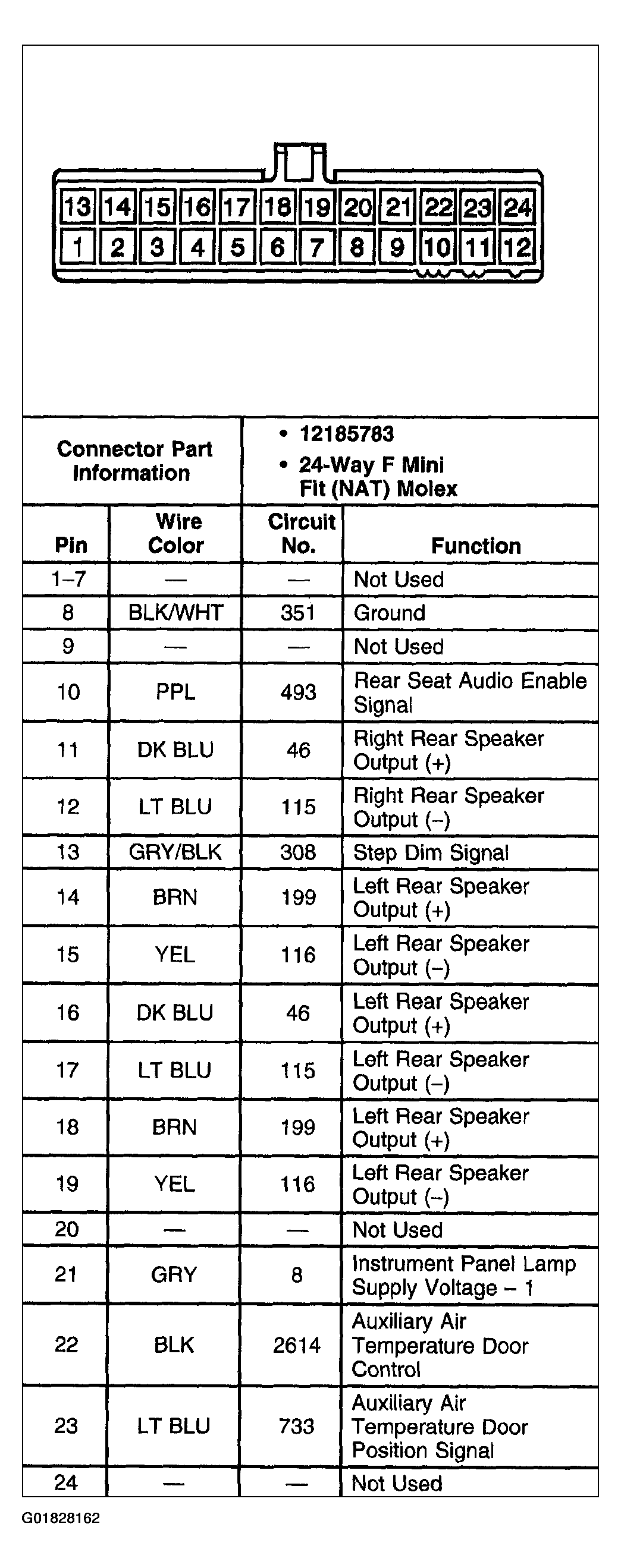

Fig 1: Rear Video/Audio/HVAC Module - C1
G01828162Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Video/Audio/HVAC Module - C1
G01813136Courtesy of GENERAL MOTORS CORP.
