Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

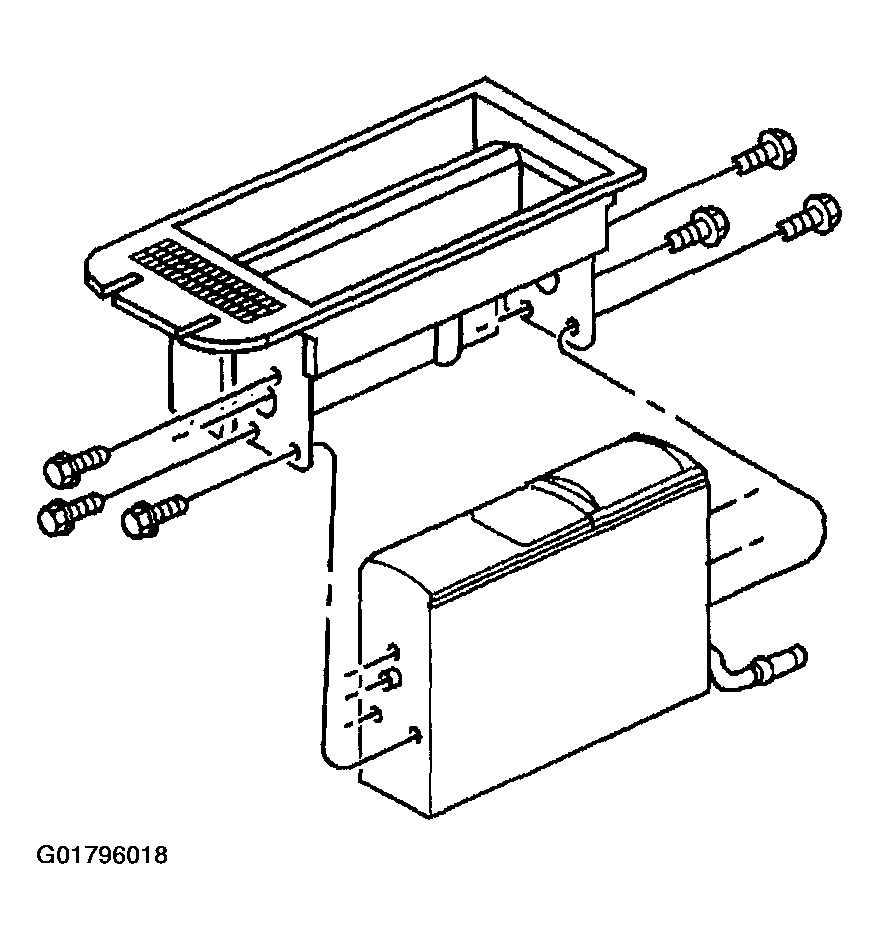

Fig 1: Installing CD Changer

Courtesy of GENERAL MOTORS CORP.

Install the CD changer bracket to the CD changer with the 6 fasteners.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).
Connect the electrical connections.

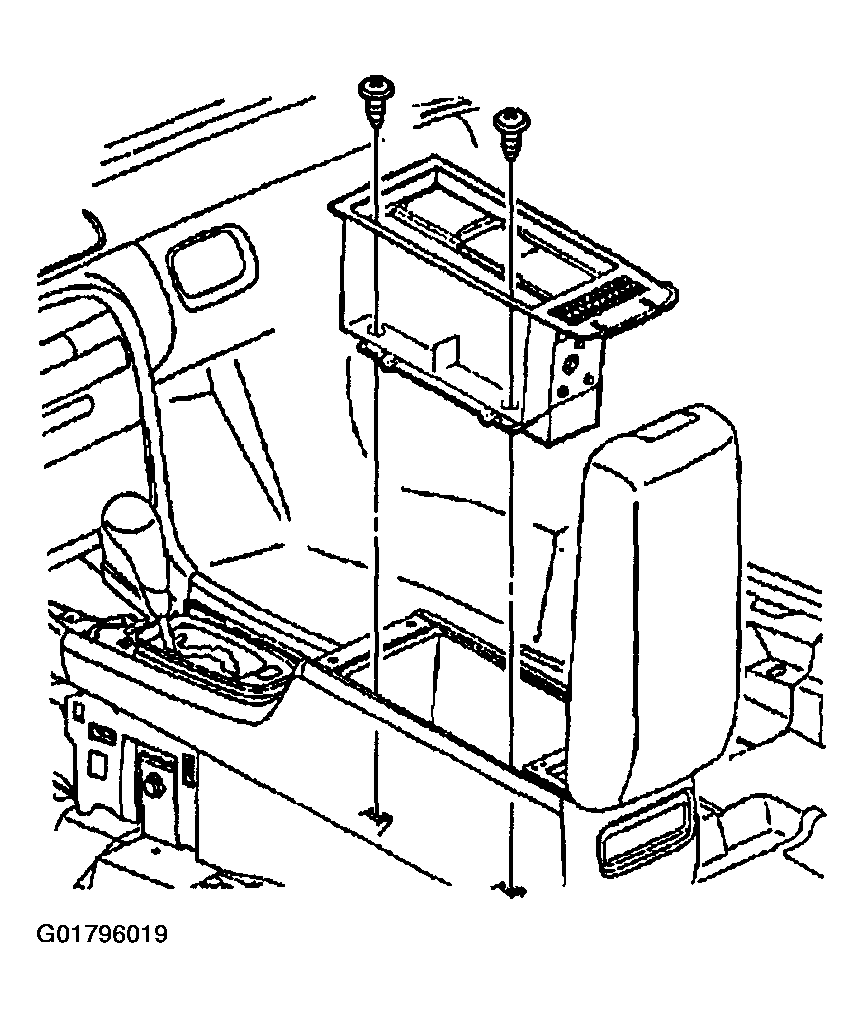

Fig 2: Installing Fasteners To CD Changer To Console

Courtesy of GENERAL MOTORS CORP.

Install the CD changer to the console bin.
Install the 2 fasteners that retain the CD changer to the console.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).
