Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Open the console bin door.

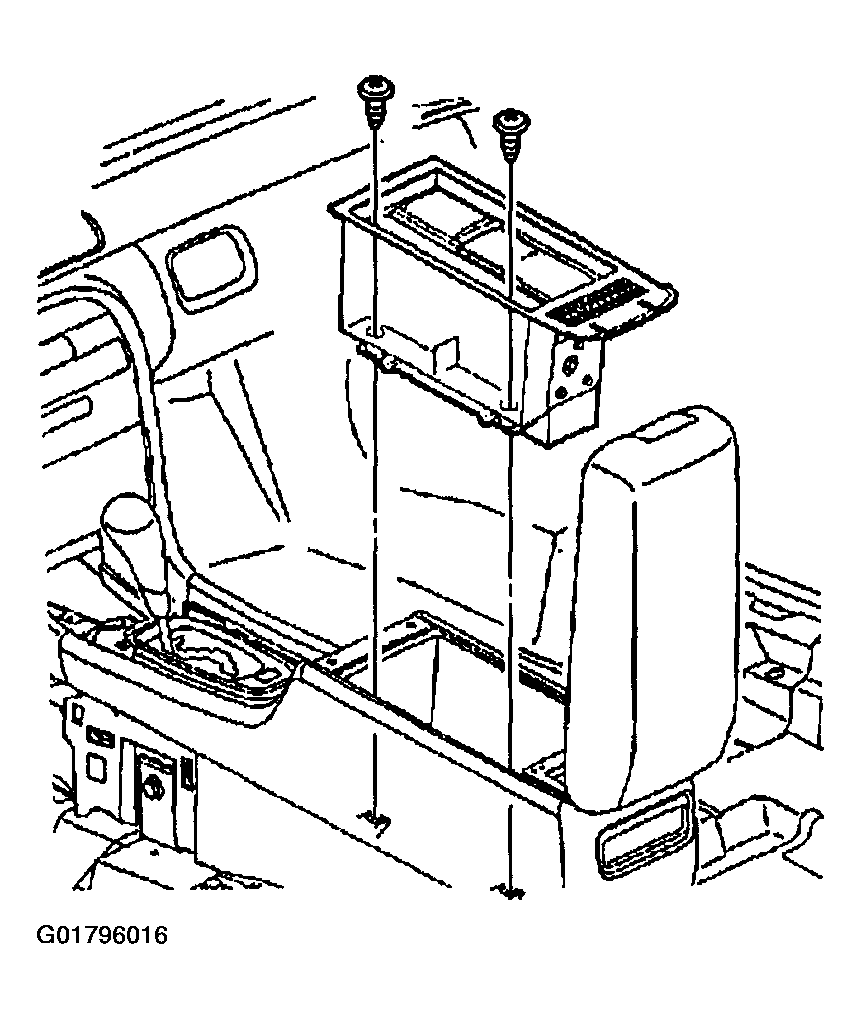

Fig 1: Removing Fasteners From CD Changer To Console

Courtesy of GENERAL MOTORS CORP.

Remove the 2 fasteners from the CD changer to the console.
Disconnect the electrical connection.

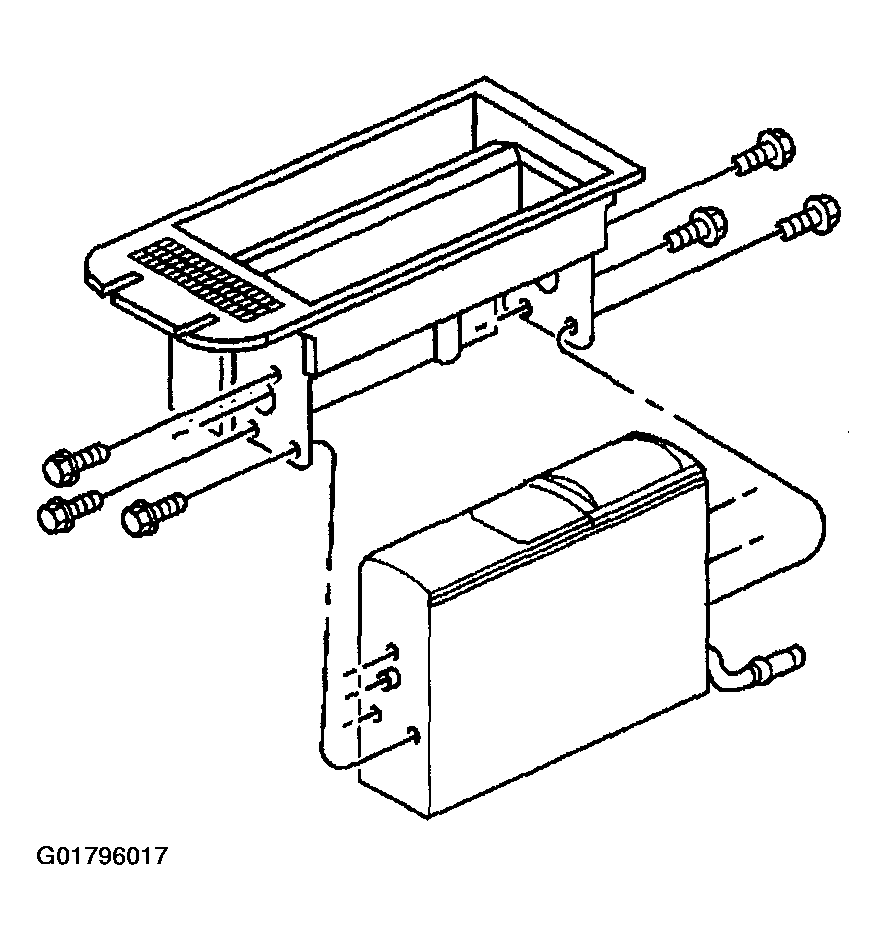

Fig 2: Removing CD Changer

Courtesy of GENERAL MOTORS CORP.

Remove the 6 fasteners from the CD changer bracket to the CD changer.
