Removal Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cooling fans. Refer to Cooling Fan Replacement - Electric .

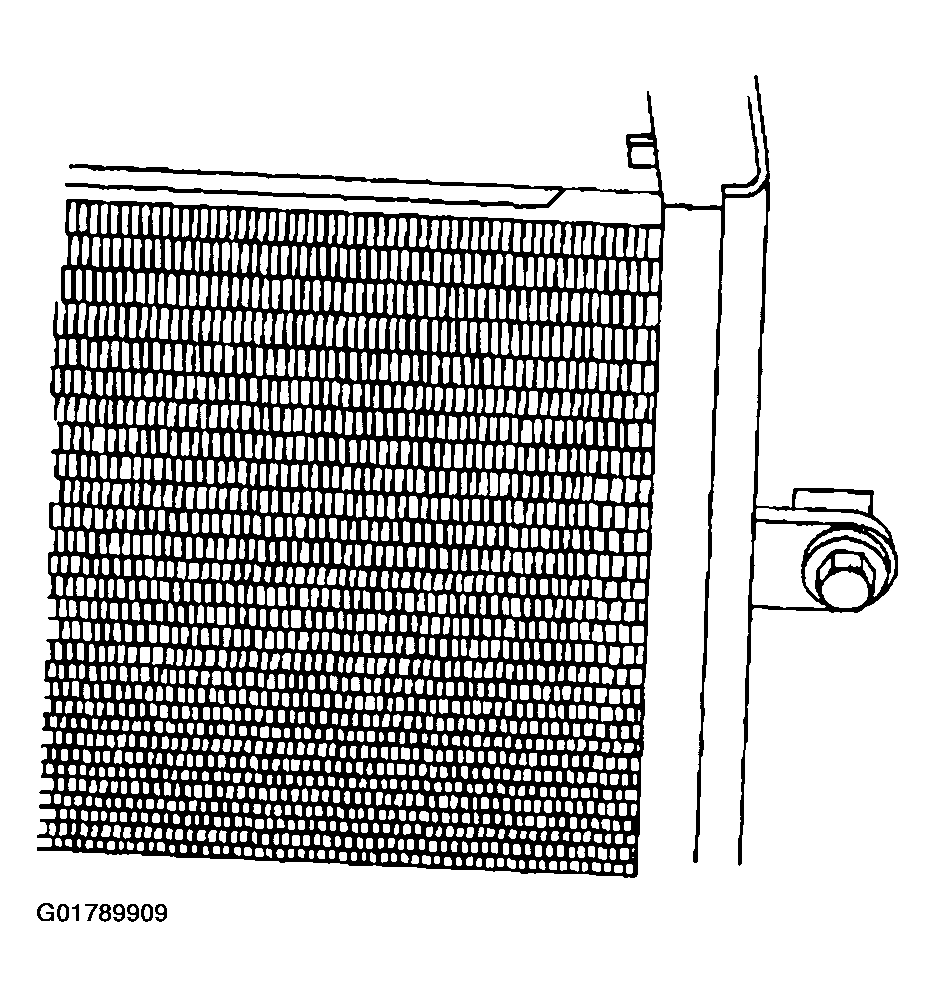

- Remove the two condenser mounting bolts.
Important: Care should be taken when removing the condenser not to damage the lower attachment points of both the radiator and condenser.

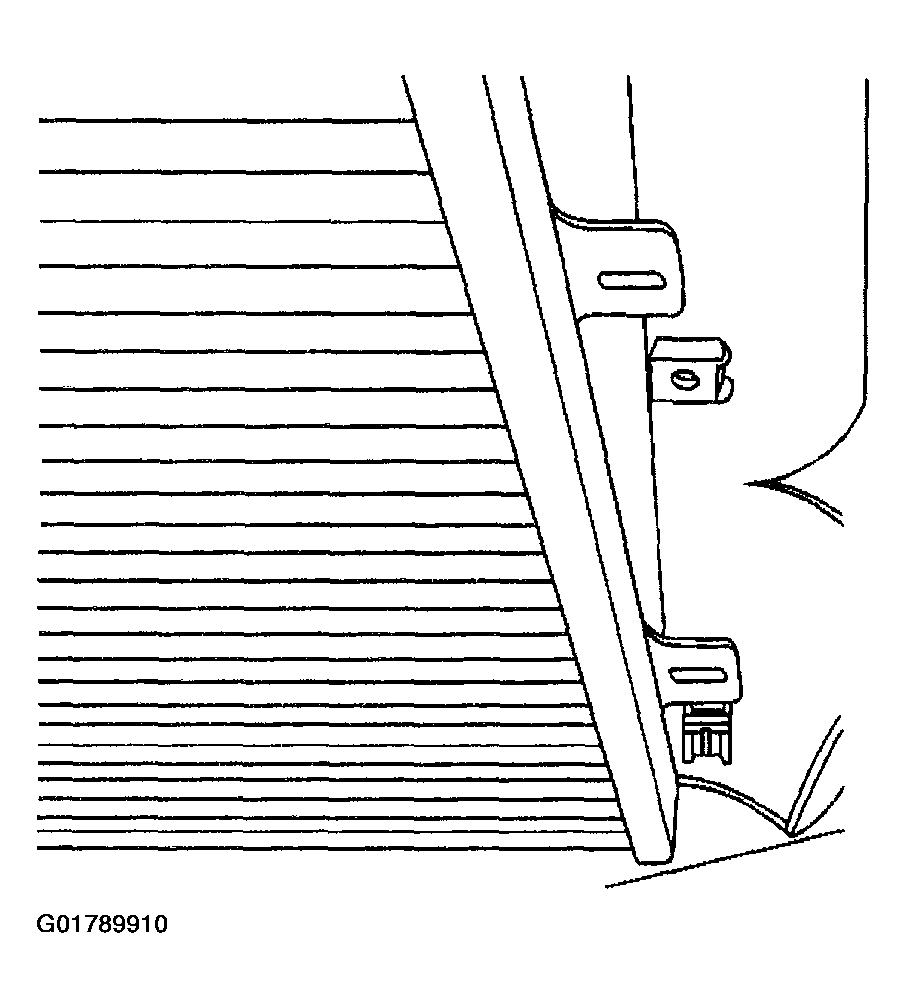

- Lift the condenser upward slightly in order to release the lower feet from the lower mounting features located at the front of the radiator.
- Lift the radiator up and out the vehicle.
