Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the docking station wires (1) through the opening in the tray insert.

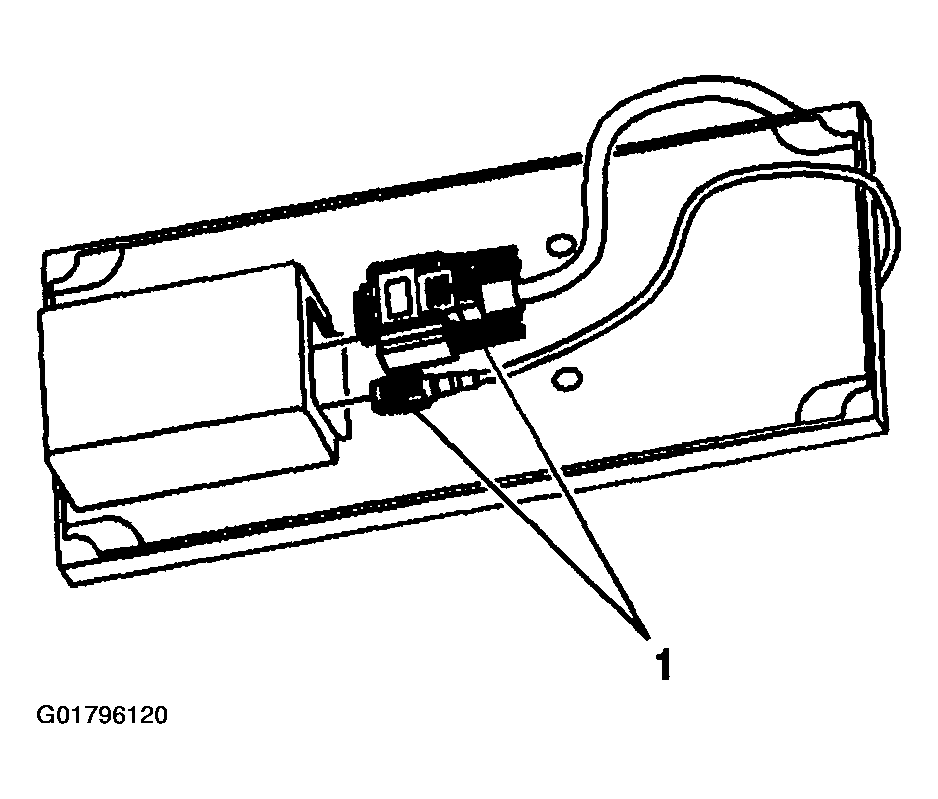

    Fig 1: Removing Docking Station & Wires
    G01796120Courtesy of GENERAL MOTORS CORP.
  2. Install the docking cup to the console tray insert.
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.
  3. Install the docking station screws (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

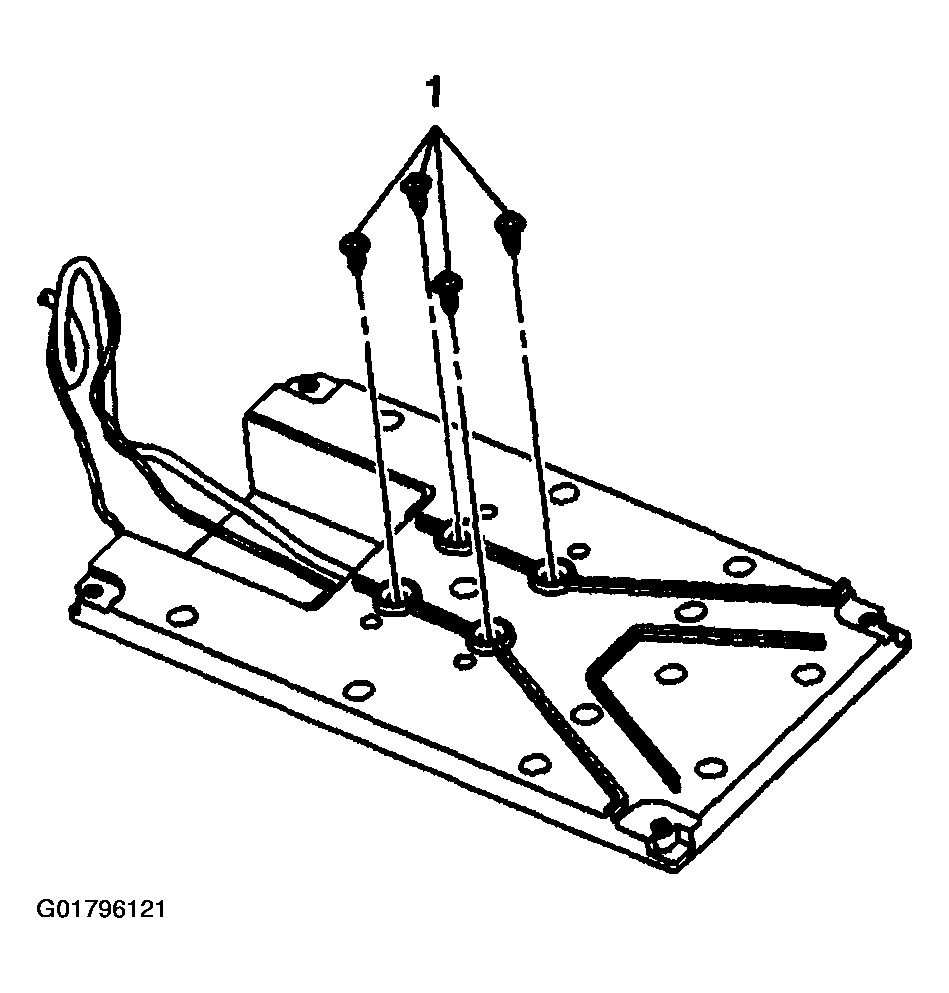

    Fig 2: Installing Docking Station & Screws
    G01796121Courtesy of GENERAL MOTORS CORP.
  4. Route the docking station wires (1) through the opening in the console tray.

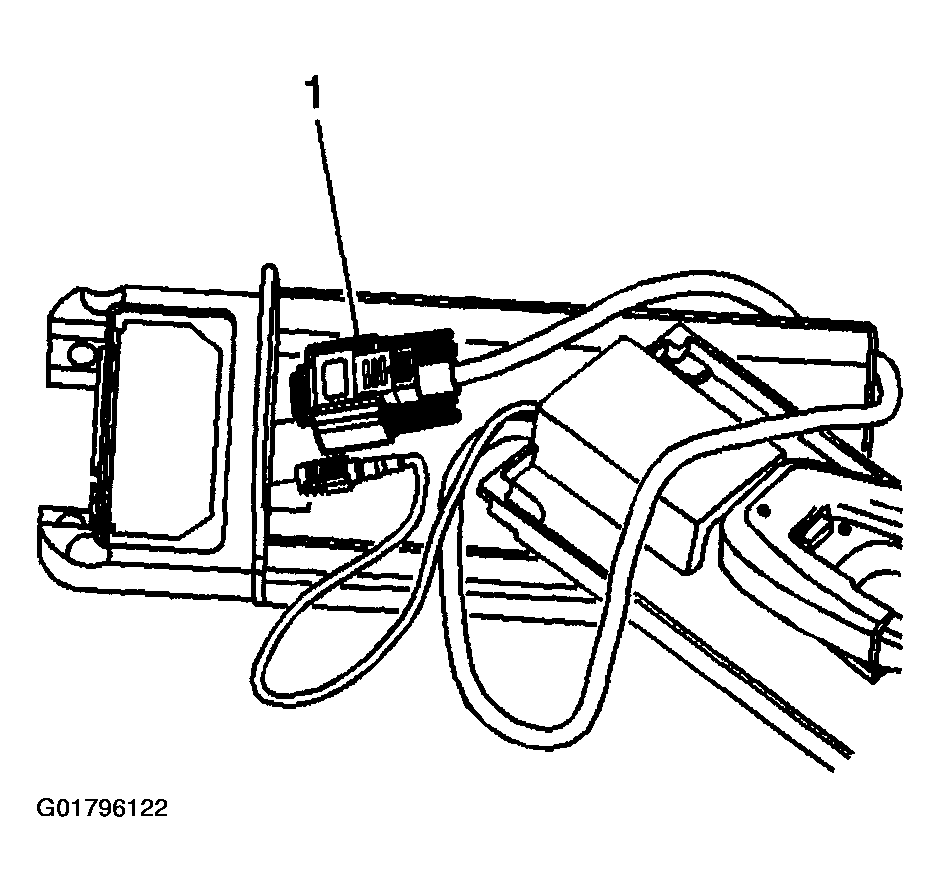

    Fig 3: Installing Docking Station & Wires
    G01796122Courtesy of GENERAL MOTORS CORP.
  5. Install the console tray insert to the console tray (2).
  6. Install the console tray insert screws (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

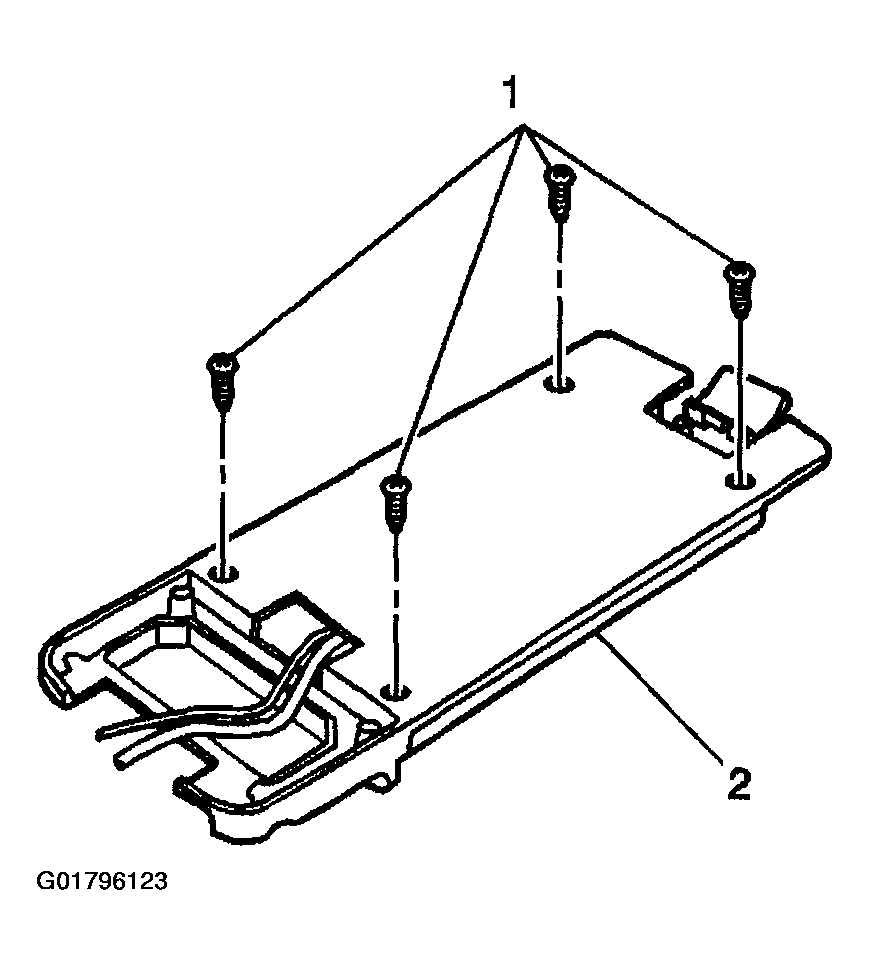

    Fig 4: Installing Console Tray & Insert Screws
    G01796123Courtesy of GENERAL MOTORS CORP.
  7. Route the cellular phone wiring (1) in the hinge area of the console tray.

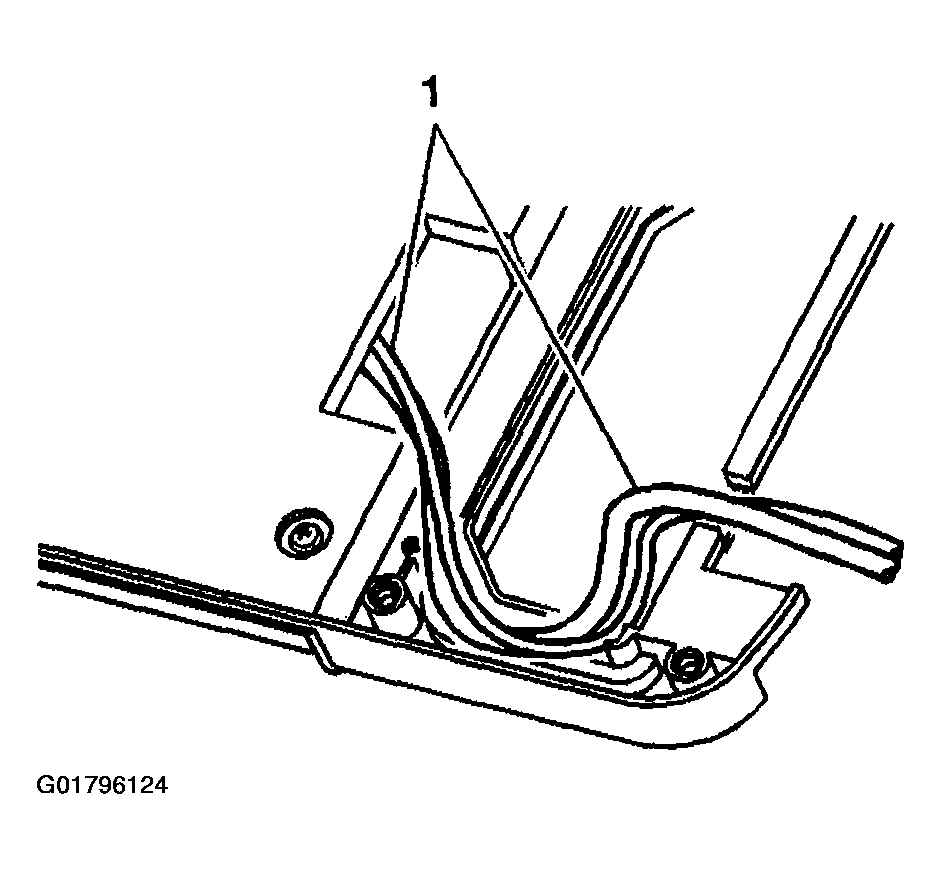

    Fig 5: Cellular Phone Wiring
    G01796124Courtesy of GENERAL MOTORS CORP.
  8. Install the console tray to the floor console.
  9. Install the console tray screws (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

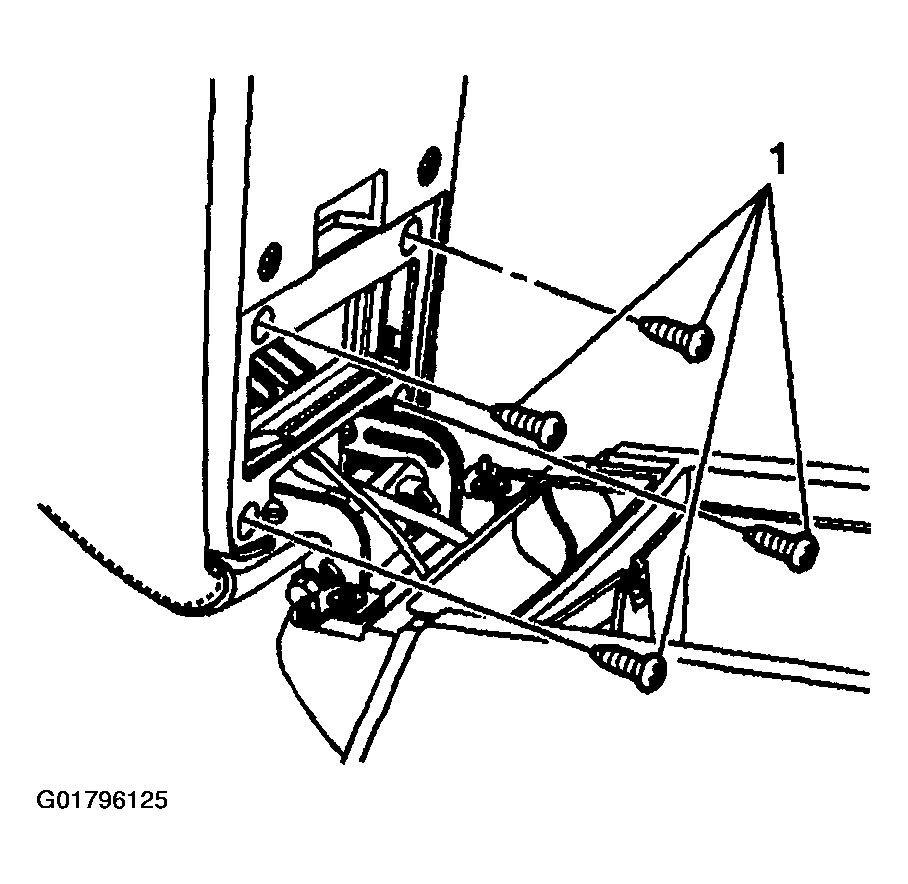

    Fig 6: Console Tray & Screws
    G01796125Courtesy of GENERAL MOTORS CORP.
  10. Route the cellular phone wiring (1) behind the console hinge cross brace (2).

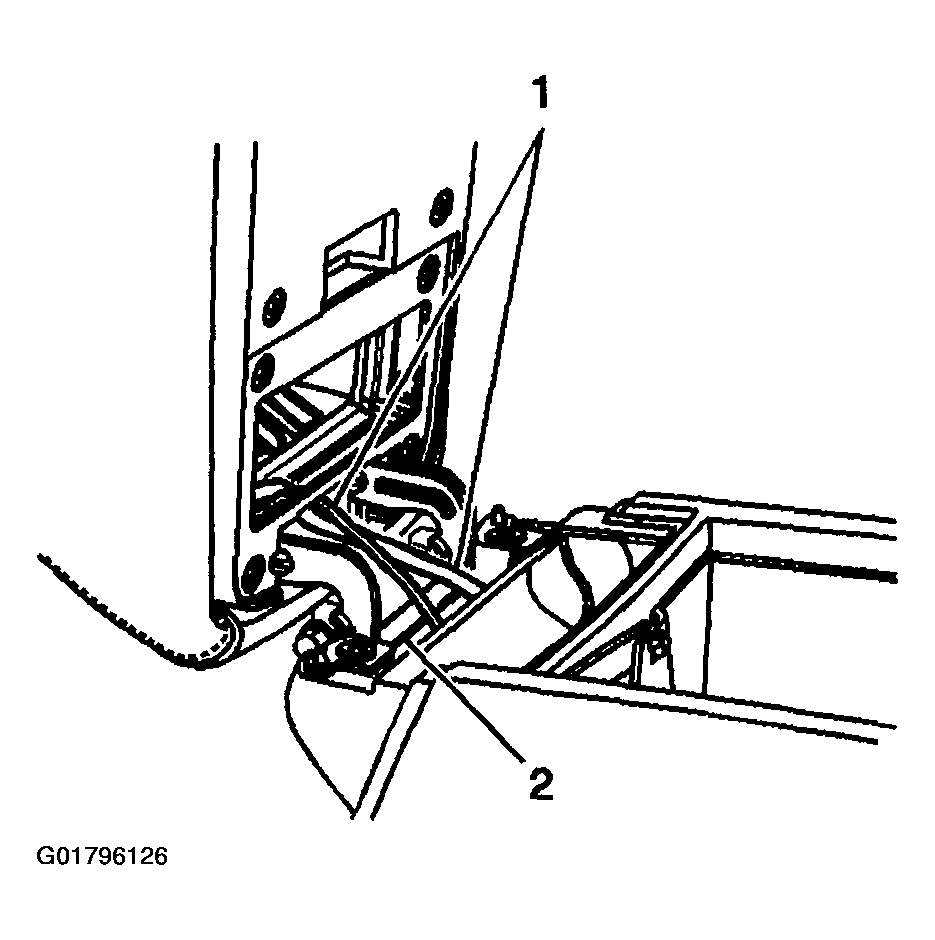

    Fig 7: Cellular Phone Wiring & Console Hinge Cross Brace
    G01796126Courtesy of GENERAL MOTORS CORP.
  11. Connect the docking station electrical connector (1).
  12. Connect the coaxial cable (2).
  13. Route the cellular phone wiring under the floor console.

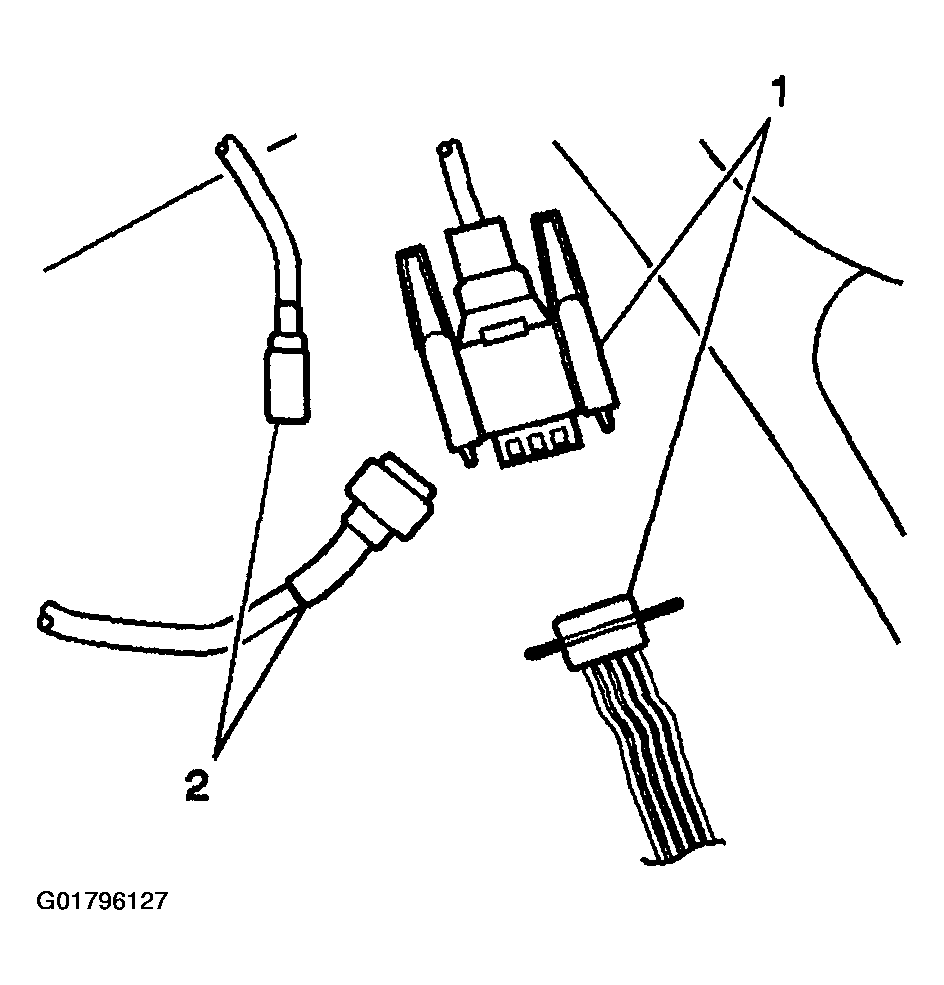

    Fig 8: Docking Station Electrical Connector & Coaxial Cable
    G01796127Courtesy of GENERAL MOTORS CORP.
  14. Install the floor console rear cover (1).
  15. Install the floor console rear cover screws (2).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  16. Install the floor console ashtray.
  17. Install the auxiliary HVAC control module. Refer to AUXILIARY HVAC CONTROL ASSEMBLY .

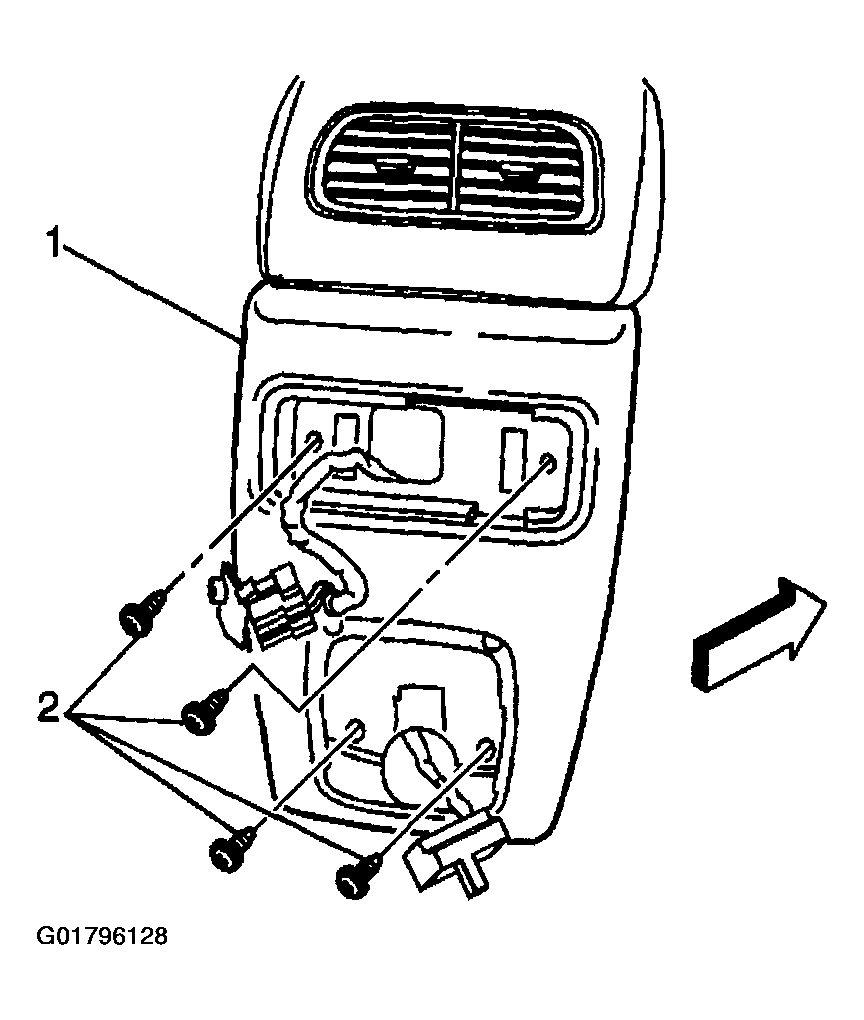

    Fig 9: Installing Floor Console Rear Cover & Screws
    G01796128Courtesy of GENERAL MOTORS CORP.
  18. Install the inner auxiliary HVAC outlet (1).
  19. Ensure the phone wiring (2) is captured in the cutout on the inner auxiliary HVAC outlet (1).

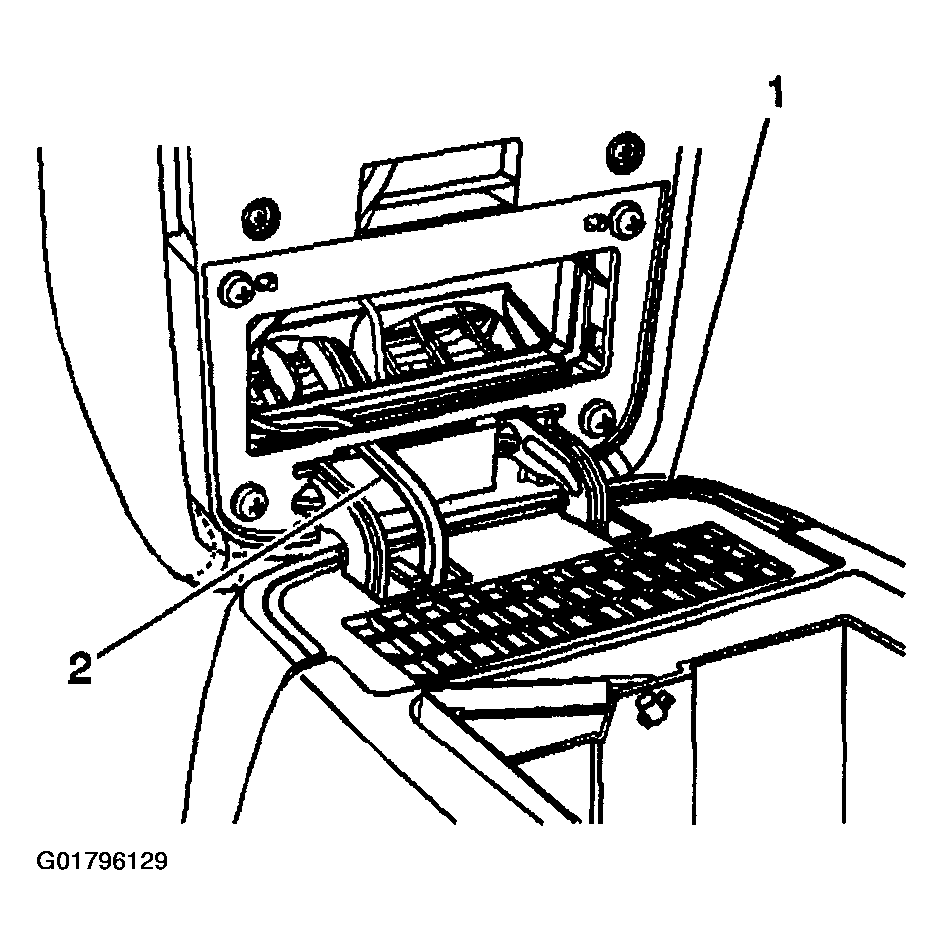

    Fig 10: Installing Inner Auxiliary HVAC Outlet & Phone Wiring
    G01796129Courtesy of GENERAL MOTORS CORP.
