Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the tabs on the shield into the engine compartment panel.
  2. Align the tabs on the splash shield with the slots in the engine compartment panel.
  3. Install the bolts (2).

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  4. Lower the vehicle.

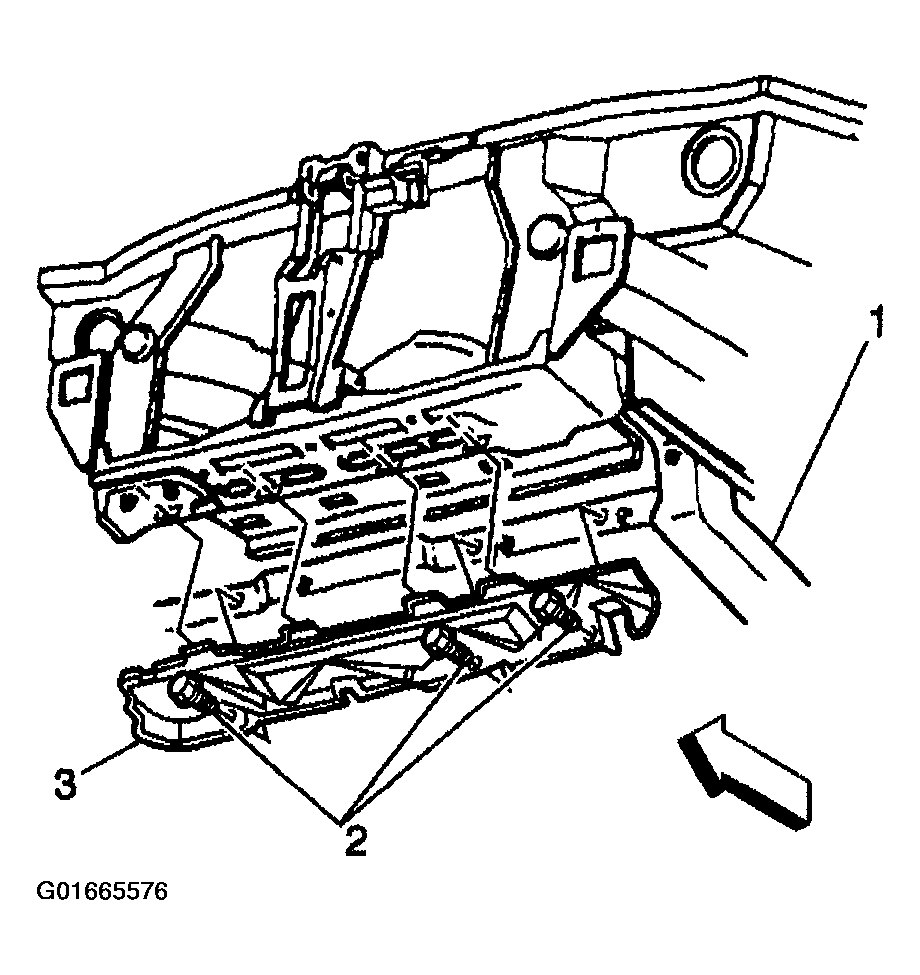

    Fig 1: Splash Shield & Components
    G01665576Courtesy of GENERAL MOTORS CORP.
