Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control cable (2) at the throttle body lever (1) and at the throttle body bracket.

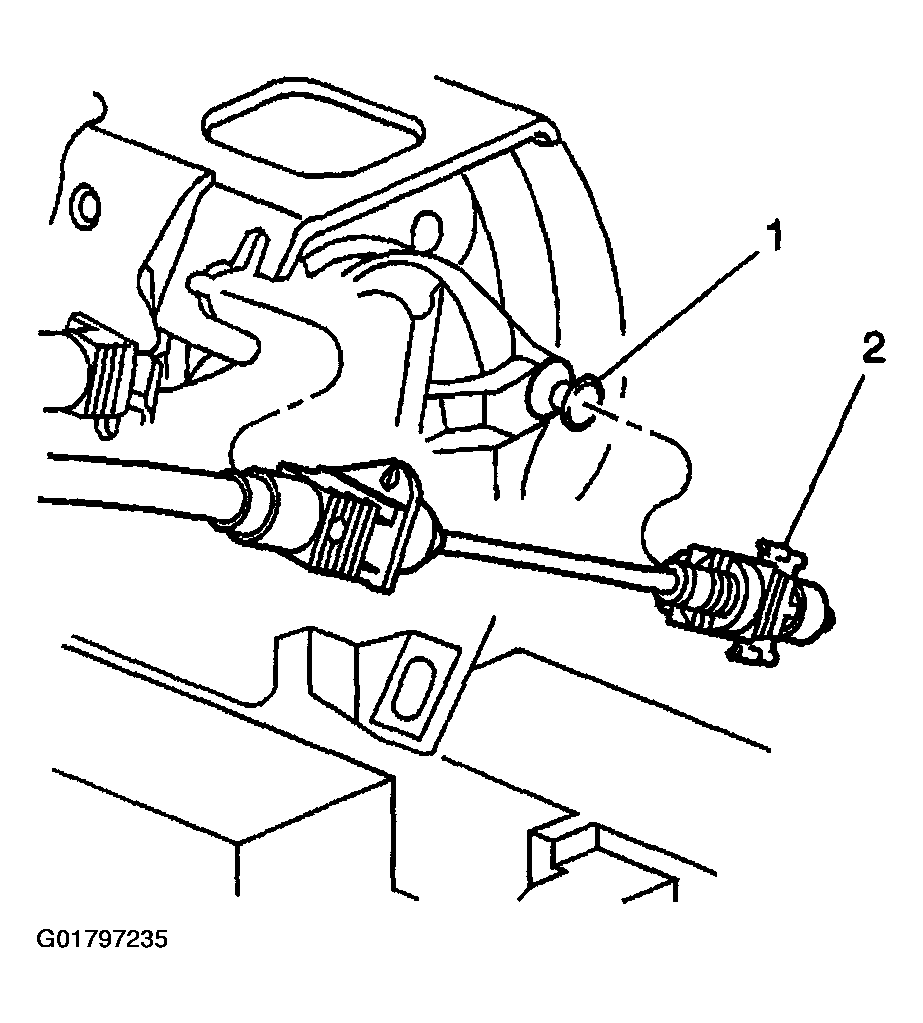

Fig 1: Removing Cruise Control Cable & Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.

Important: Note the cable routing and the retainer position for reference during installation.
Remove the cruise control cable (1) from the cruise control module connector (3).

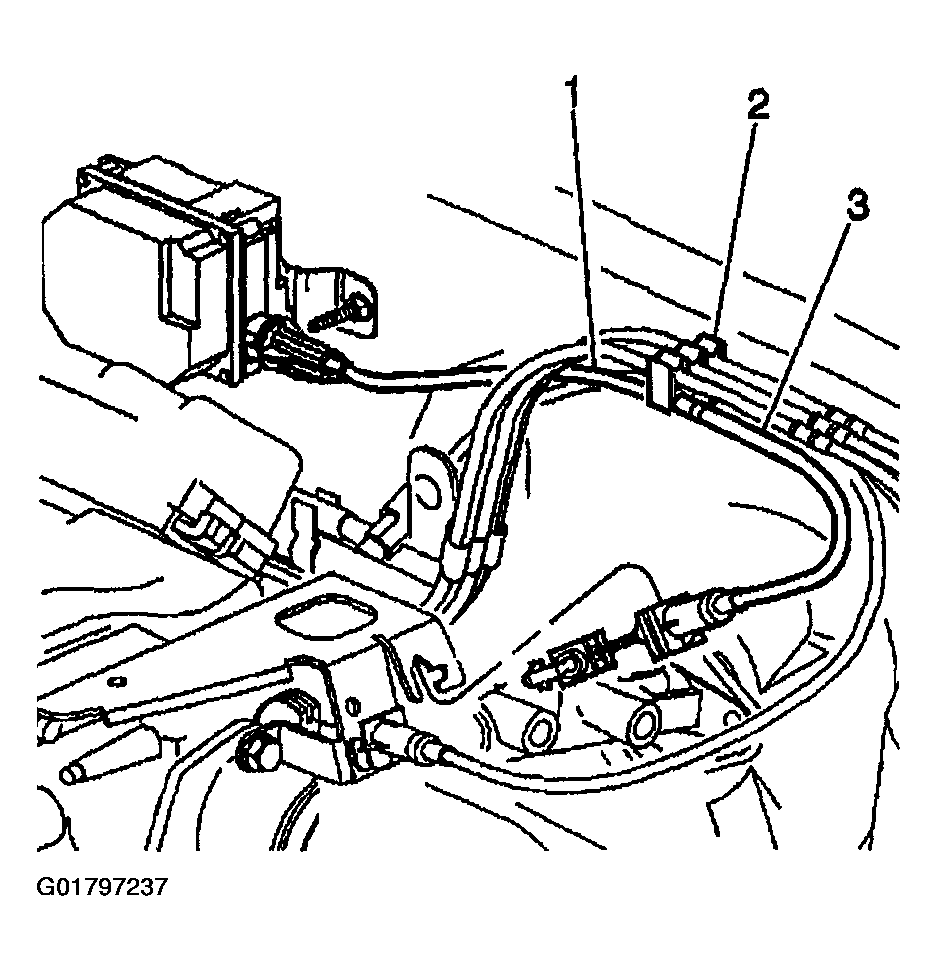

Fig 2: Removing Cruise Control Cable & Module Connector
Courtesy of GENERAL MOTORS CORP.
Remove the cable (1) from the retainers (2).

Fig 3: Removing Cable & Retainers
Courtesy of GENERAL MOTORS CORP.
