Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Lubricate the seal with silicone lubricant.
Spring clip must not be in slots of the air compressor.

Install a new seal onto the air dryer.
Install the air dryer with the seal in the air compressor.
Rotate the spring clip 90 degrees to lock the air dryer in place.

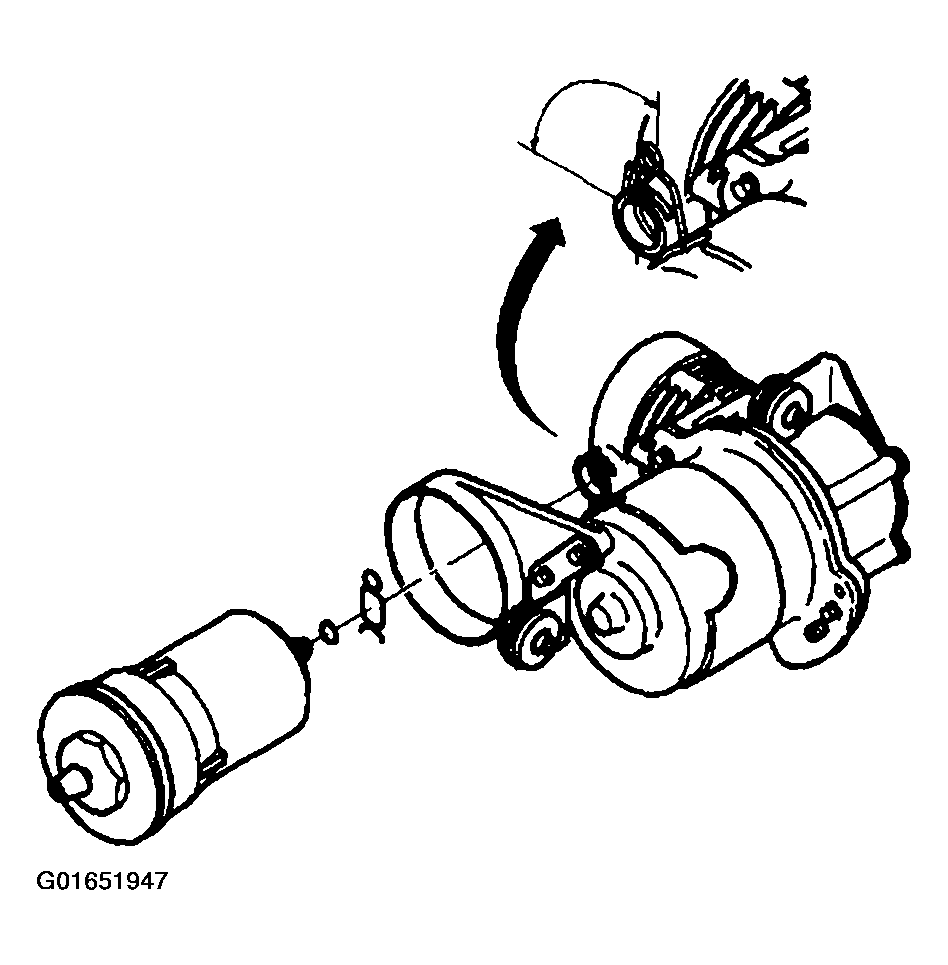

Fig 1: Rotating Spring Clip 90 Degrees To Lock Air Dryer In Place
Courtesy of GENERAL MOTORS CORP.

Important: Before driving the vehicle, turn the ignition on and wait approximately 45 seconds. This will permit the ELC system to execute the ARC, ensuring that the air adjustable shock absorbers are filled with residual pressure.
Install the air compressor assembly with the bracket onto the vehicle. Refer to Air Compressor Replacement .
