Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the headlamp switch.
    Fig 1: Identifying Electrical Connectors For Headlamp Switch Assembly
    G01664720Courtesy of GENERAL MOTORS CORP.
  2. Install headlamp switch assembly (2) into the opening of the instrument panel.
  3. Apply even pressure on the 4 corners of the headlamp switch assembly in order to secure the headlamp switch to the instrument panel.
  4. Ensure the skin locks are engaged to the Instrument panel (3).

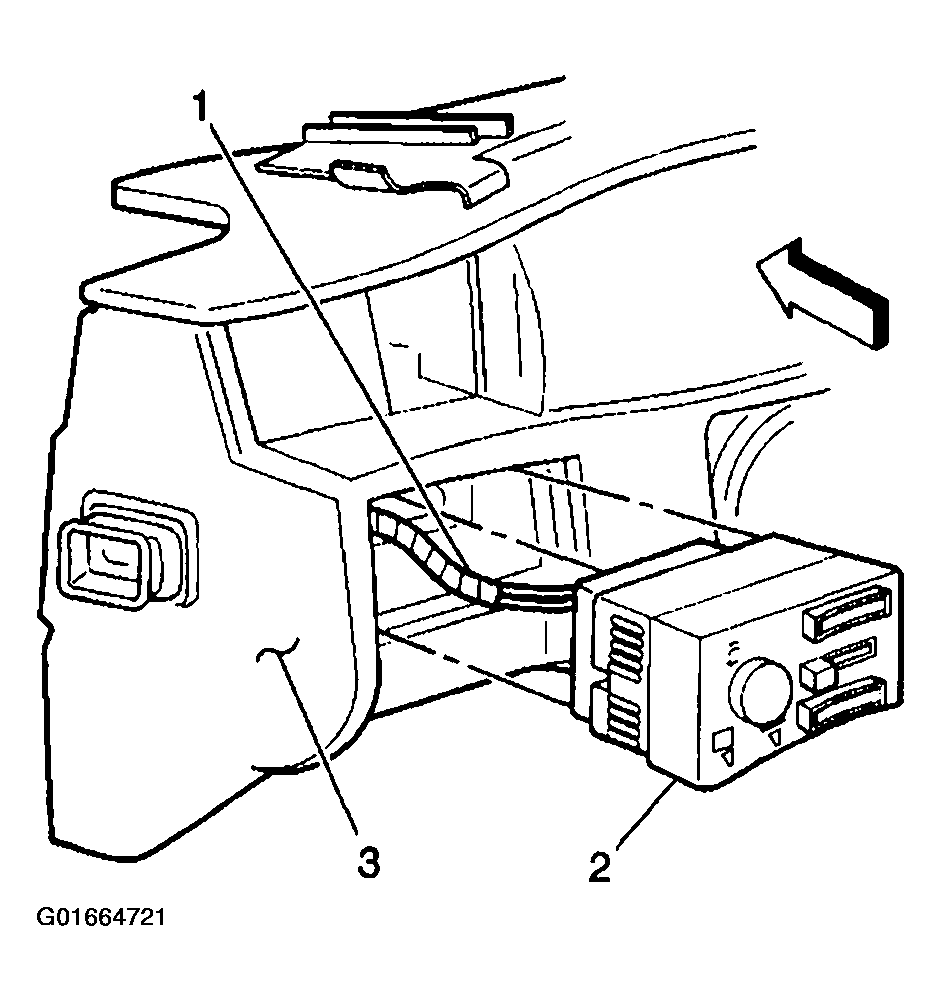

    Fig 2: Headlamp Switch Assembly & Components
    G01664721Courtesy of GENERAL MOTORS CORP.
