Disassemble Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut from the vehicle. Refer to STRUT ASSEMBLY REPLACEMENT   .
  2. Install the strut to the following components:
    • J 34013-B
    • J 34013-971
    • J 34013-972
  3. Rotate the J 34013-B  forcing screw (3) until the spring compressor slightly.

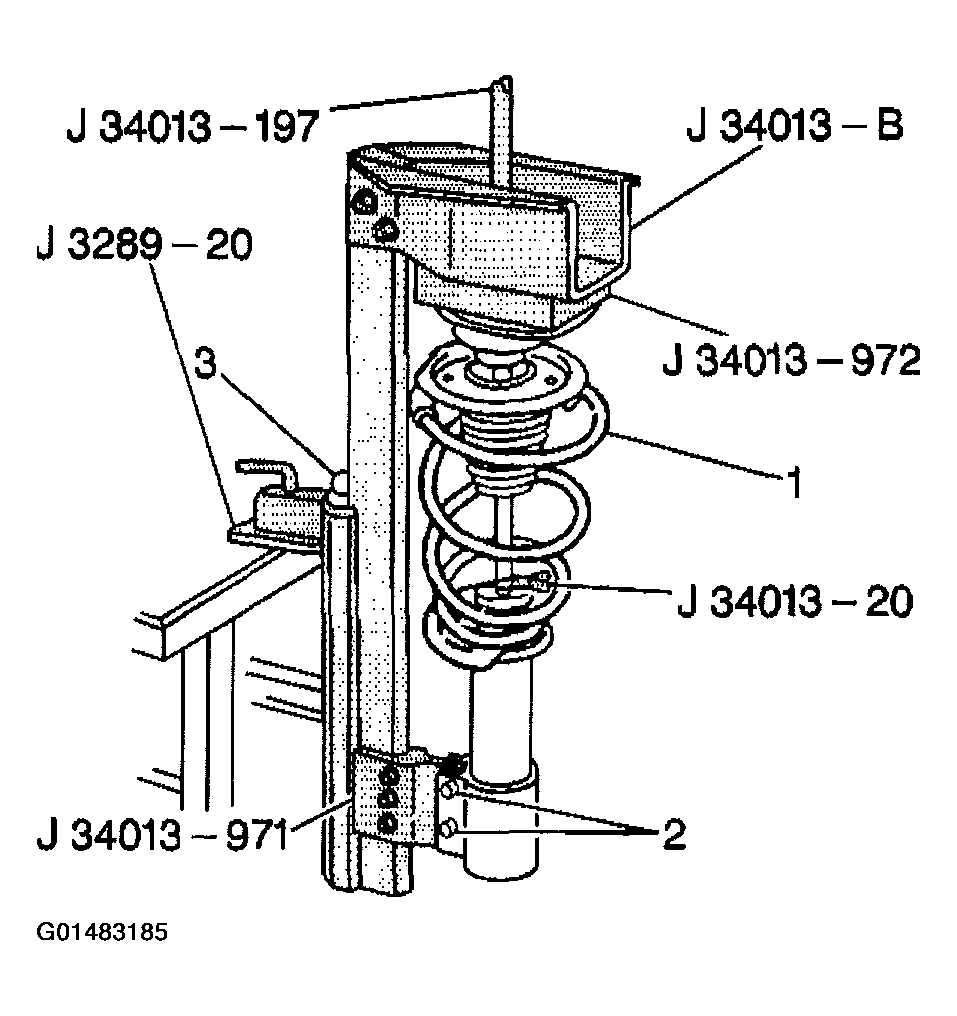

    Fig 1: Removing Strut Components With Tool
    G01483185Courtesy of GENERAL MOTORS CORP.
  4. Use the T 45 TORX® and the J 42991  in order to remove the strut shaft nut.
  5. Install the J 34013-197  to help guide the strut shaft out of the strut upper mount.
    NOTE: Care should be taken to avoid chipping or scratching the coating when handling the suspension coil spring. Damage to the coating can cause premature failure.
  6. Loosen the compressor forcing screw while guiding the strut shaft out of the strut upper mount. Continue loosening the compressor forcing screw until you can remove the strut and the spring.

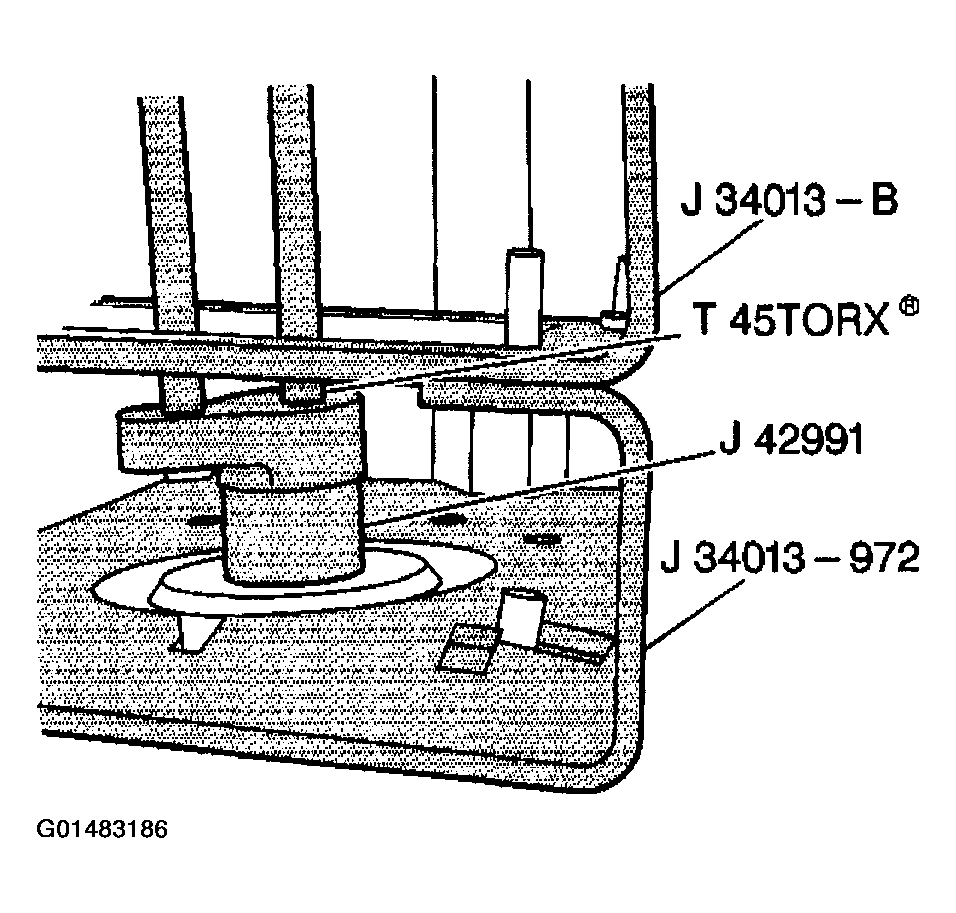

    Fig 2: Installing Tool To Remove Strut Components
    G01483186Courtesy of GENERAL MOTORS CORP.
