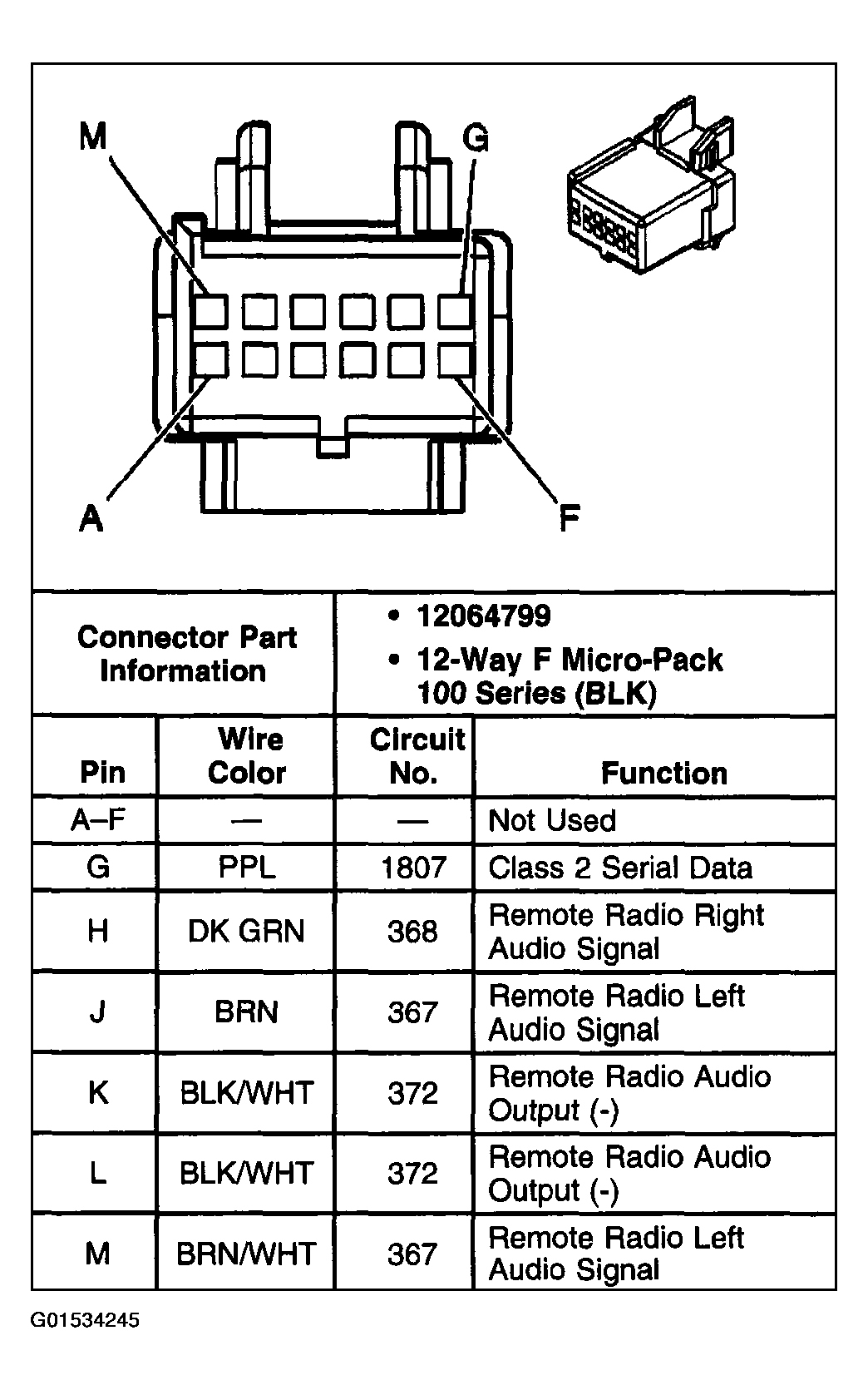

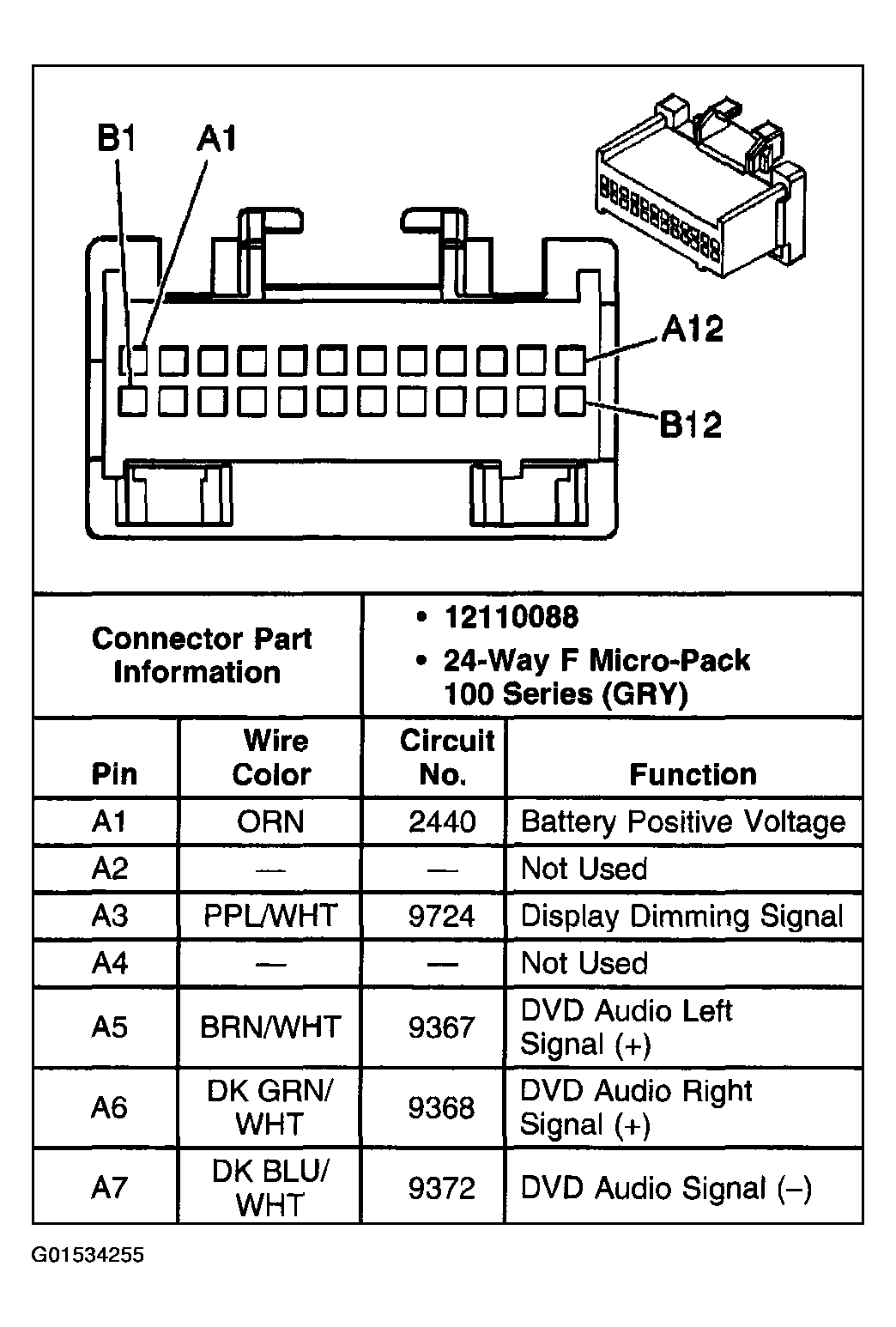

Fig 1: Radio C1 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

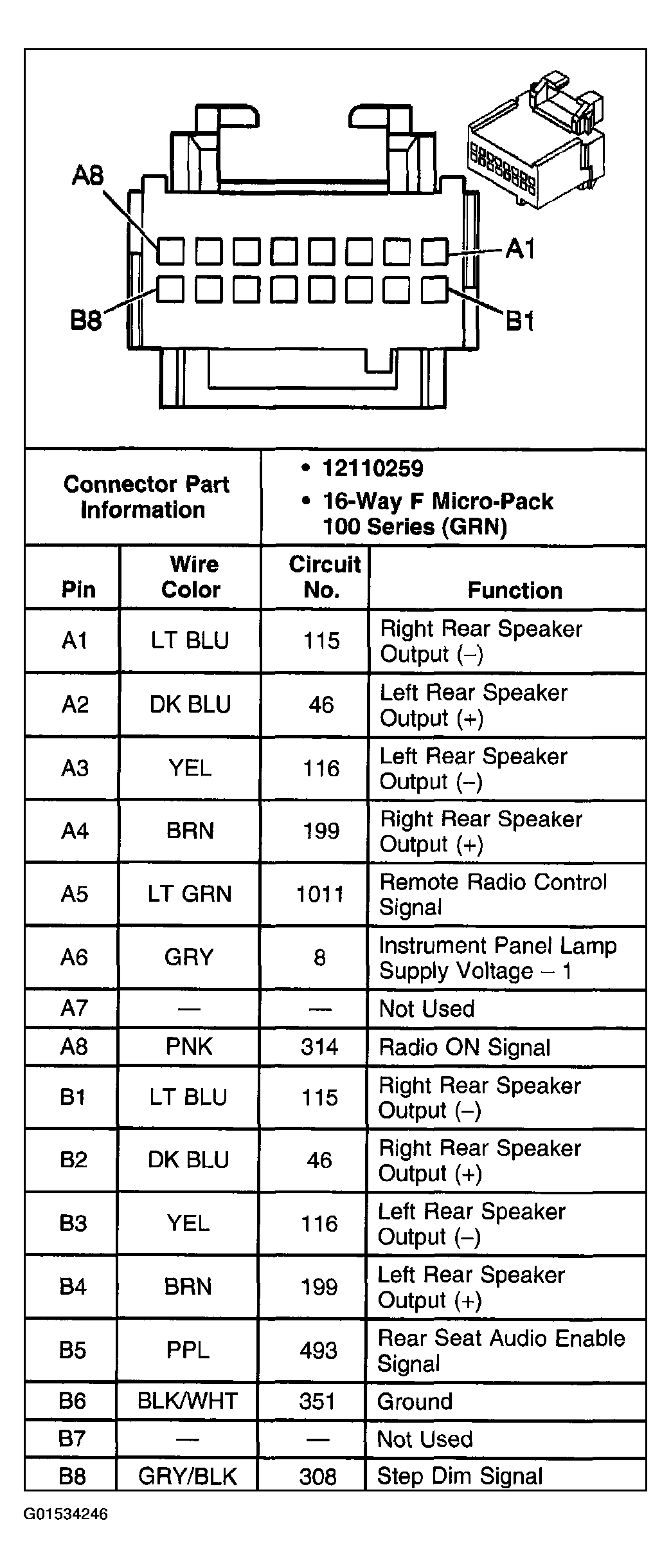

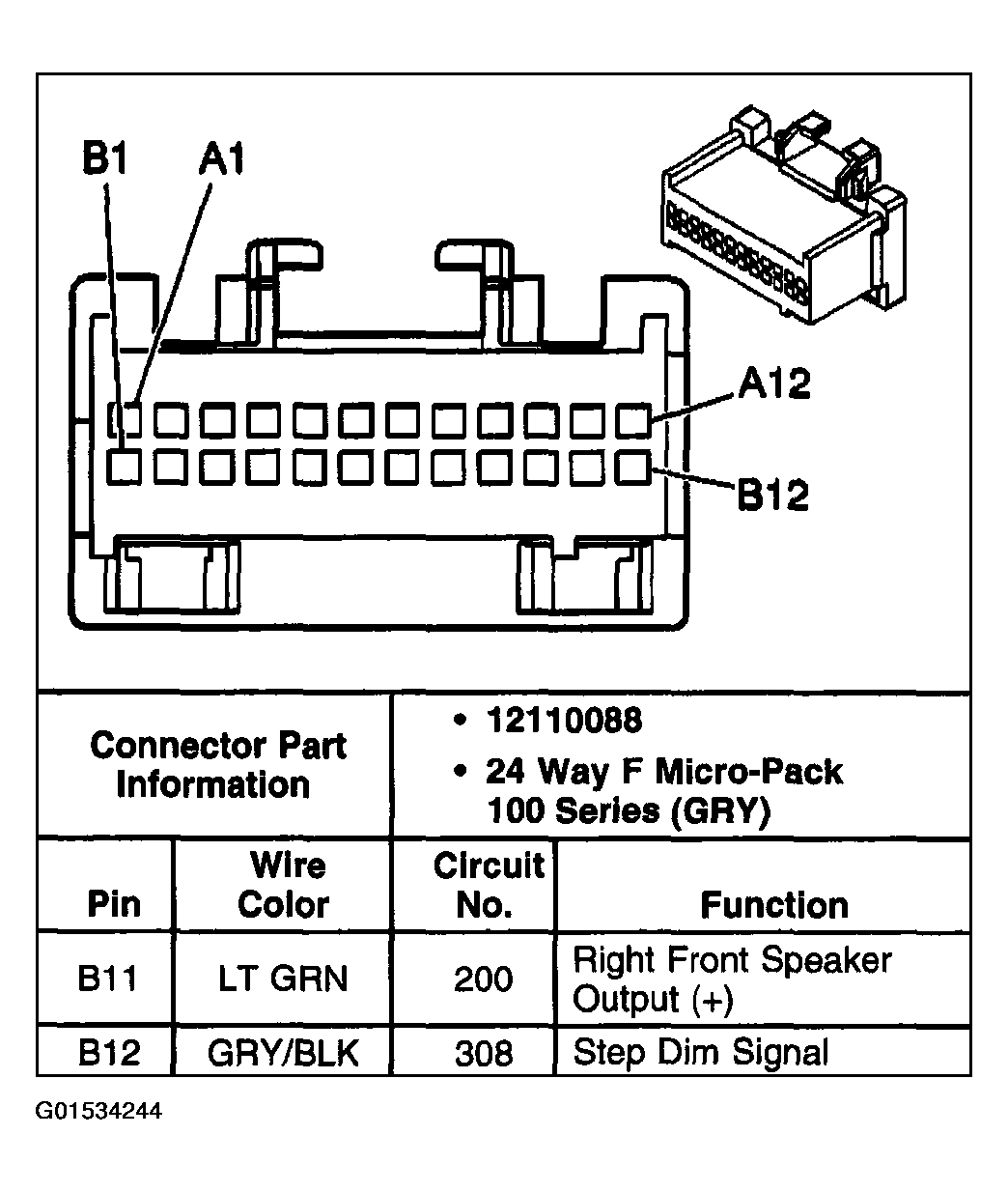

Fig 2: Radio C1 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

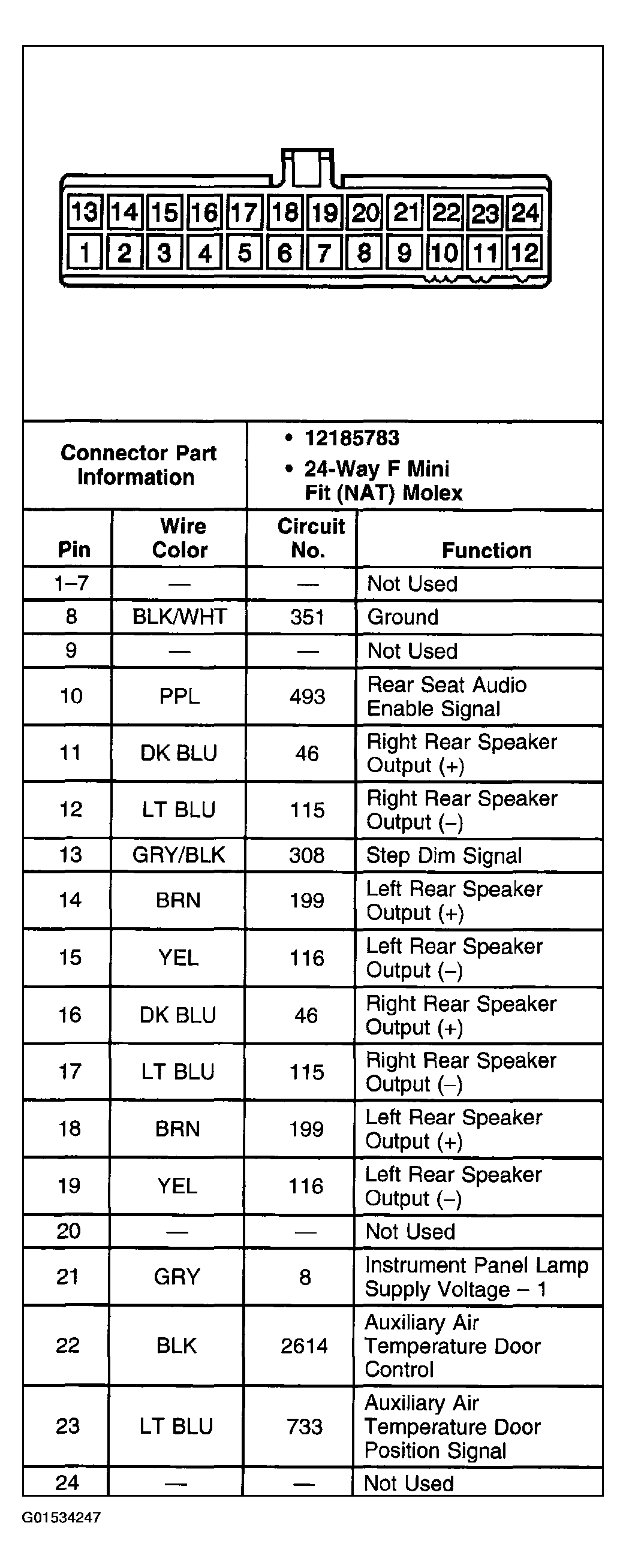

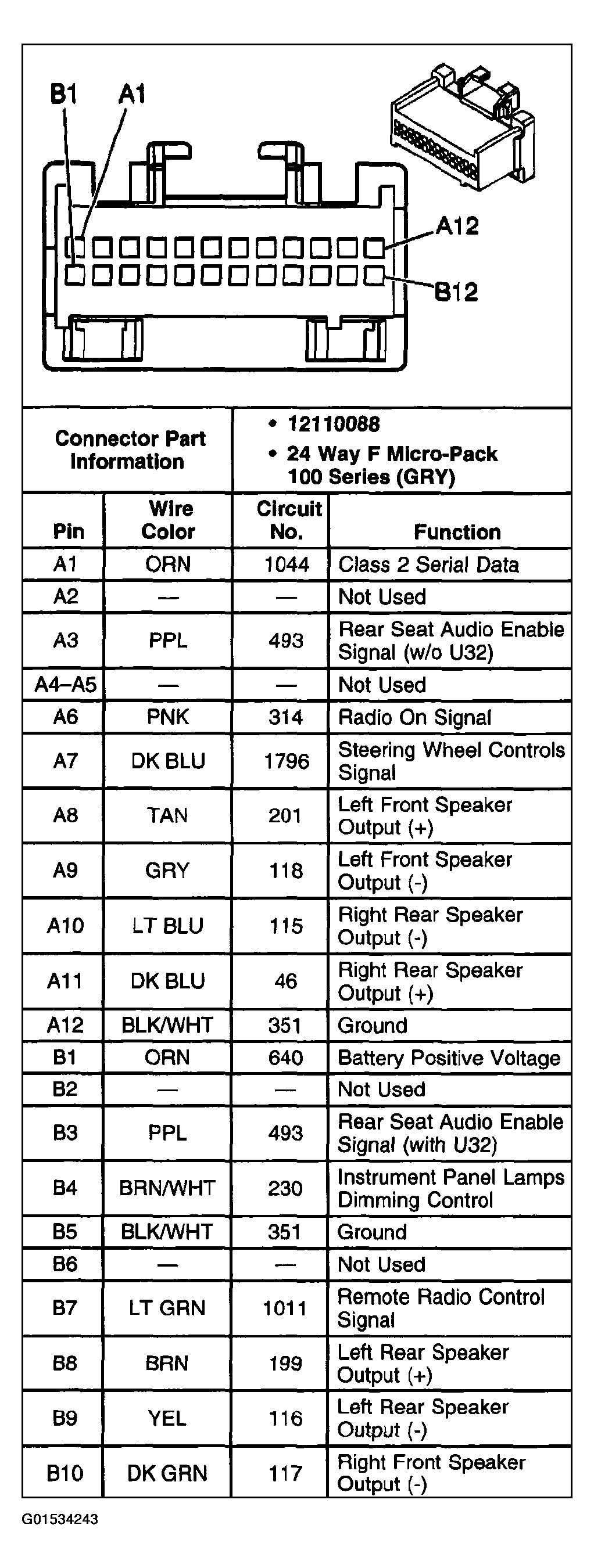

Fig 3: Radio (w/UE1) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Radio Seat Audio (RSA) Control Connector End View
Courtesy of GENERAL MOTORS CORP.

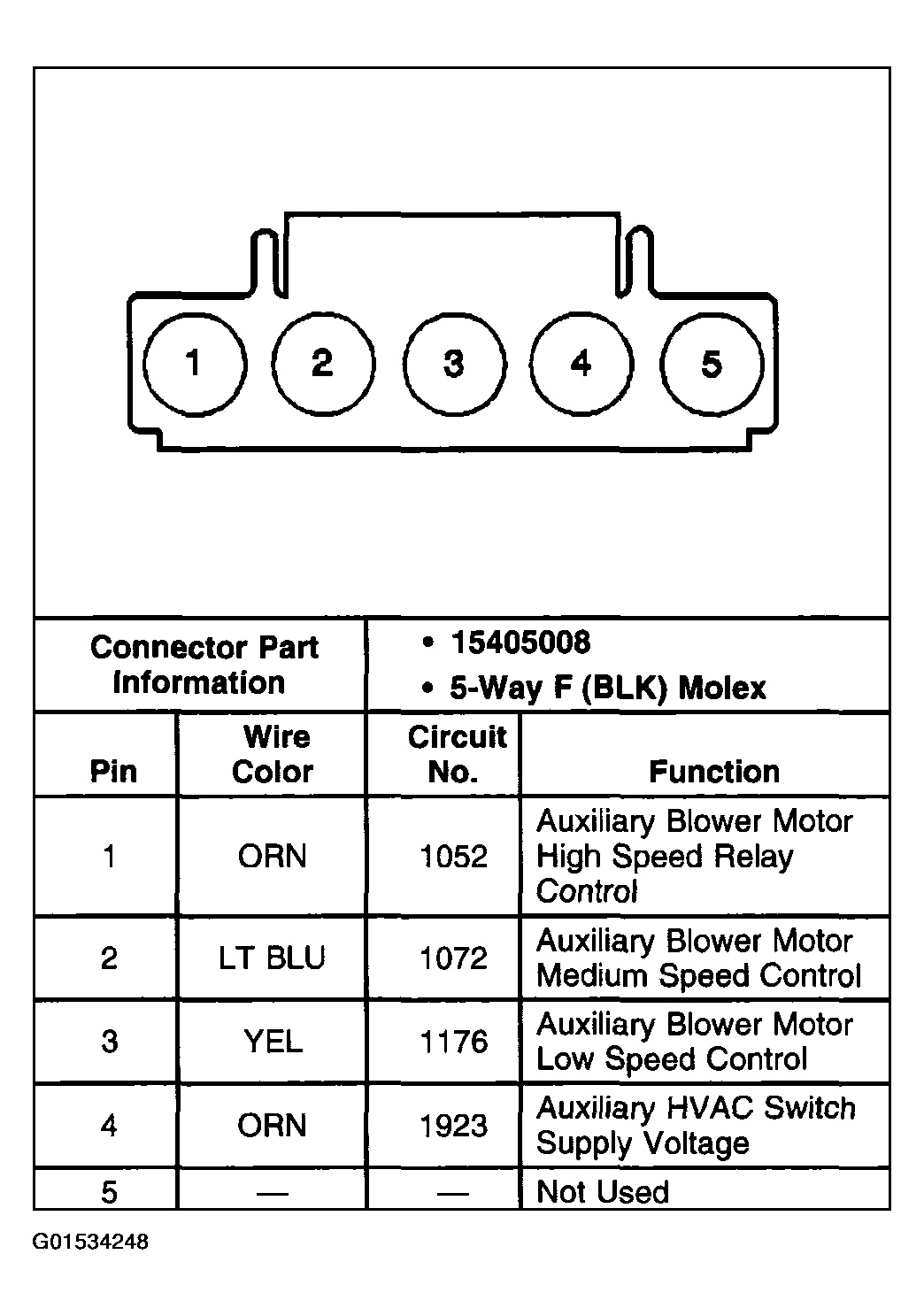

Fig 5: Rear Video/Audio/HVAC Module - C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

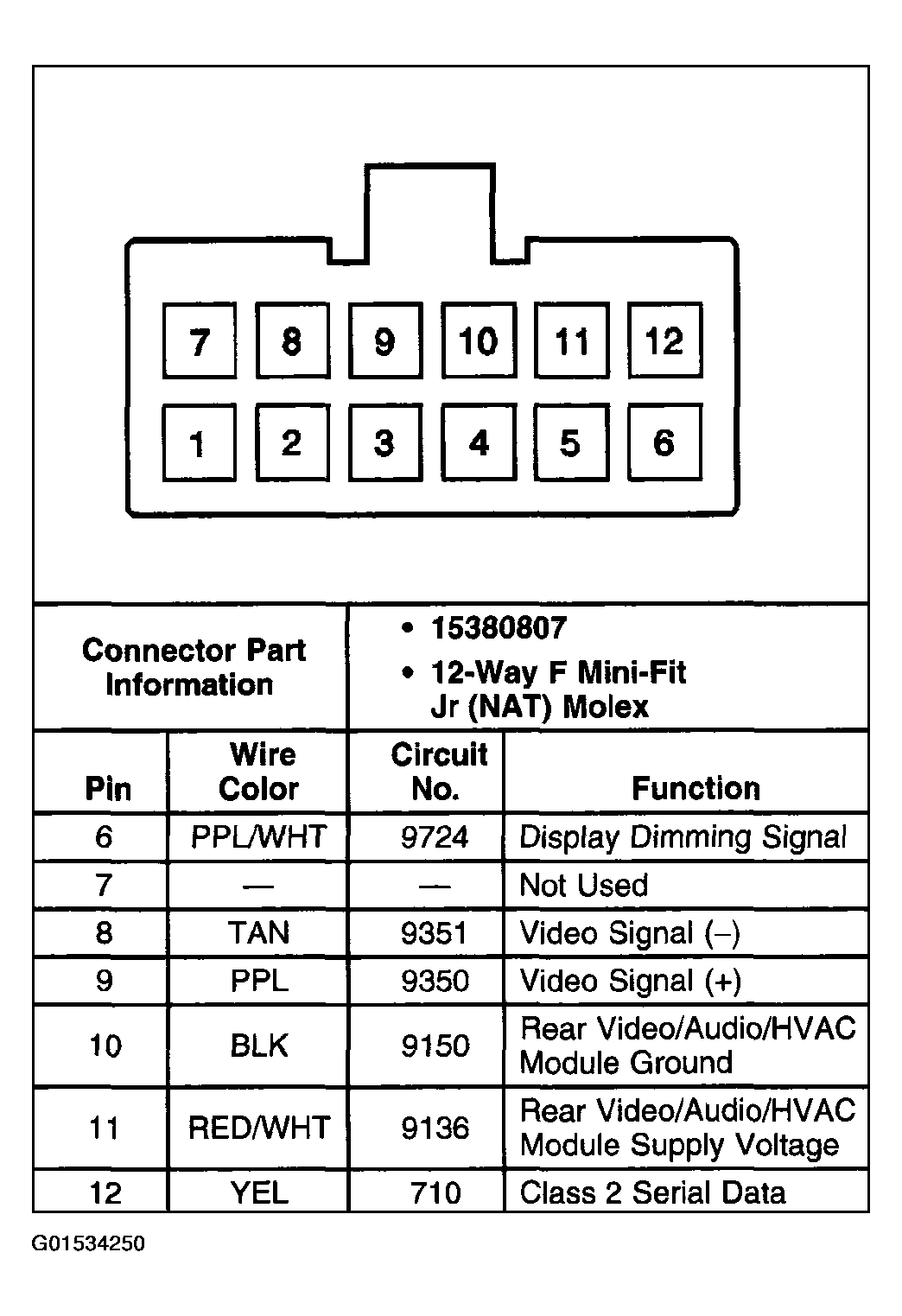

Fig 6: Rear Video/Audio/HVAC Module - C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

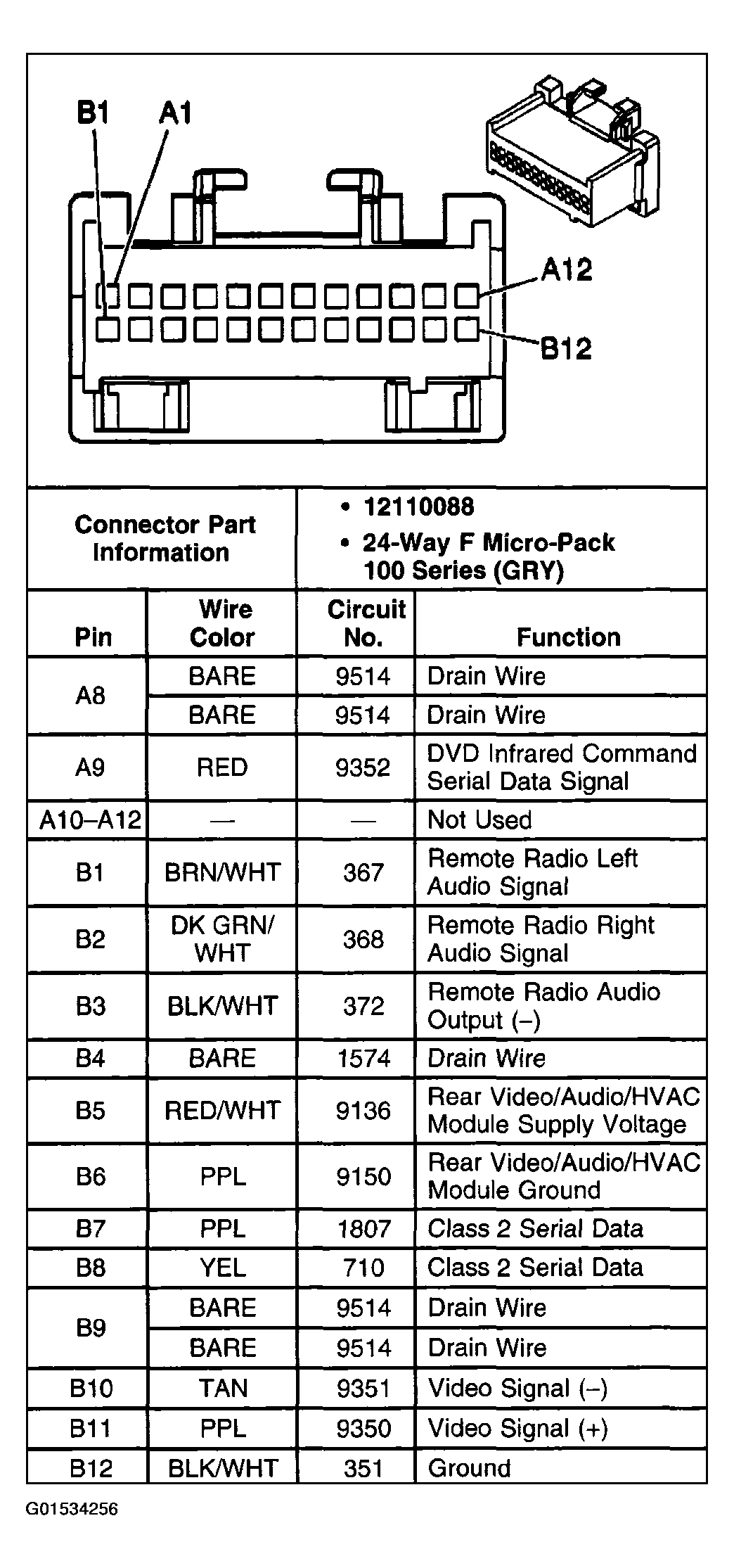

Fig 7: Rear Video/Audio/HVAC Module - C3 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Video/Audio/HVAC Module - C3 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Speaker - LF Door Connector End View
Courtesy of GENERAL MOTORS CORP.

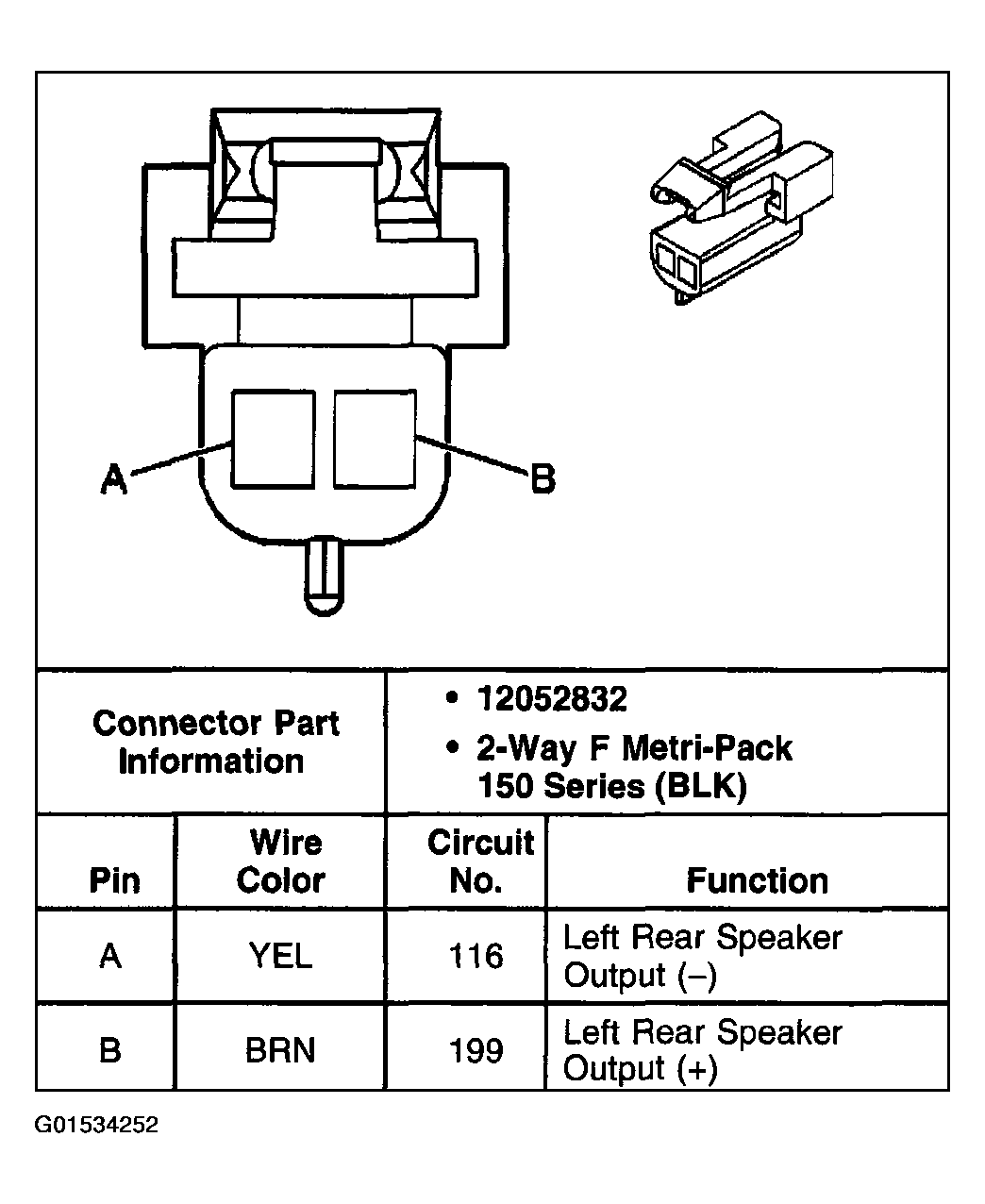

Fig 10: Speaker - LR Liftgate Connector End View
Courtesy of GENERAL MOTORS CORP.

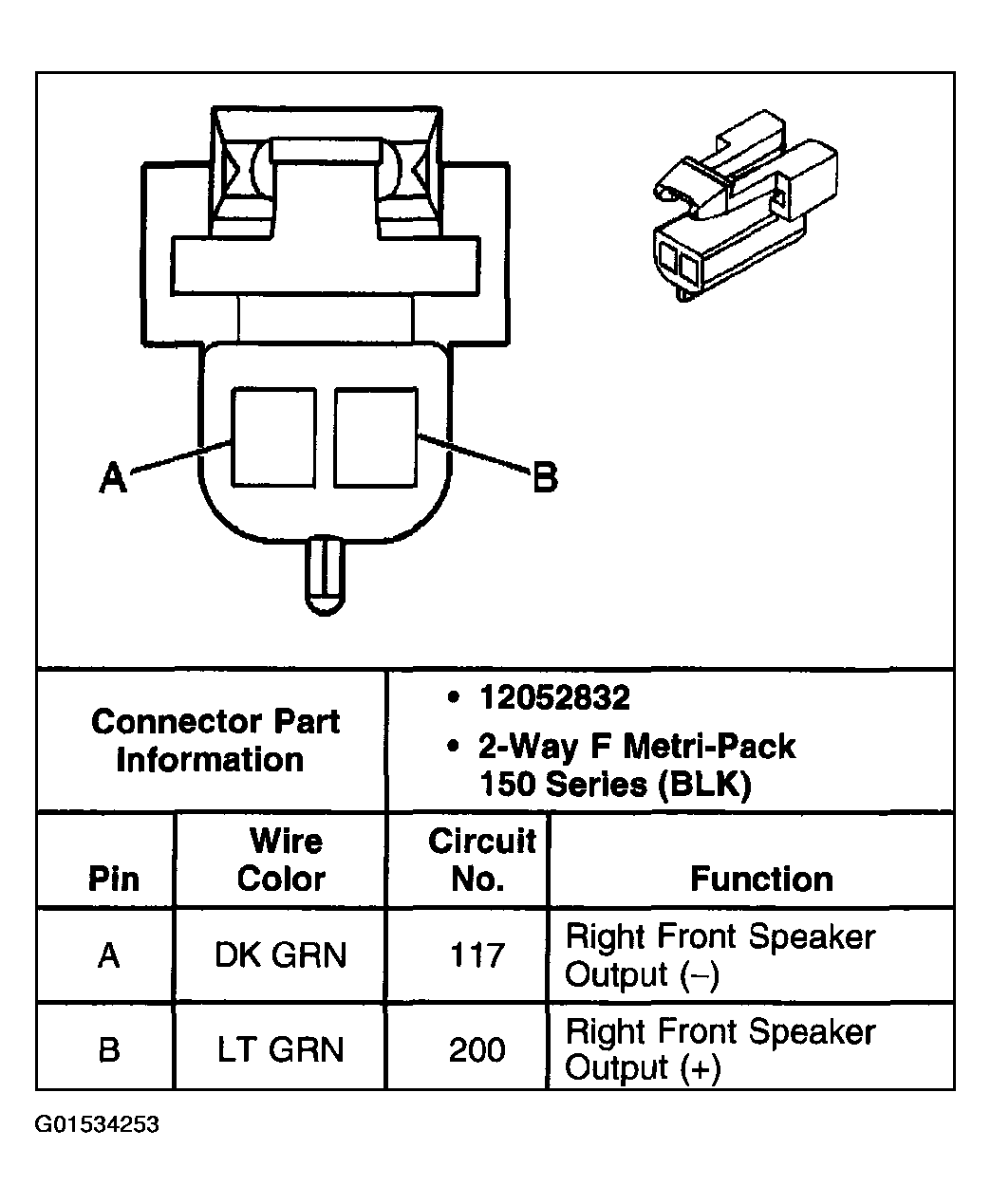

Fig 11: Speaker - RF Door Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 12: Speaker - RR Liftgate Connector End View
Courtesy of GENERAL MOTORS CORP.

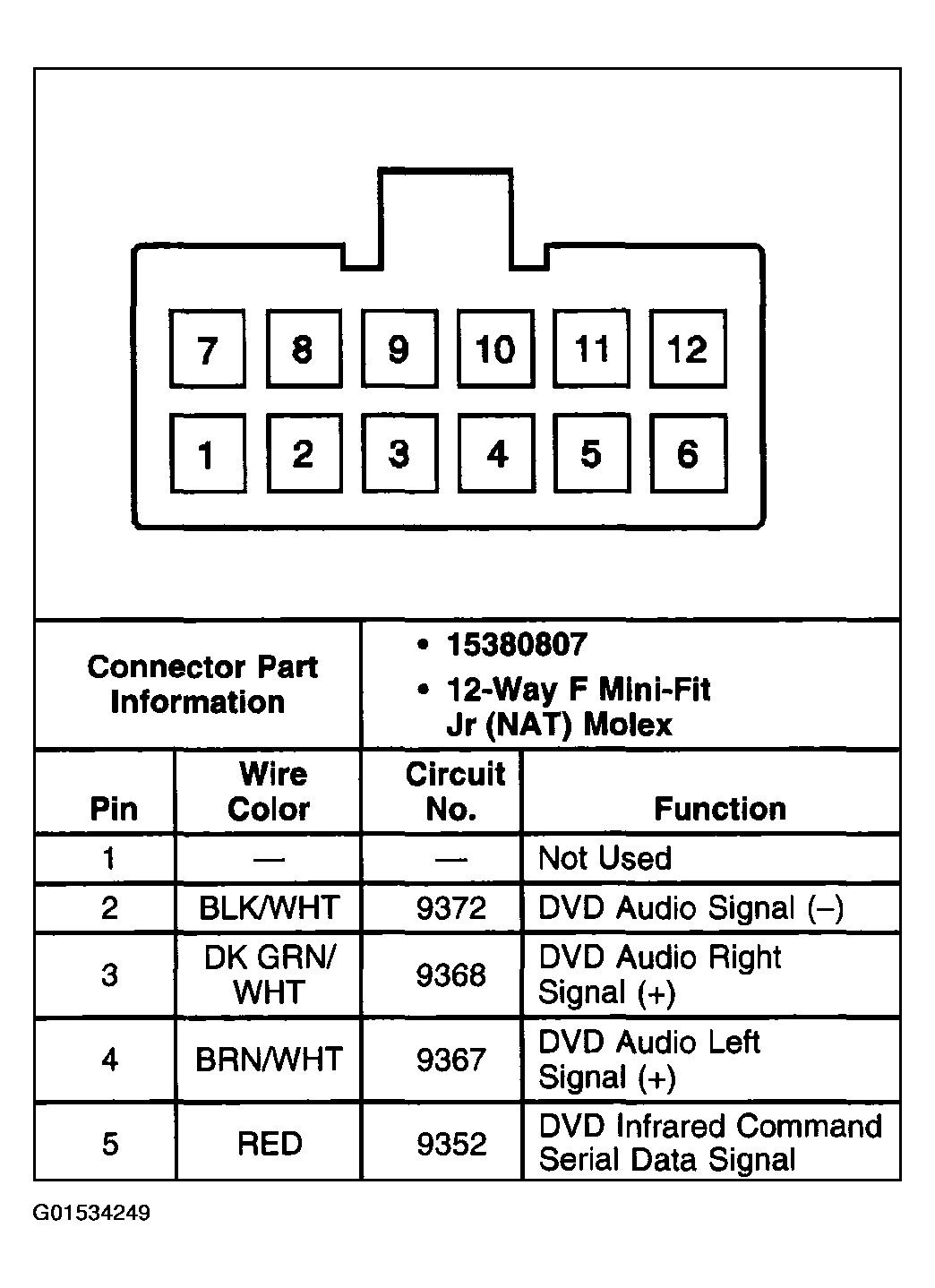

Fig 13: Video Disc Player Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Video Disc Player Connector End View (2 Of 2)
