Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors to the DVD player.

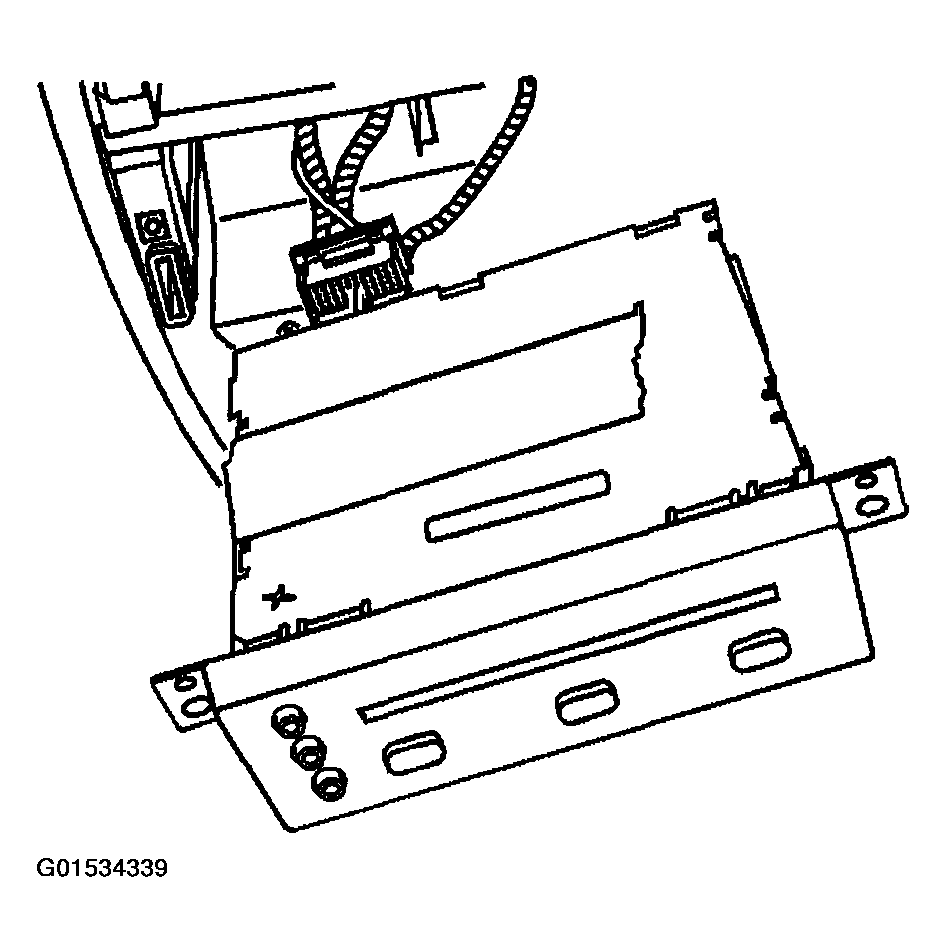

Fig 1: Connecting Electrical Connectors To DVD Player
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Slide the DVD player inward and fasten with screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the bezel to the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE .

Fig 2: Installing Bezel To Floor Console
Courtesy of GENERAL MOTORS CORP.
