Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors to the console.

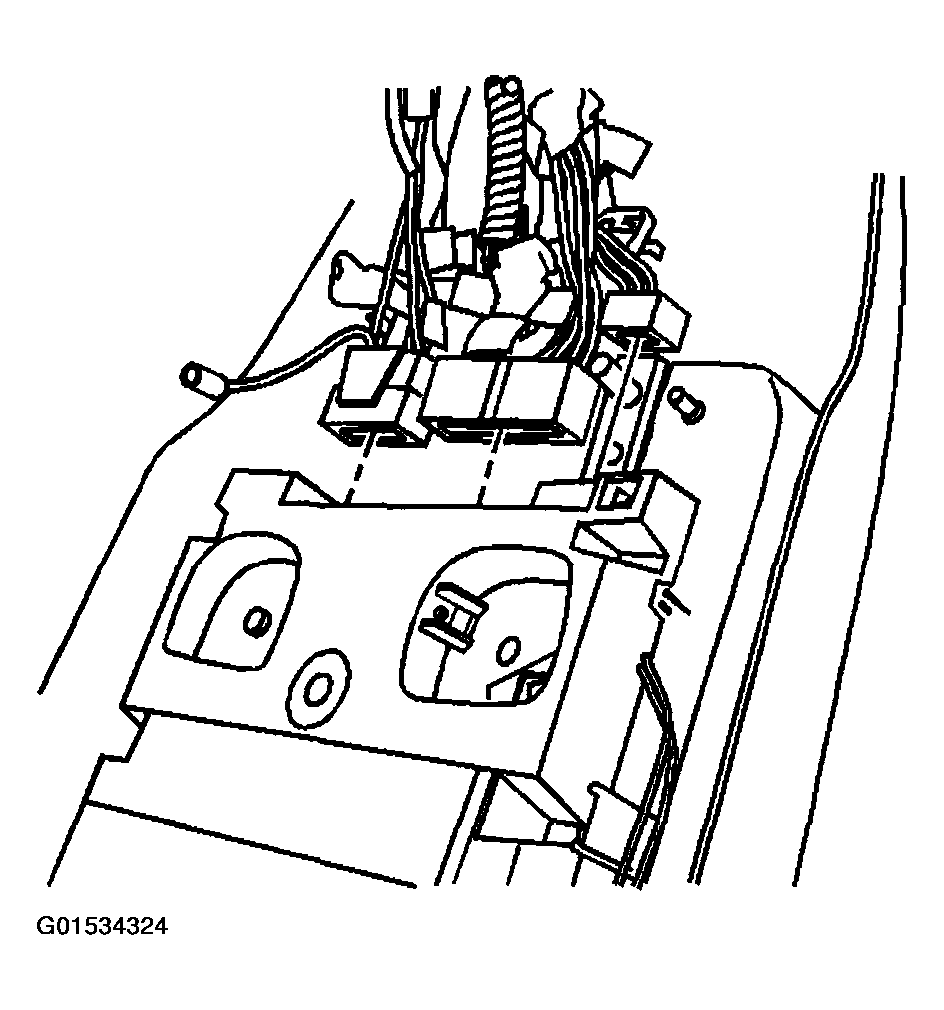

Fig 1: Connecting Electrical Connectors To Console
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the dome light.
Tighten

Tighten the screws to 2 N.m (18 lb in).

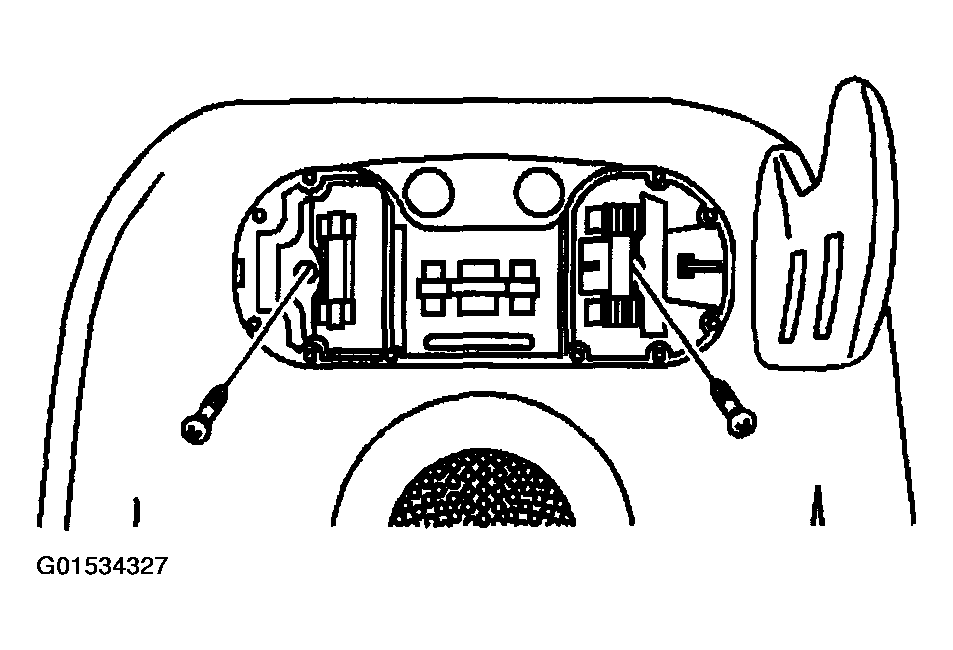

Fig 2: Installing Screws To Dome Light
Courtesy of GENERAL MOTORS CORP.
Install the screws to the rear of the DVD screen.
Tighten

Tighten the screws to 2 N.m (18 lb in).

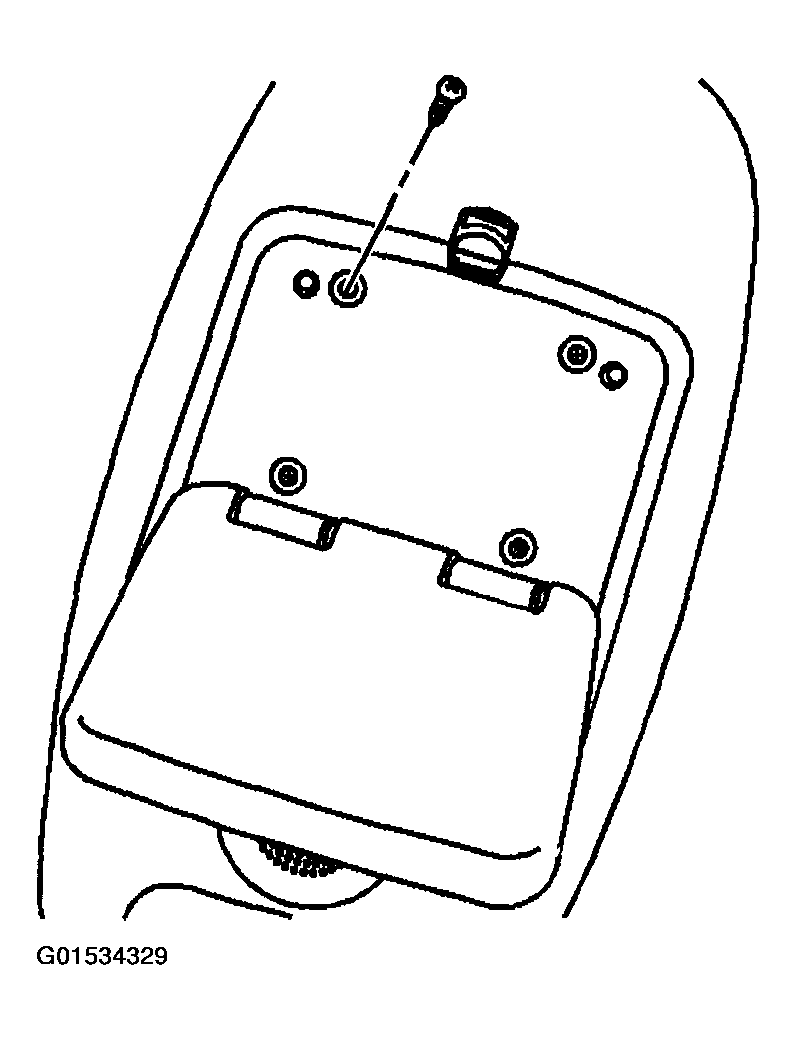

Fig 3: Installing Screws To Rear Of DVD Screen
Courtesy of GENERAL MOTORS CORP.
Install the bulbs in the dome light.

Fig 4: Installing Bulbs In Dome Light
Courtesy of GENERAL MOTORS CORP.
Install the dome light lens cover.

Fig 5: Installing Dome Light Lens Cover
Courtesy of GENERAL MOTORS CORP.
Raise the screen and lock the screen into place.

Fig 6: Raising Screen And Lock Screen Into Place
Courtesy of GENERAL MOTORS CORP.
