Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio and antenna cable connectors to the radio.

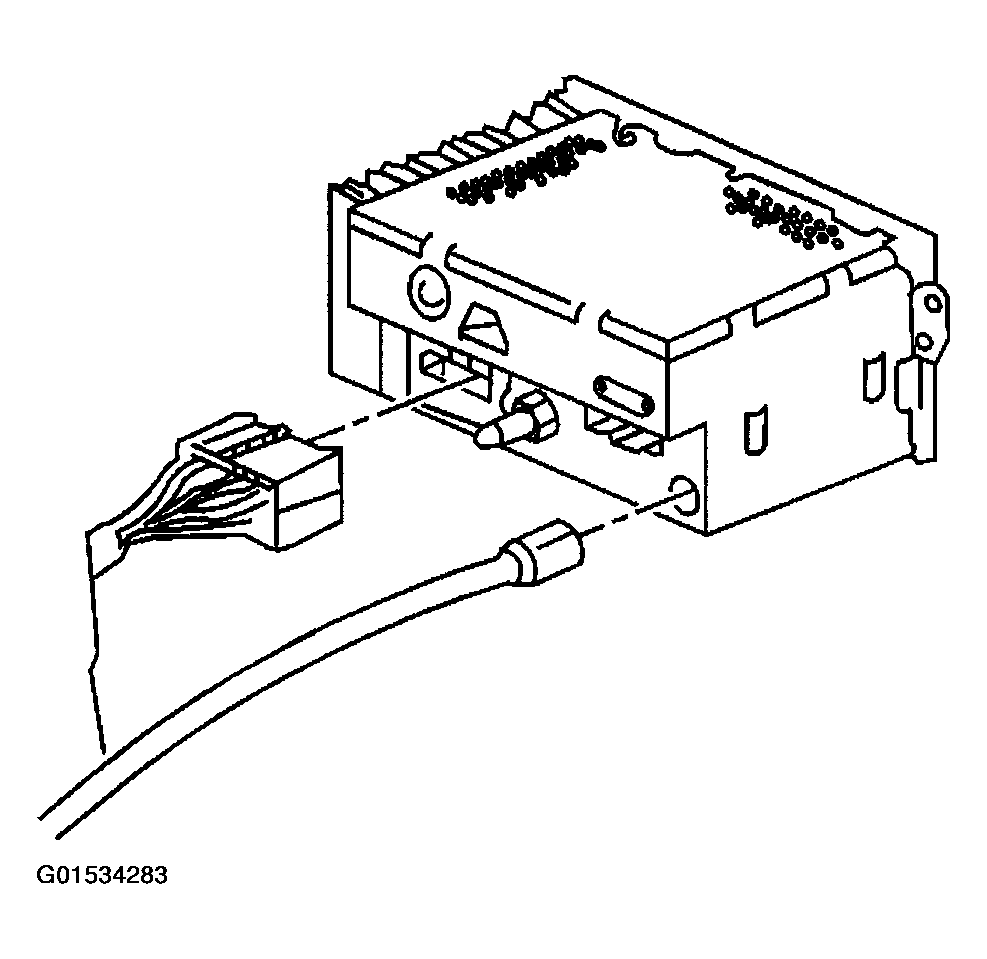

    Fig 1: Connecting Electrical/Audio And Antenna Cable Connectors To Radio
    G01534283Courtesy of GENERAL MOTORS CORP.
  2. Install the radio into the I/P center support bracket.

    Align the radio locator tab into the I/P center support bracket locator hole.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts/screws to the radio.

    Tighten

    Tighten the bolts/screws to 2.5 N-m (22 lb in).

  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
  5. Perform the radio set up procedure. Refer to RADIO SETUP   .
    Fig 2: Installing Bolts/Screws To Radio
    G01534284Courtesy of GENERAL MOTORS CORP.
