Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the bracket between the roof and the headliner.

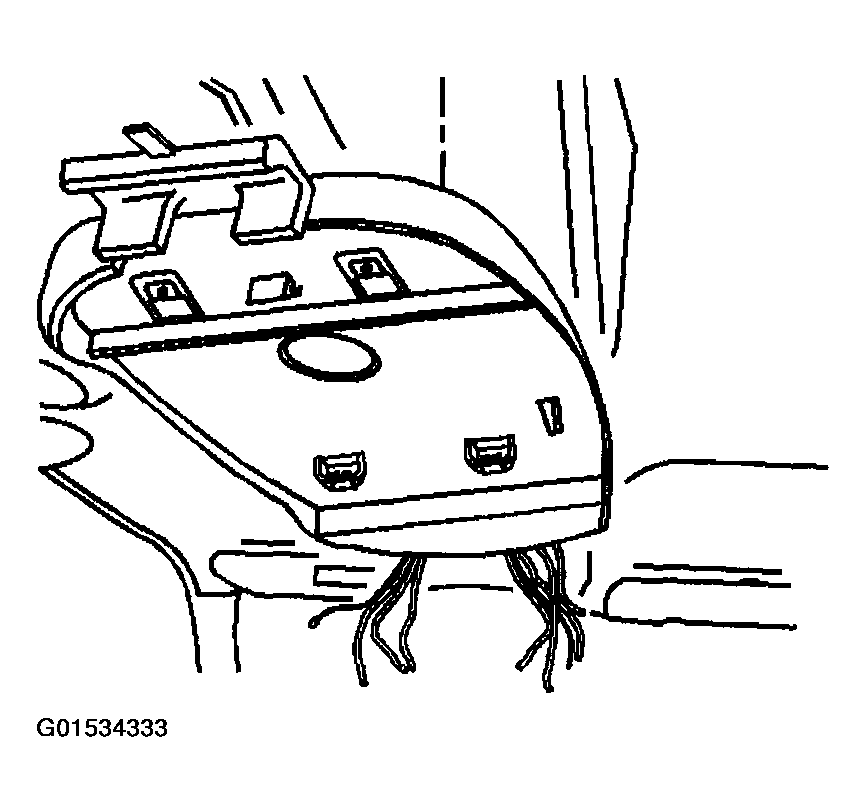

Fig 1: Installing Bracket Between Roof And Headliner
Courtesy of GENERAL MOTORS CORP.
Slide the bracket inward until the locking tab and screw holes align.

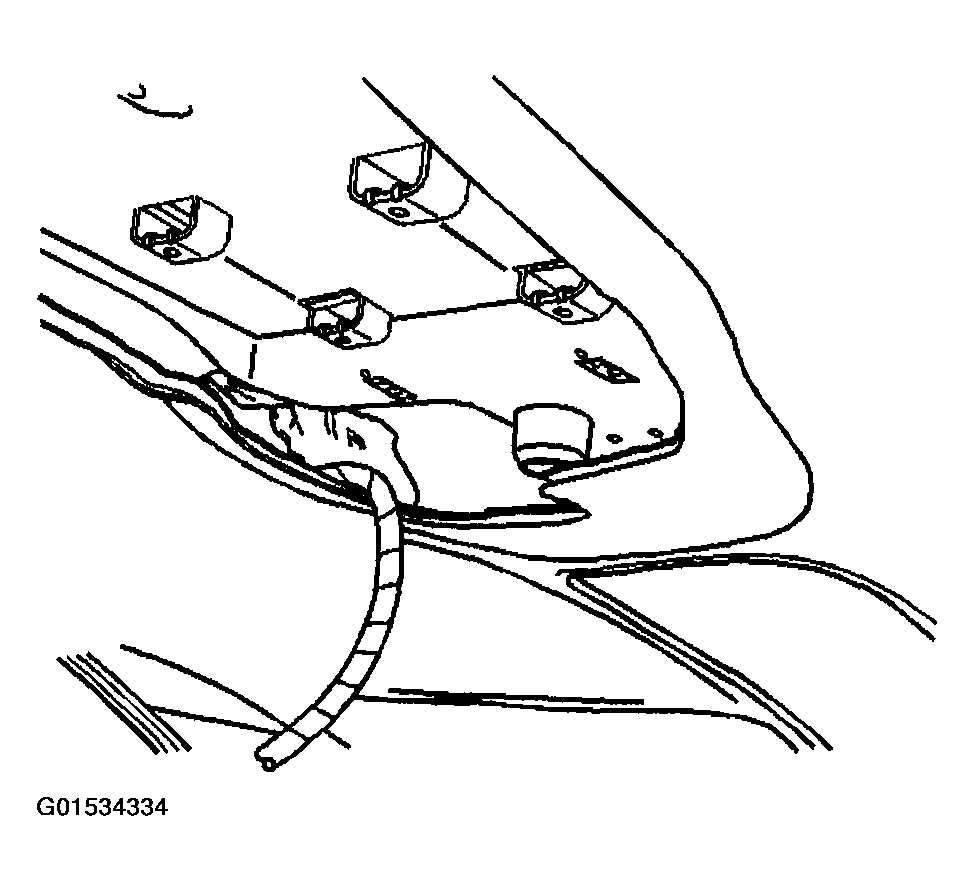

Fig 2: Sliding Bracket Inward
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws into the VES bracket.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the VES overhead console. Refer to OVERHEAD CONSOLE - VES REPLACEMENT .

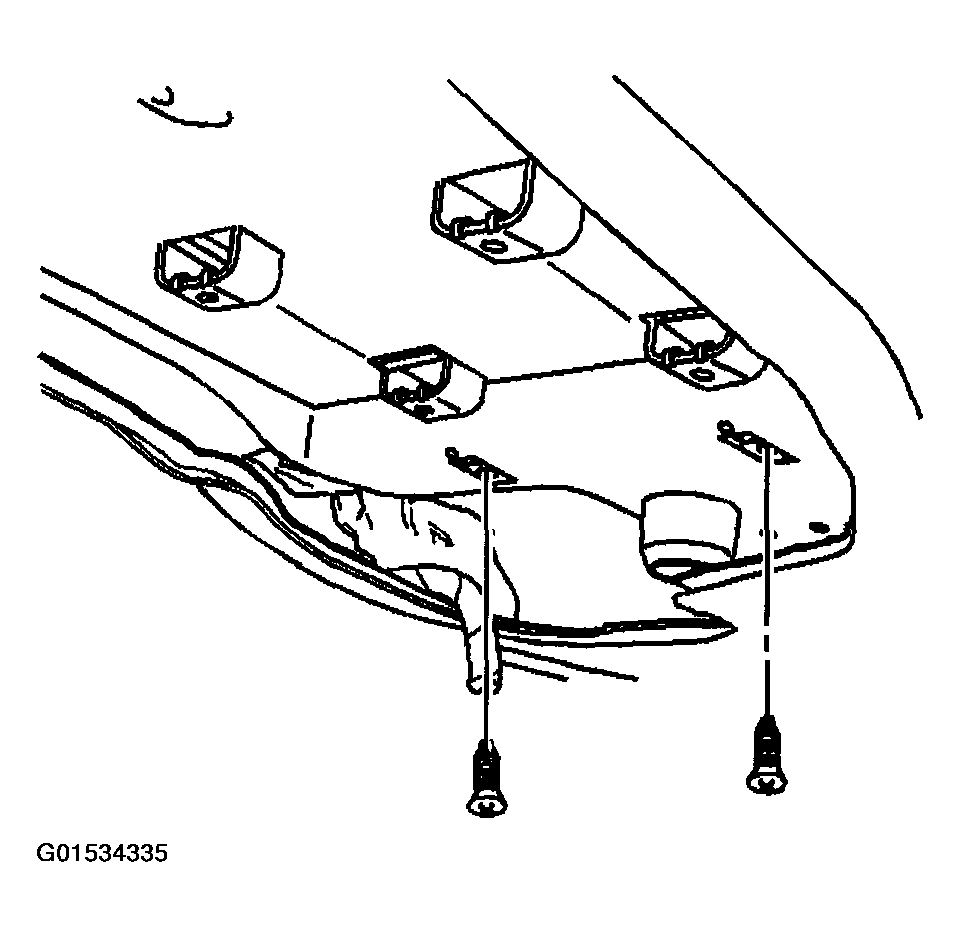

Fig 3: Installing Screws Into VES Bracket
Courtesy of GENERAL MOTORS CORP.
Install the forward overhead console cover.

Fig 4: Installing Forward Overhead Console Cover
Courtesy of GENERAL MOTORS CORP.
