Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

If you are using an exchange radio, perform the following additional steps;
1. 1.1. Install the driver information display switch bracket (1).
2. 1.2. Install one 16 mm (0.63 in) plastic locating pin and clip stud to the rear of the radio.
3. 1.3. Install the 2 brackets (2) to both sides of the radio and heater/AC control assembly.
4. Install the mounting bracket fasteners (3).
  Tighten

  Tighten the fasteners to 6 N.m (53 lb in).

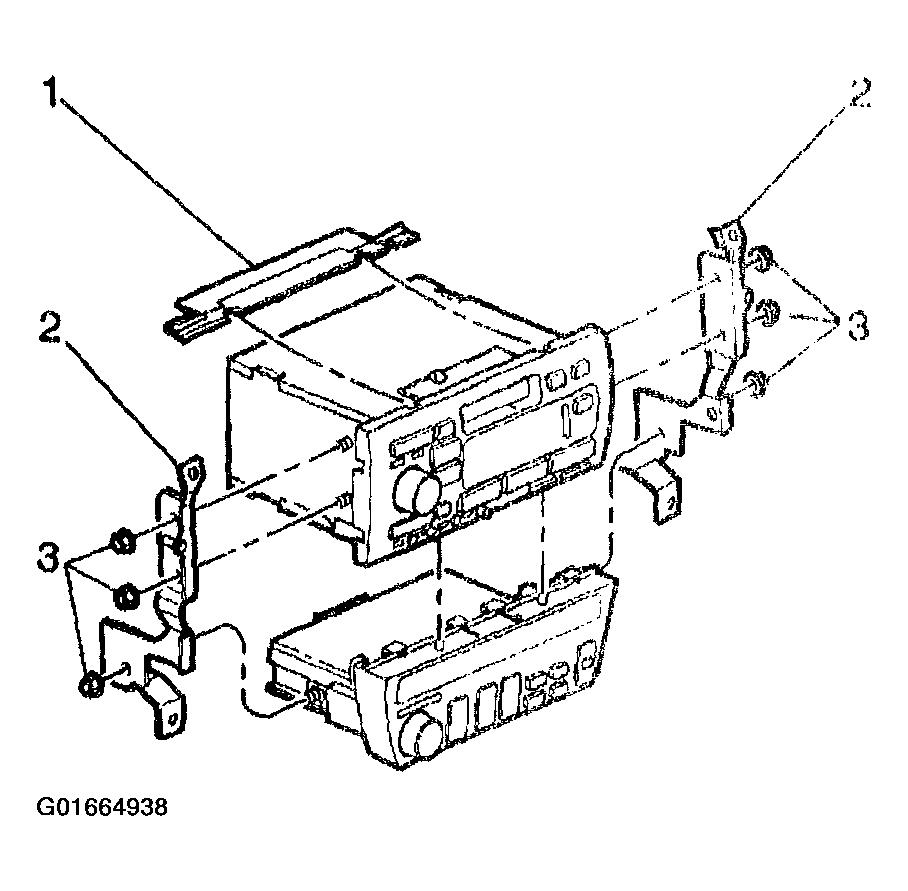

  Fig 1: Identifying Driver Information Display Switch Bracket
  Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (1, 2, 3).
Connect the antenna coaxial cable (4).

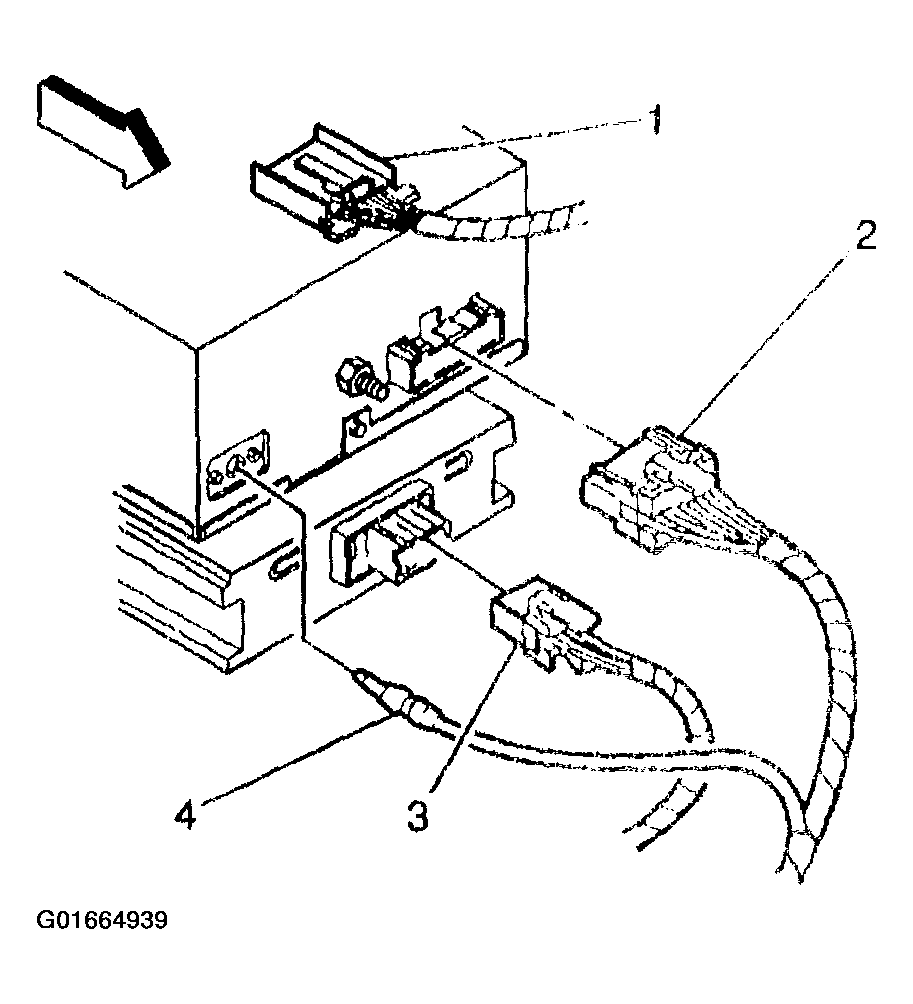

Fig 2: Identifying Electrical Connectors & Antenna Coaxial Cable
Courtesy of GENERAL MOTORS CORP.
Install the radio and heater A/C control assembly.
Install the fasteners (1).
Tighten

Tighten the fasteners to 2 N.m (18 lb in).
Install the DIC into the console opening. Refer to DRIVER INFORMATION CENTER SWITCH REPLACEMENT .
Install the ashtray. Refer to ASHTRAY REPLACEMENT .
Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE FRONT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .

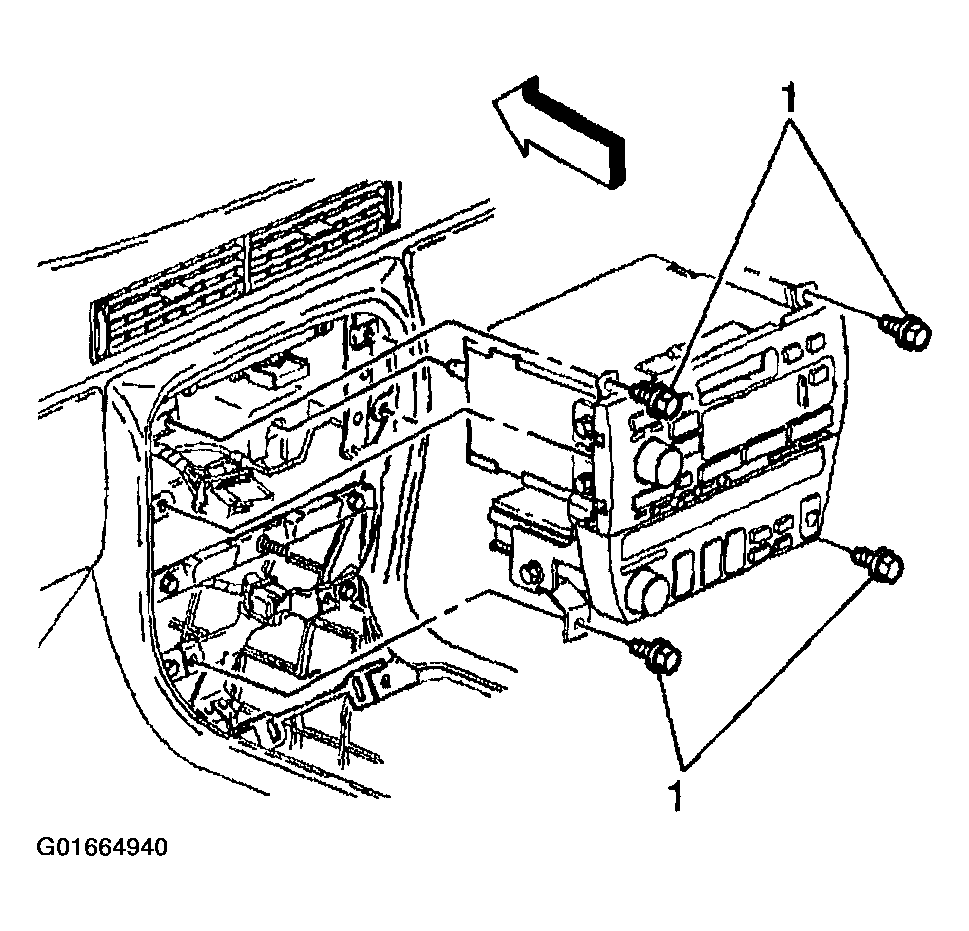

Fig 3: Identifying Fasteners
Courtesy of GENERAL MOTORS CORP.
