Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use the cruise control on slippery roads, steeply graded roads, or in heavy traffic of heavy or varying volume. Failure to follow these CAUTIONS could possibly cause you to loose control of the vehicle and result in damage to the vehicle and personal Injury.

Remove the cruise control cable from the retainer (1) at the left strut tower.

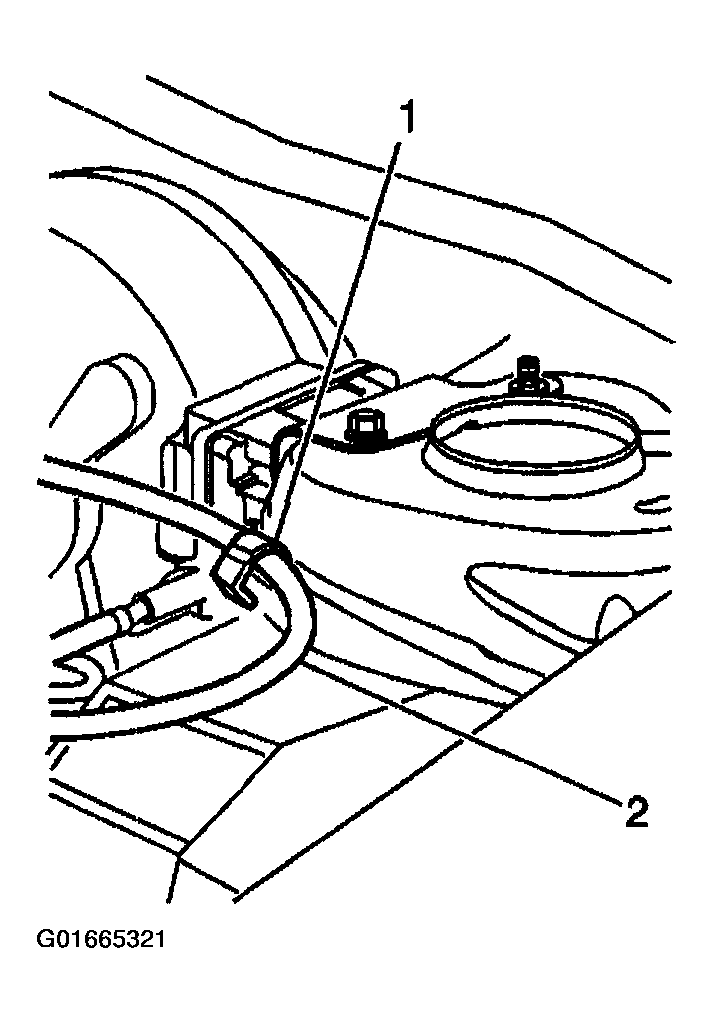

Fig 1: Cruise Control Cable & Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable retainer (1) from the throttle body cam.

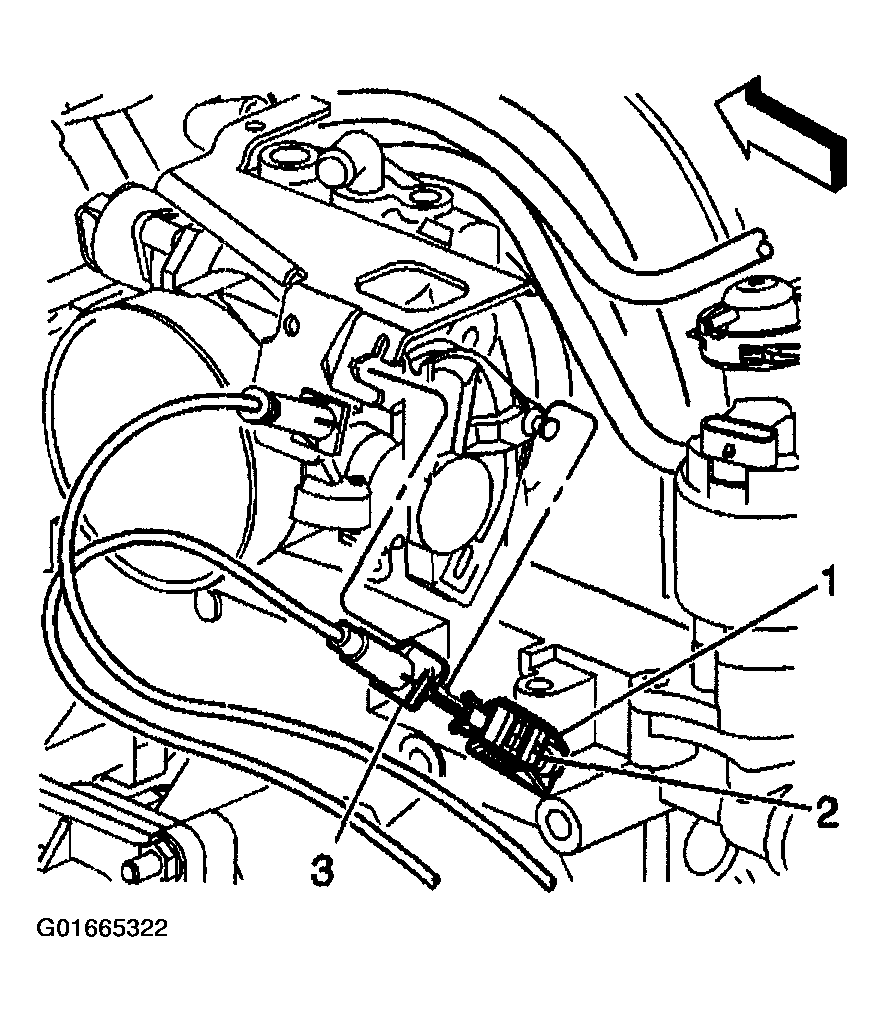

Fig 2: Cruise Control Cable Retainer
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable retainer (3) from the throttle body bracket.
Disconnect the cruise control cable (3) from the cruise control module (1). Rotate counter-clockwise the cable lock (3) until the cable disengages from the module housing (1).

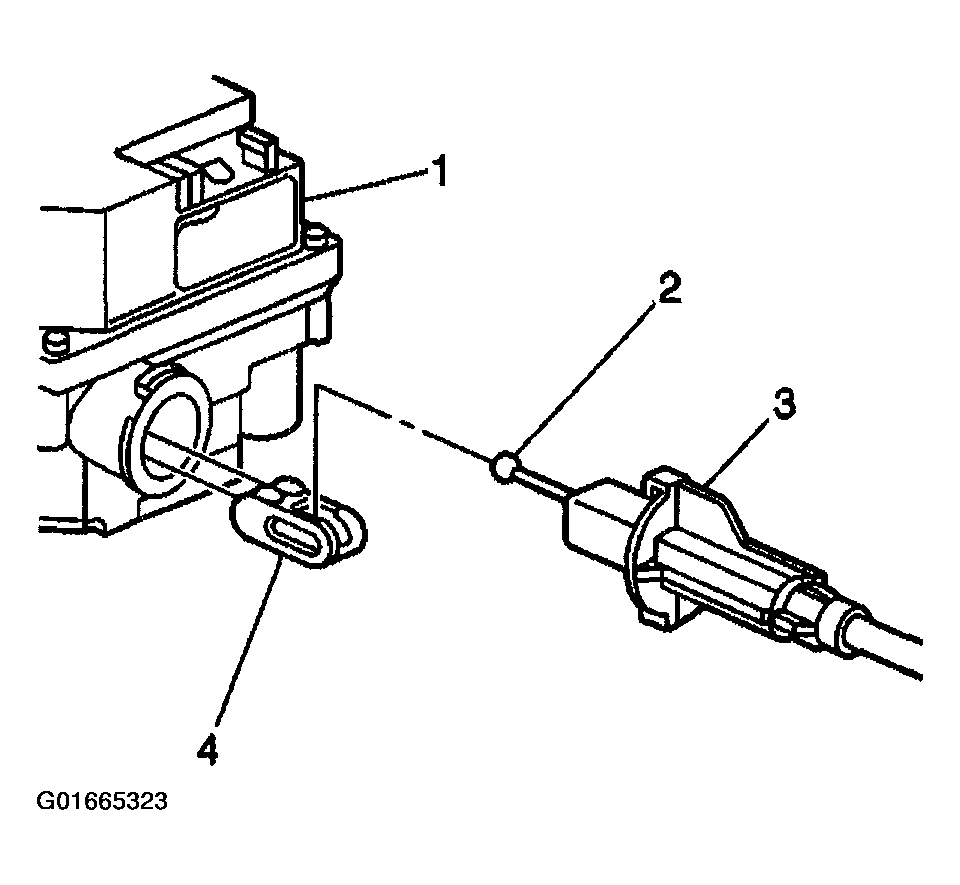

Fig 3: Cruise Control Cable & Module
Courtesy of GENERAL MOTORS CORP.
Release the cable (2) from the connector on the module cord (4).
Remove the cruise control cable.
